State-of-the-art medical devices connected to an absolutely reliable, functional and easy-to-operate supply system are fundamental prerequisites for ensuring life-sustaining measures for the patient. The Q100 ICU was developed for the flawless handling by care staff of all equipment requiring a power supply, and for the resulting treatment, care and monitoring of the patient. All the power and communication connections required in the patient room, as well as the medical gas outlets, are integrated here into a highly flexible modular system. The Q100 ICU wall system consists of rectangular supply profiles made of extruded aluminium with matching equipment rail profiles.

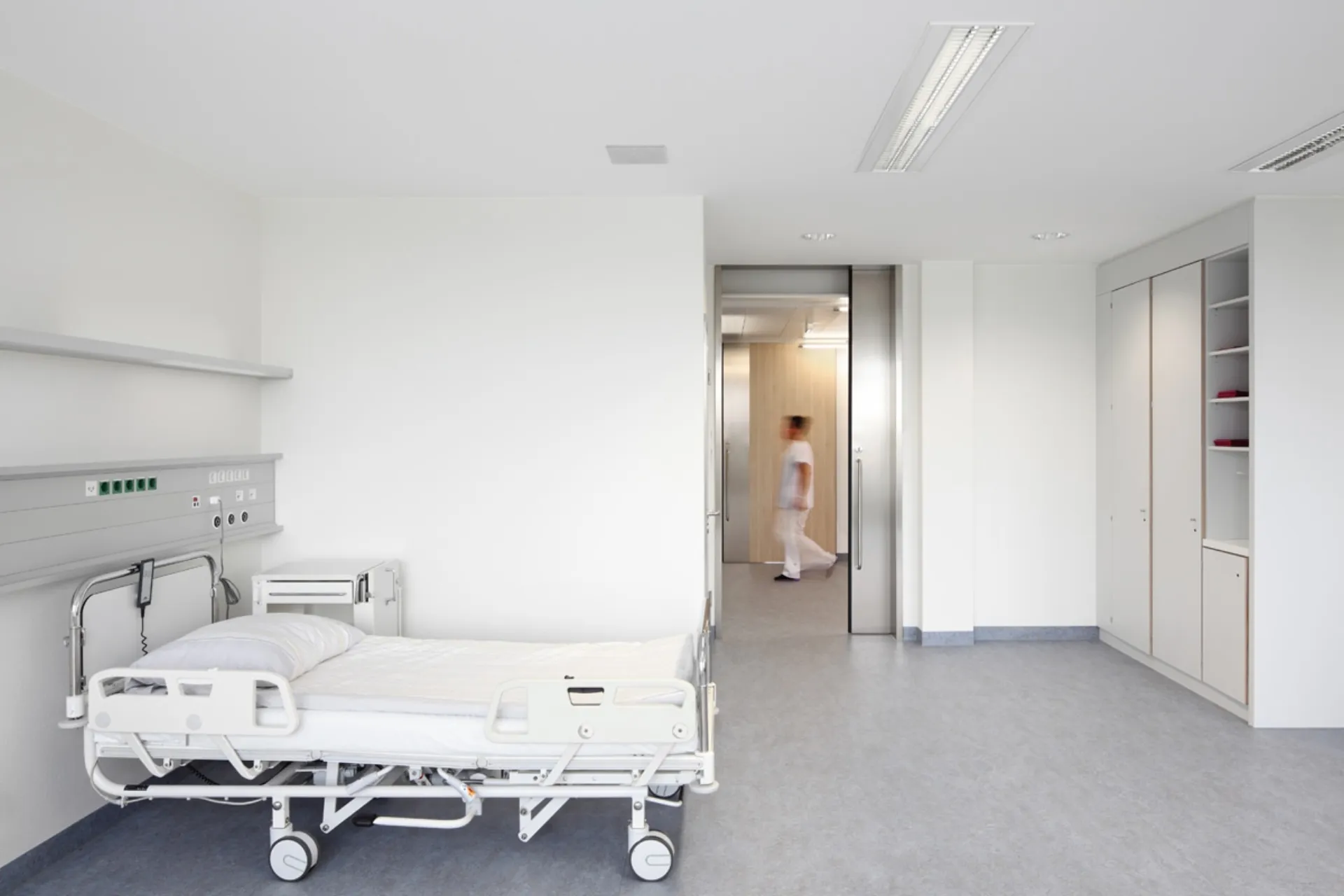

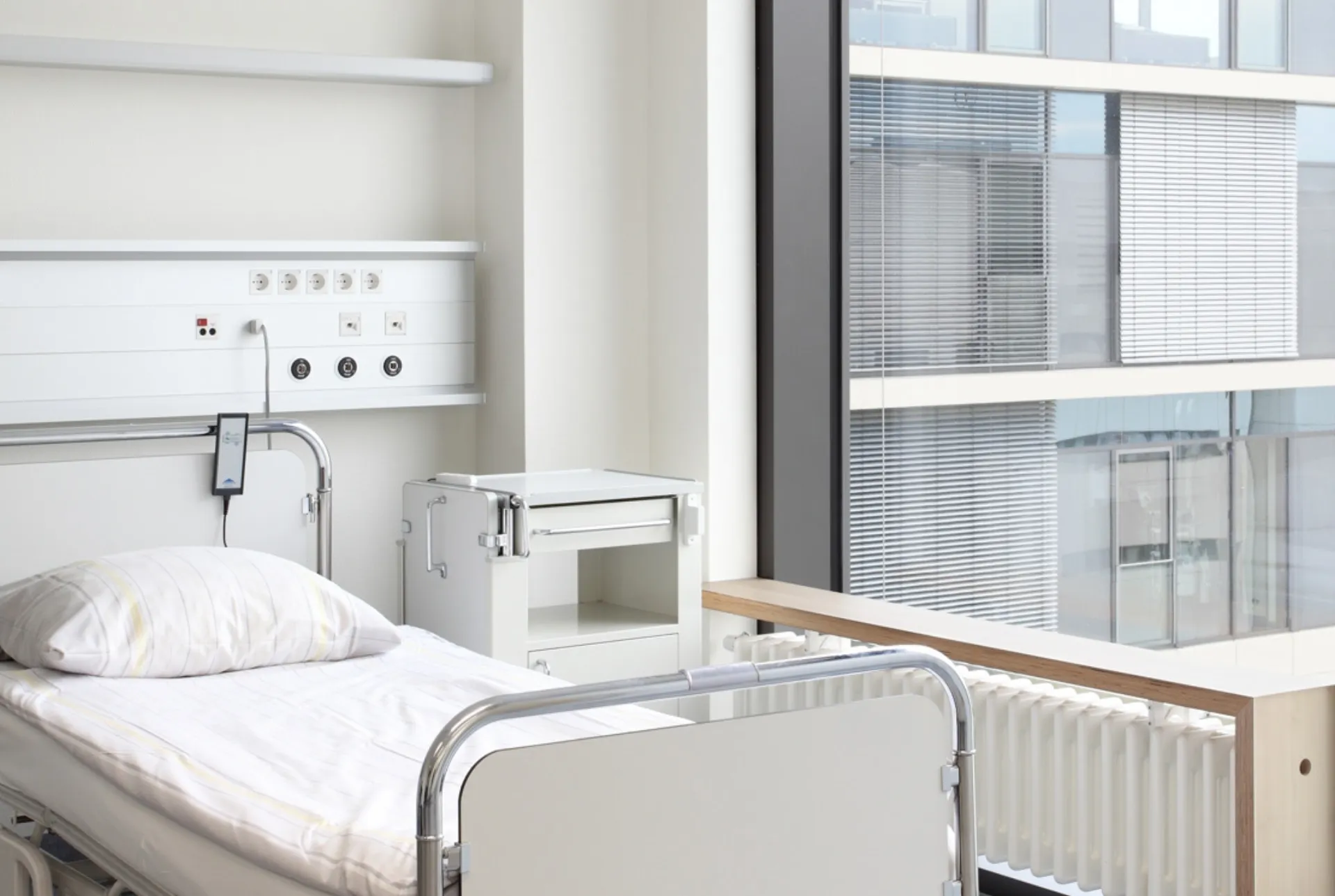

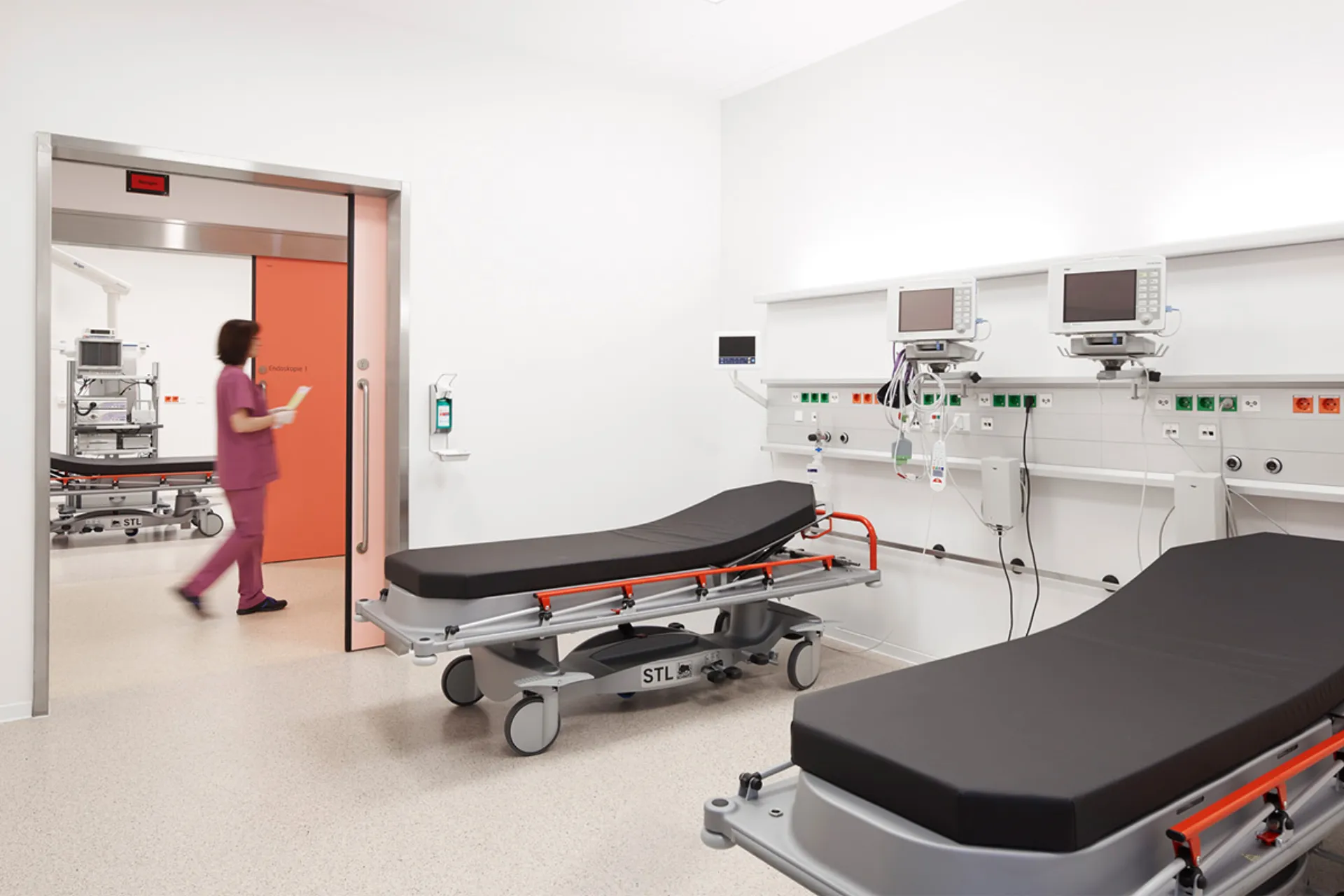

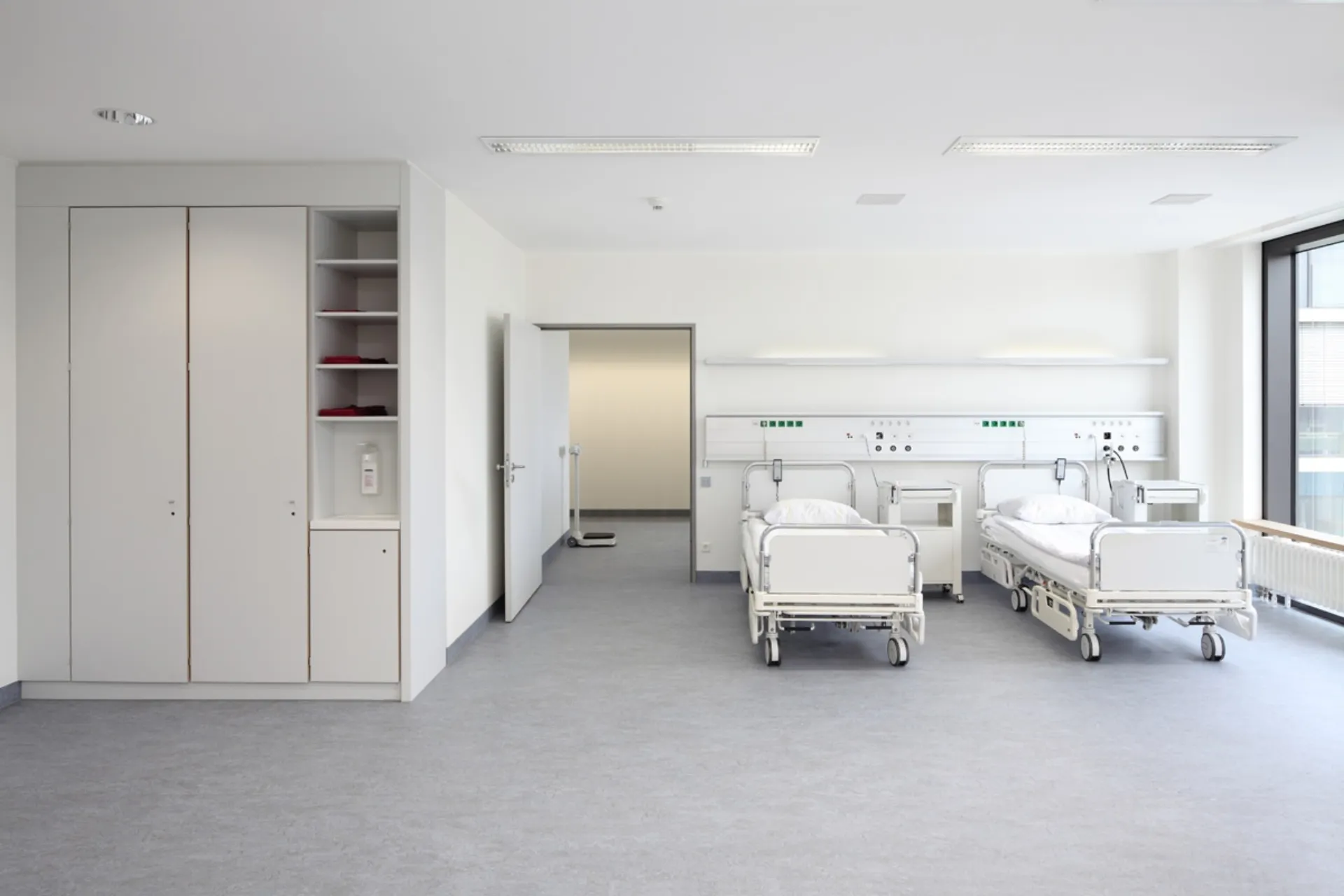

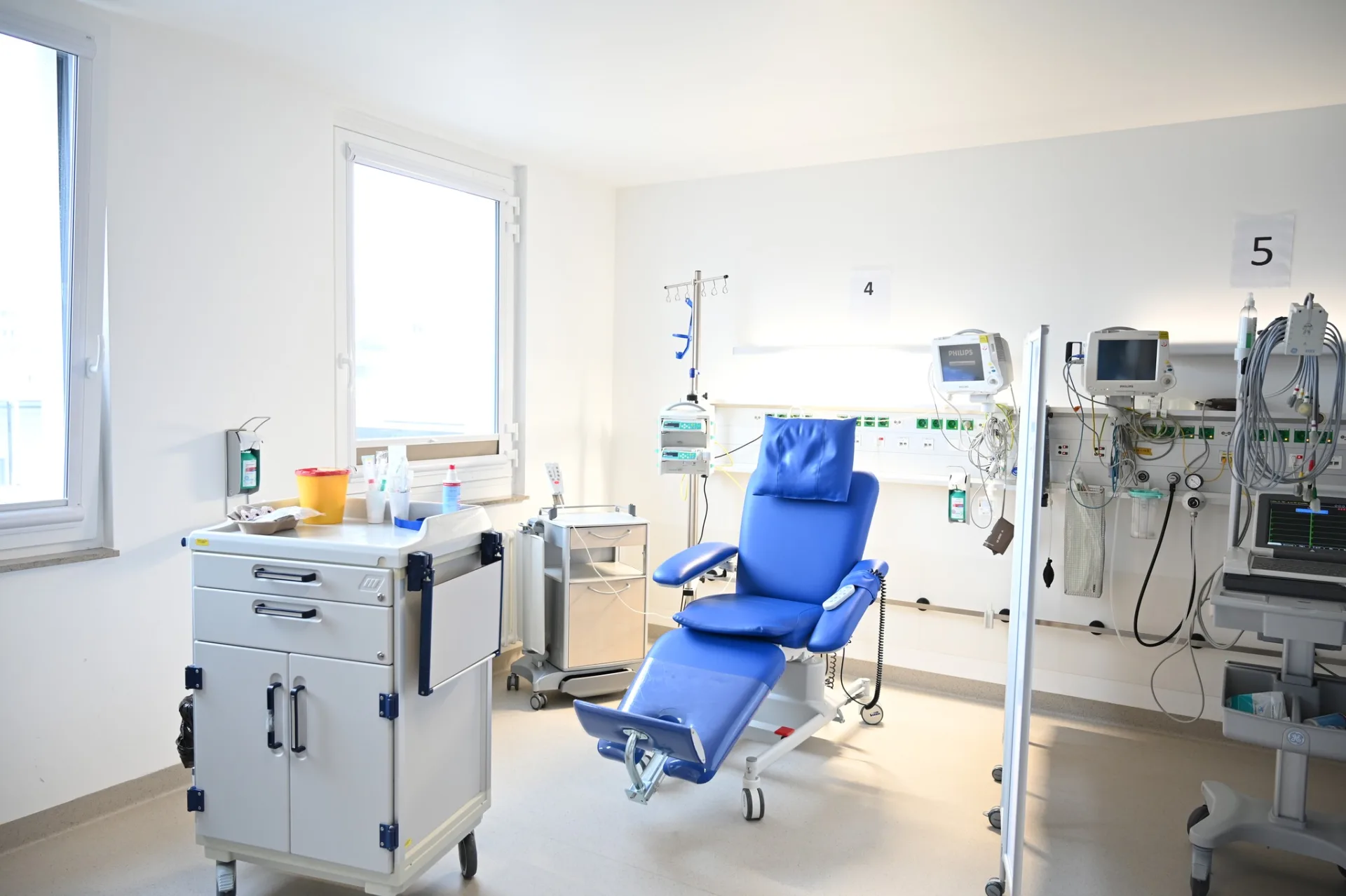

Application examples
Better Safe than Sorry
Power and low-voltage lines as well as medical gas lines are internally separated from one another. A special feature is that power connections and gas outlets can be combined space-savingly in a single aluminium channel and yet kept separate. The sockets can be installed flush into the front without a frame.
The installation and maintenance of the electrical components are straightforward thanks to the removable covers. The Q100 ICU combines an understated form with the functionality and robustness demanded in everyday medical use. The integrative overall form with its smooth surfaces is particularly easy to clean.
Flexible
The Q100 ICU is available in various versions and can be individually equipped with medical connection devices, consoles and accessory elements. On the form-fitting integrated equipment rail profile (25x10 mm), the movable single-bar or twin-bar carriages offer a maximum degree of flexibility. Thanks to the reduced depth of the central channels, particularly ample space remains for the connectors of the medical gases or accessories on the central equipment rails when a movable carriage is used.
Technical details
Material:
Extruded aluminium profile, naturally anodised, with recycled content.
Anodising:
Durable, abrasion- and UV-resistant natural anodising (standard); further anodising colours possible.
Installations:
Flush at the front with a standard switch range.
Maintenance:
System is maintenance-free.
Medical Accessories:
Optionally available with standard equipment rails.
Media Entry:
At the front face or rear.
Flexibility:
Free choice of colour, supply profiles also possible in multiple runs.
Dimensions:
See data sheet; overall length freely selectable up to 6,000 mm.
Add-Ons
Additional options for the Q100 ICU
Our add-ons make every supply unit more functional, flexible, and well-thought-out. For anyone who wants to improve processes, optimize spaces, and fully utilize their potential.
The bespoke philosophy of Schyns
The modular medical supply unit Q100 helps to plan and implement rooms in a way that is tailored to the needs of the patient.
Bespoke is not a single product, but the philosophy with which Schyns realizes tailor-made solutions in the field of medical technology and architecture.
Q100 is the modular system that brings this concept to life – technically sophisticated, visually discreet, and tailored to the people in the room.
Our contribution to a more humane healthcare system
healing architecture for all senses
We design spaces that provide tangible support to staff and patients.
A modern patient environment must offer more than just functionality.
As part of interior design, we are responsible for ensuring that technical equipment and architectural atmosphere form a harmonious whole. This approach has guided us for many years – as Alphonse Schyns once said: A hospital does not have to look like a hospital. This idea continues to influence our work today. Our products are developed in collaboration with our customers. This direct exchange ensures that every solution works in the everyday environment of clinics and care facilities: clear, robust, hygienic, and well thought-out exactly where it matters most.
Our work follows the principles of healing architecture. We design spaces that provide tangible support to staff and patients, promote calm, and facilitate processes. This is not a fashionable concept, but an approach that has proven itself over decades.
The multisensory approach—healing architecture for all senses—is a central component of this. Light, acoustics, materials, haptics, and intuitive orientation are specifically coordinated to reduce stress, create clarity, and generate a tangibly soothing environment. This creates an atmosphere that is both professional and relaxing.
Our supply units fit seamlessly into this overall concept as an important component: ergonomic, hygienically designed, and durable. They support staff in their daily work and provide patients with safety and orientation.
This is how we combine technical precision, many years of experience, and a clear design philosophy—and consistently think ahead to the patient rooms of the future.
Over 1,250 options for your individual solution
Brochure as PDFThe bespoke concept offers an enormous variety of design options. Combining the numerous categories and options creates over 1,250 different variations - depending on which elements you select and how they are combined. This number shows the range of individual configurations that allows you to tailor your solution exactly to your needs.
