Q100 integrativ horizontal

space and calm

Advice on this product   Technical details

Downloads & Documents

Information for your planning

Advice on this product

The product merges with the architecture to form a single unit, an integrative spatial concept that visually calms the patient room – while offering maximum functionality and ergonomics for staff and patients alike.

The Q100 is more than just a medical supply unit. It is a modular kit of building-block elements that solves every supply requirement and creates scope for creative interior design.

Its field of application ranges from light care through standard care to the care home. The Q100 offers entirely new design possibilities for a homely ambience. Thanks to its versatile, combinable basic form, it integrates perfectly into the room's furnishings.

With the Q100 integrativ horizontal, the supply profile is integrated flush with the front into a wall panel. It can be adapted in material and surface to suit the interior design and at the same time serves as a wall guard.

The medical gas outlets can be installed either in the supply channel or in the wooden front.

The Q100 system is the perfect solution for using multimedia terminals at the patient bed. The power supply and the wall mounting of TV swing arms can be seamlessly integrated.

Application examples

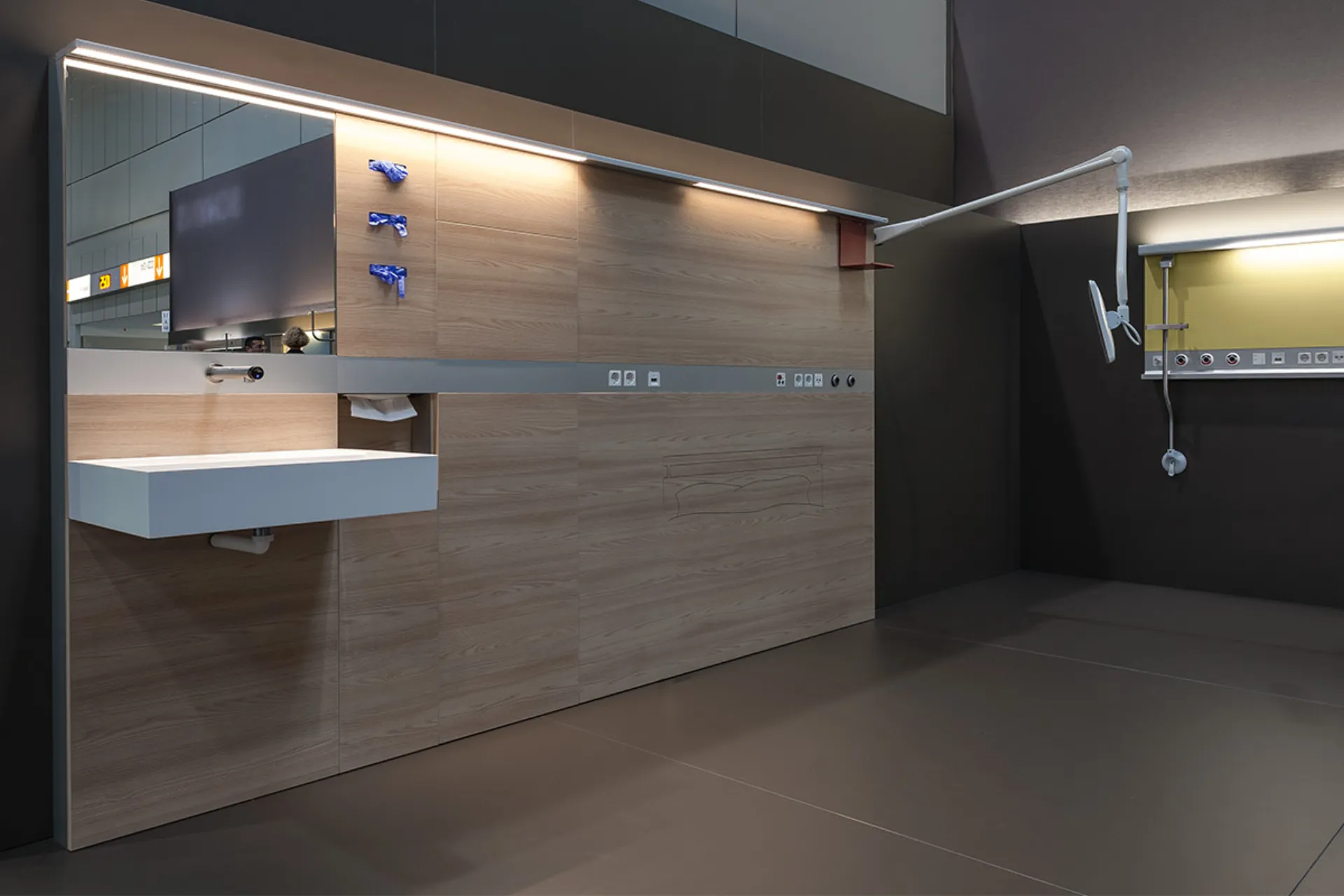

Modern, empty treatment room with wood panelling, a washbasin and medical connections on the wall
Our planning and manufacturing expertise and the systematic design of our products enable us to respond specifically to your wishes.

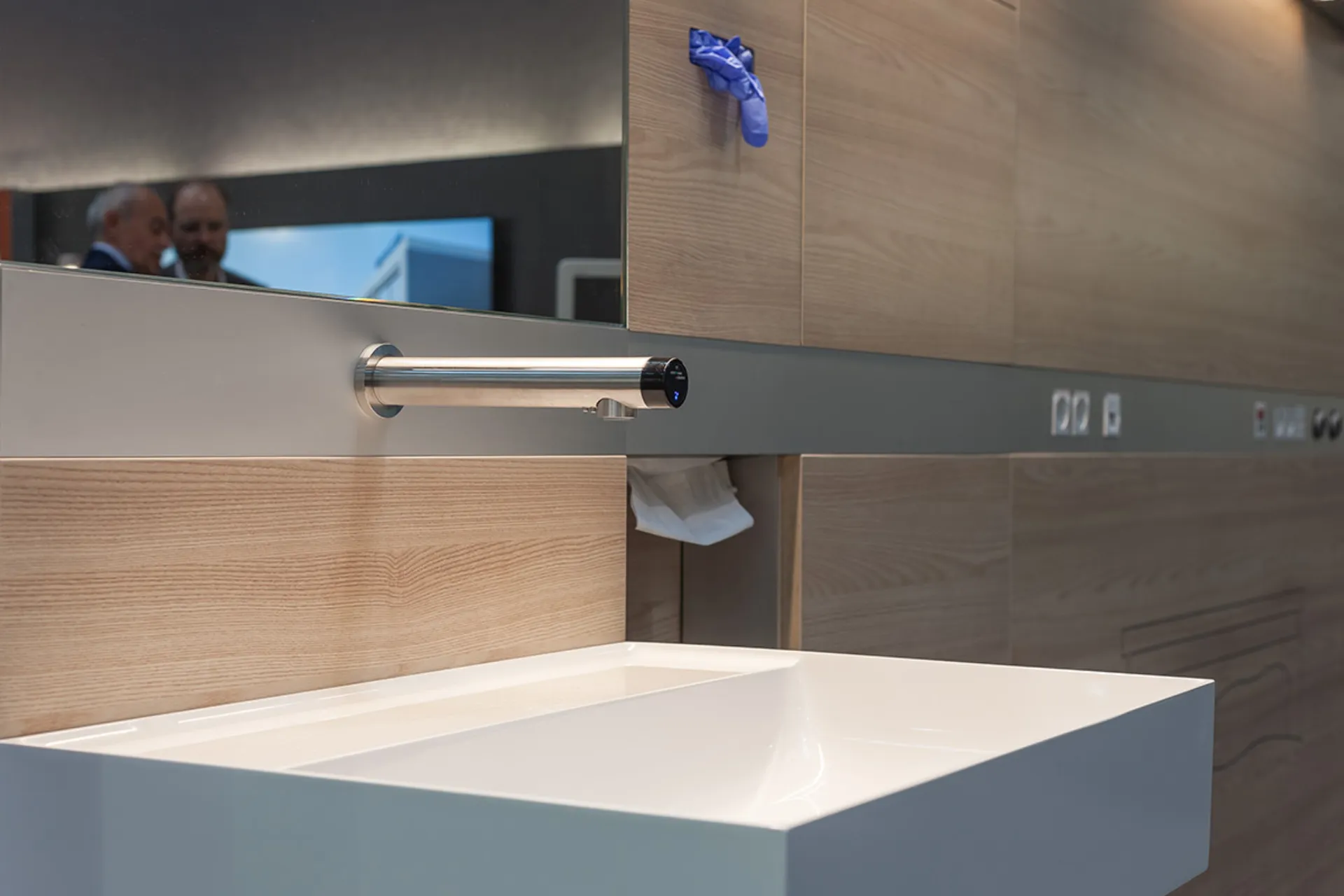

Modern washbasin with a rectangular bowl, a touchless tap and wood panelling on the wall, with a mirror and a blue glove holder

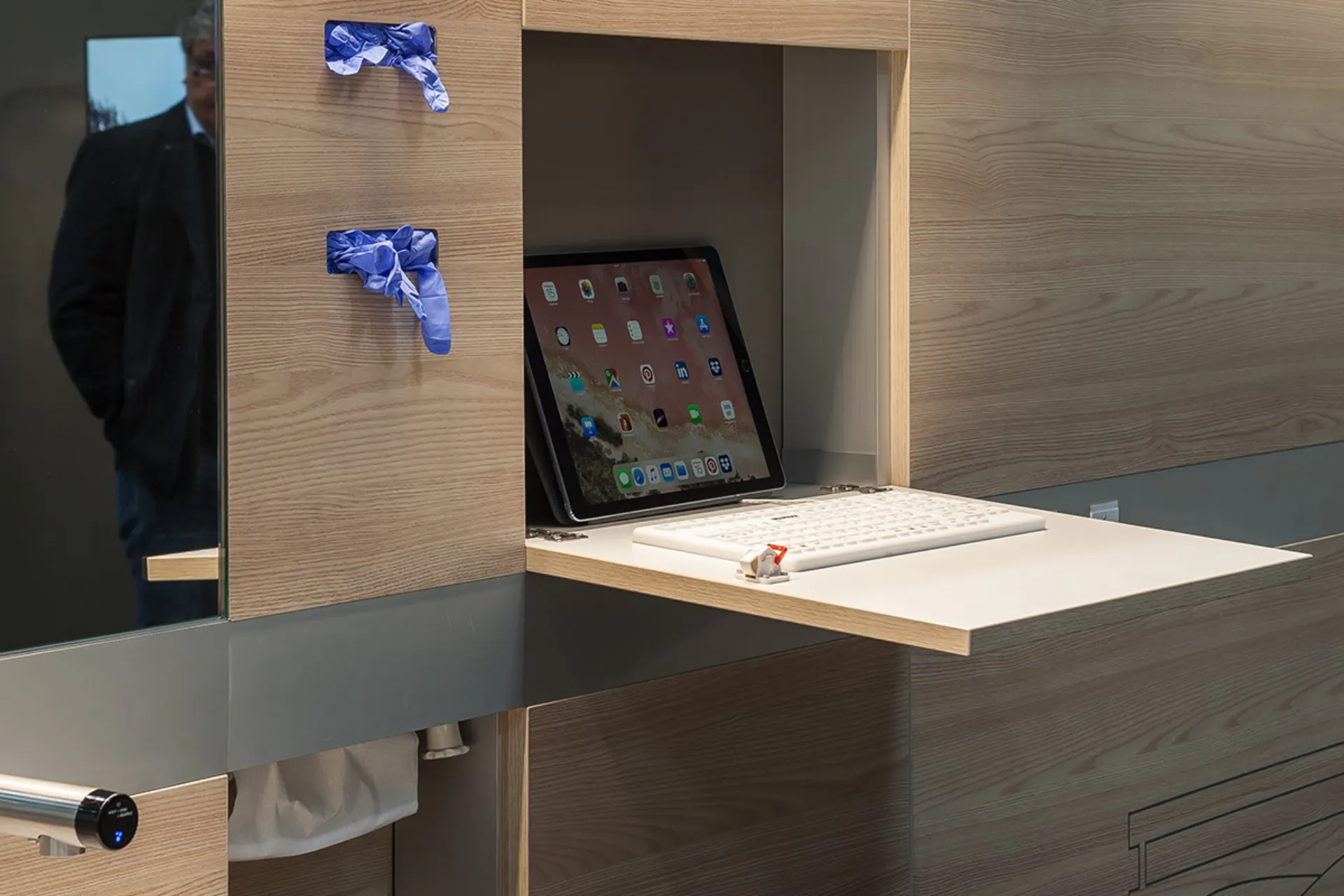

Tablet with numerous app icons standing on a pull-out wooden tray next to a white keyboard in a modern wooden shelf unit

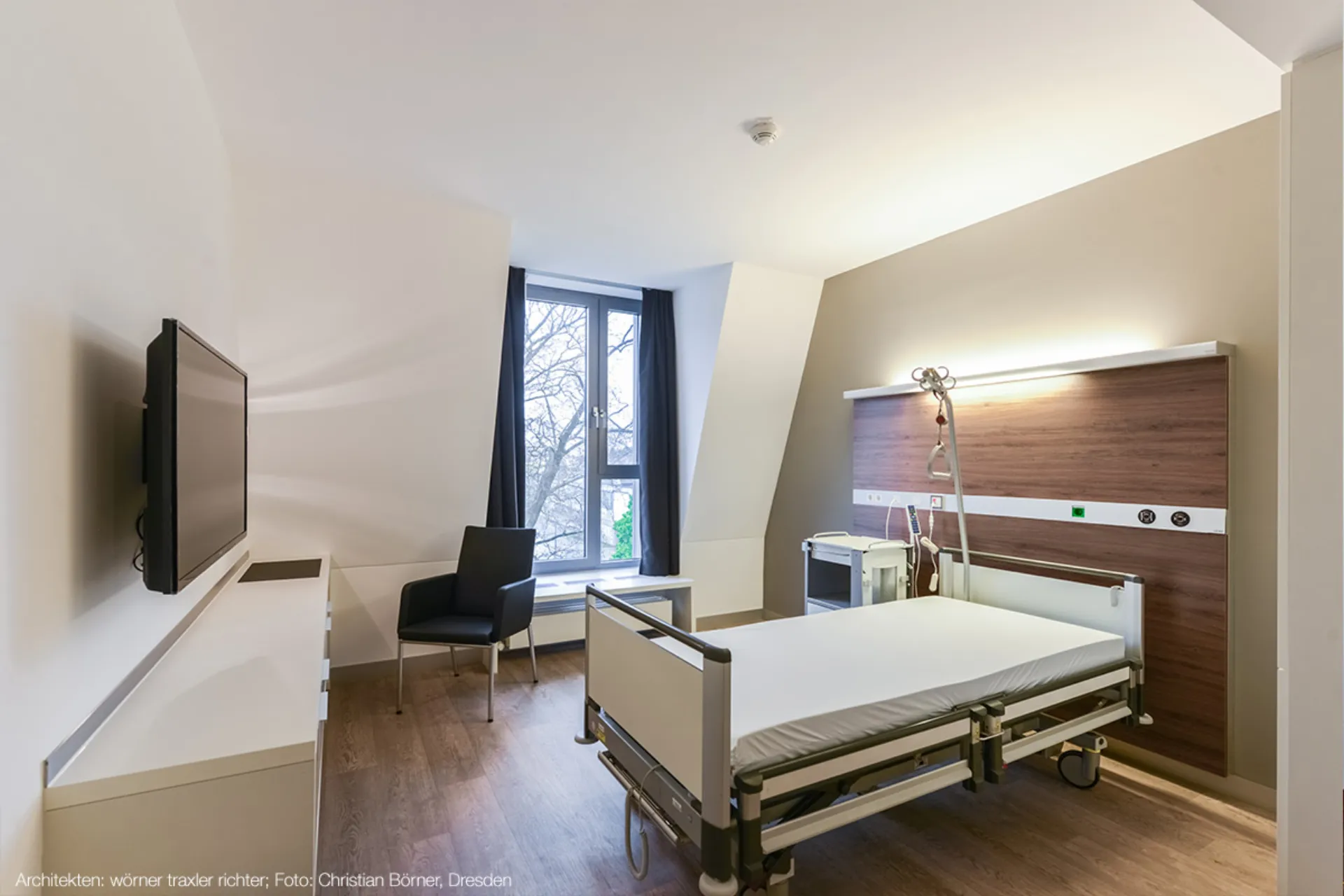

A simply furnished patient room with a hospital bed, a black chair, a window with curtains and a television on the wall
The solutions are individual.

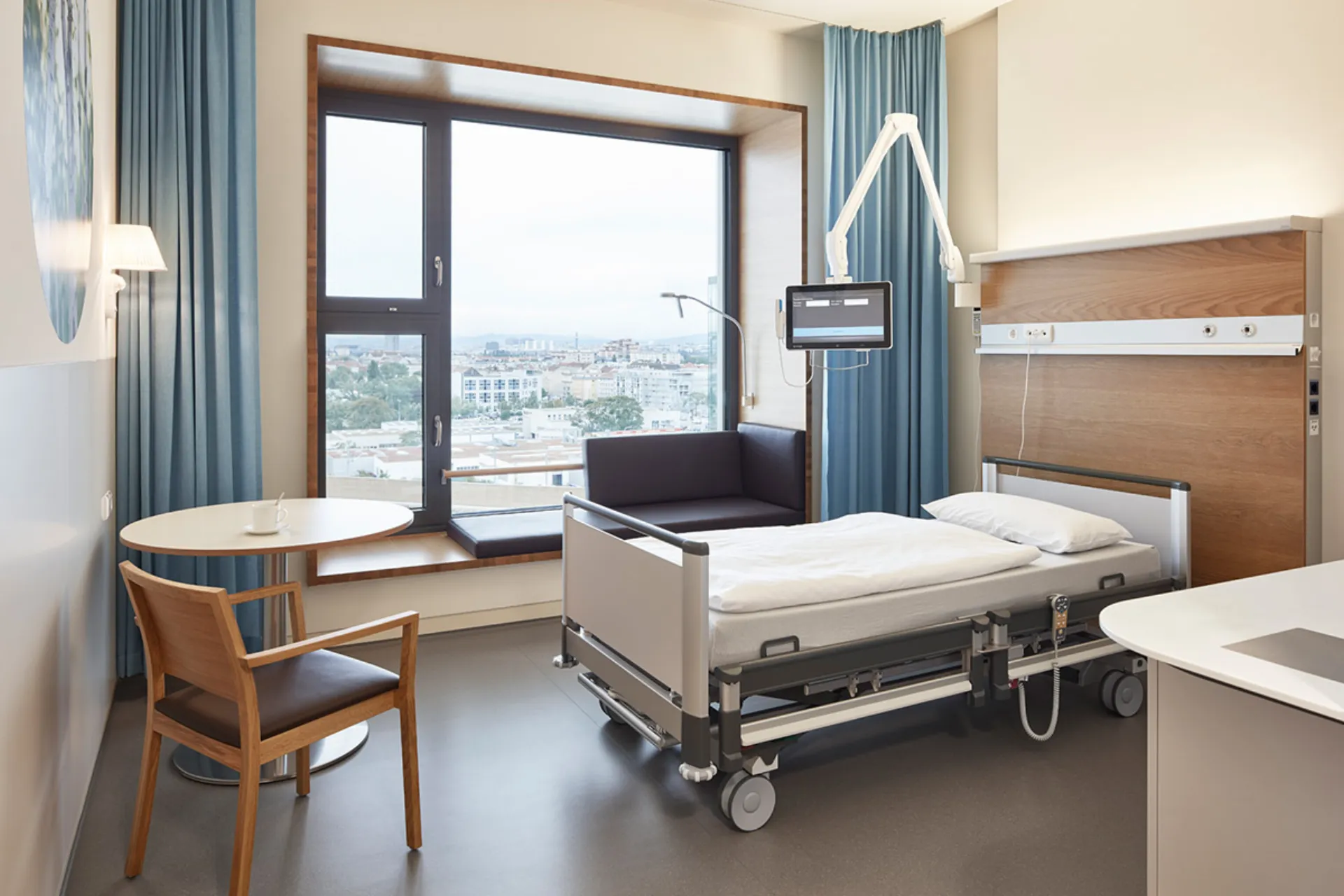

Hospital room with care bed, window seat with cushion, a chair and a small round table in front of a large window with a view of the city.
This is just a small selection of completed projects.

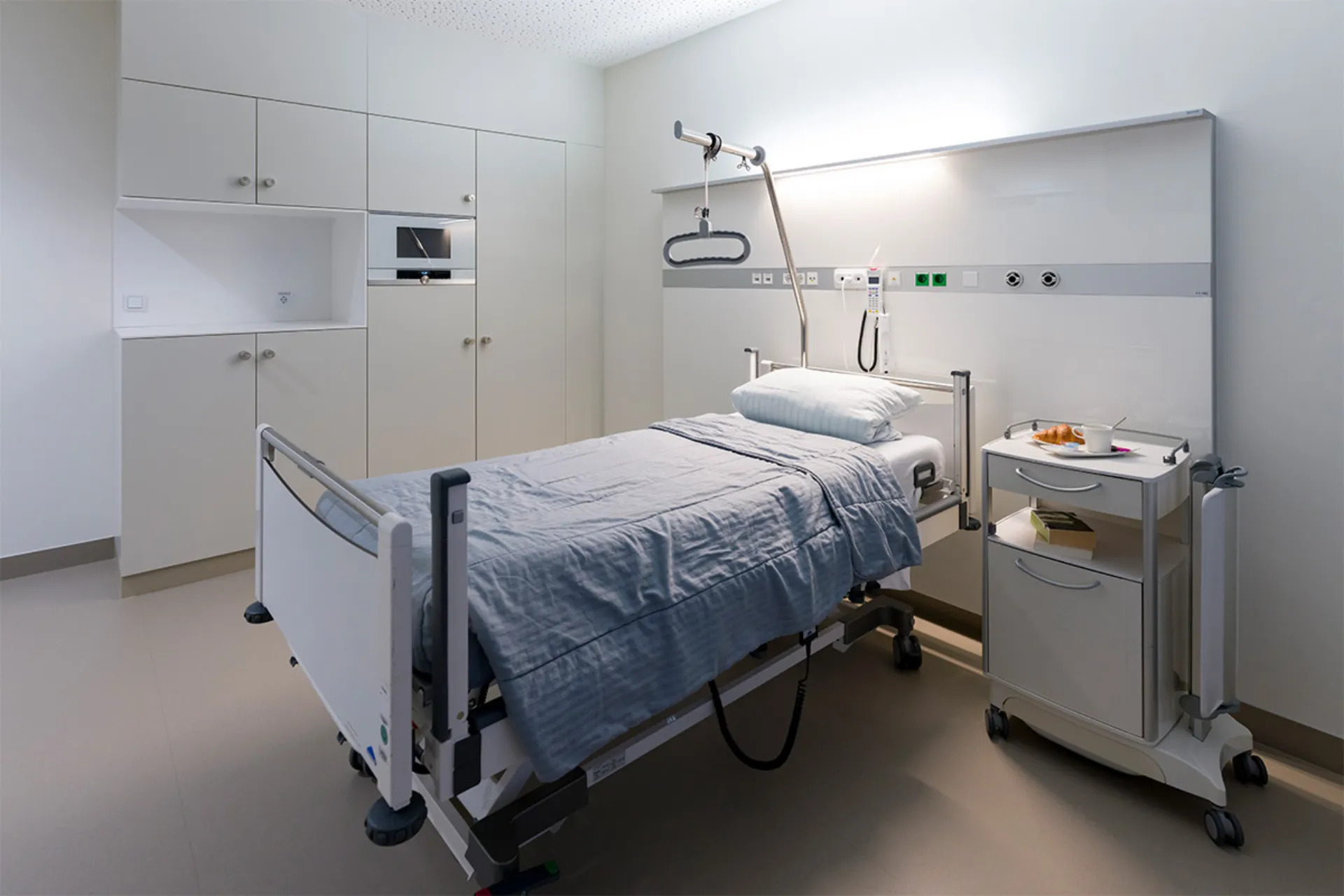

Hospital room with a bed, a grey duvet, a bedside table on castors and white cabinets on the wall
Hospital room with a bed, a grey duvet, a bedside table on castors and white cabinets on the wall

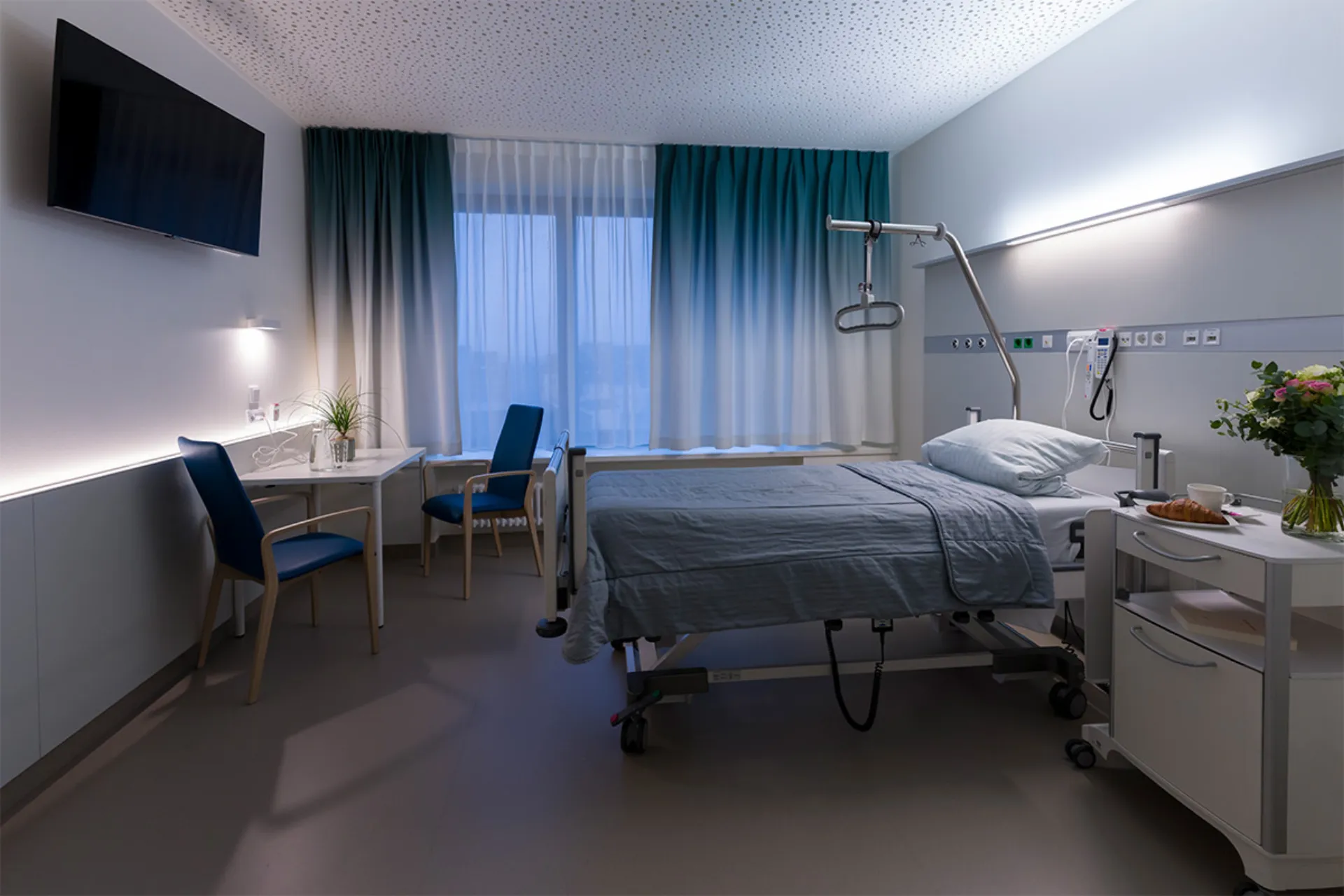

Hospital room with care bed, bedside table, two chairs, a desk, a large window with curtains and a wall-mounted television

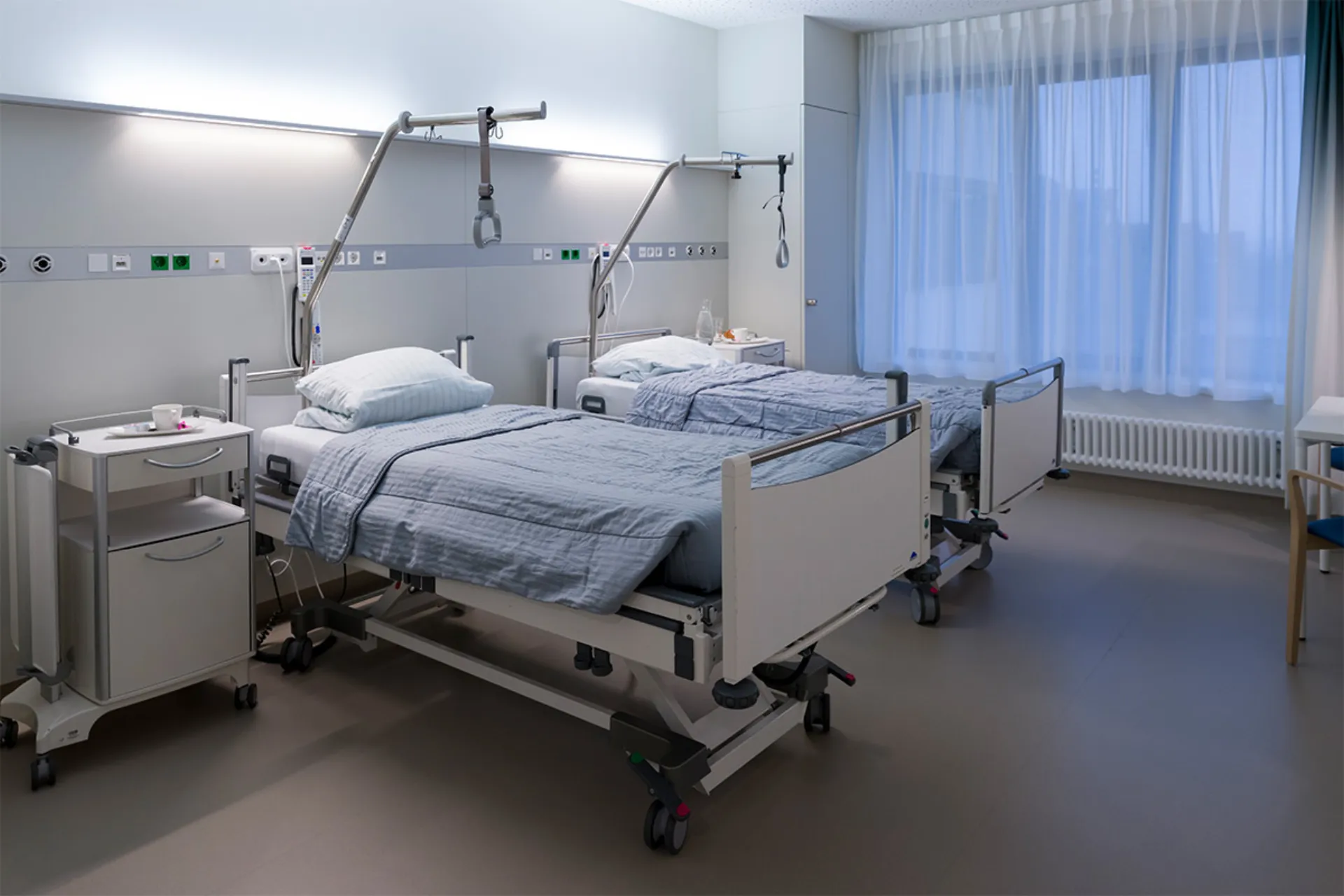

Two hospital beds with grey blankets in a bright patient room with a large window and curtains

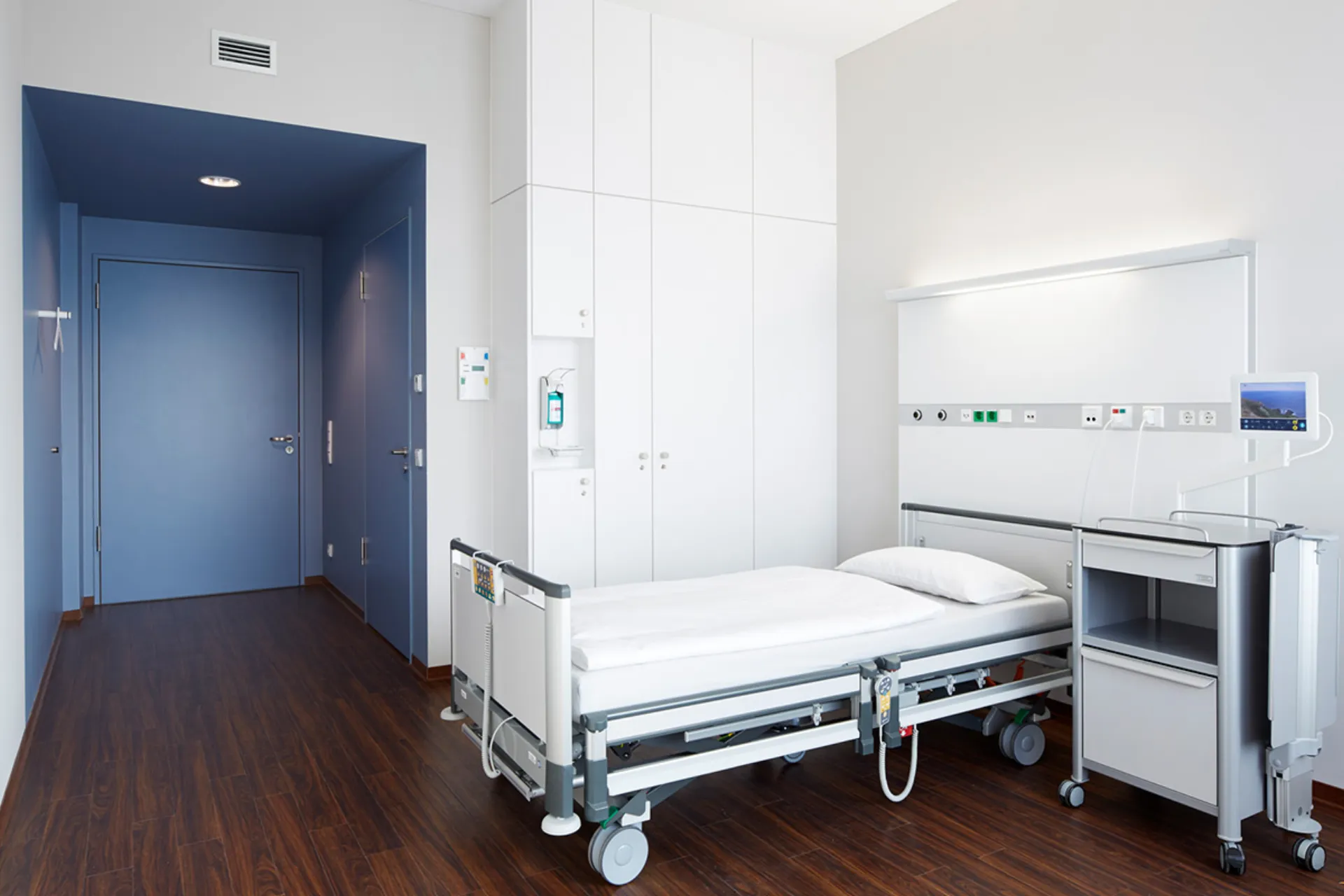

Hospital room with one bed, bedside table, white cabinets and a blue door in a bright space

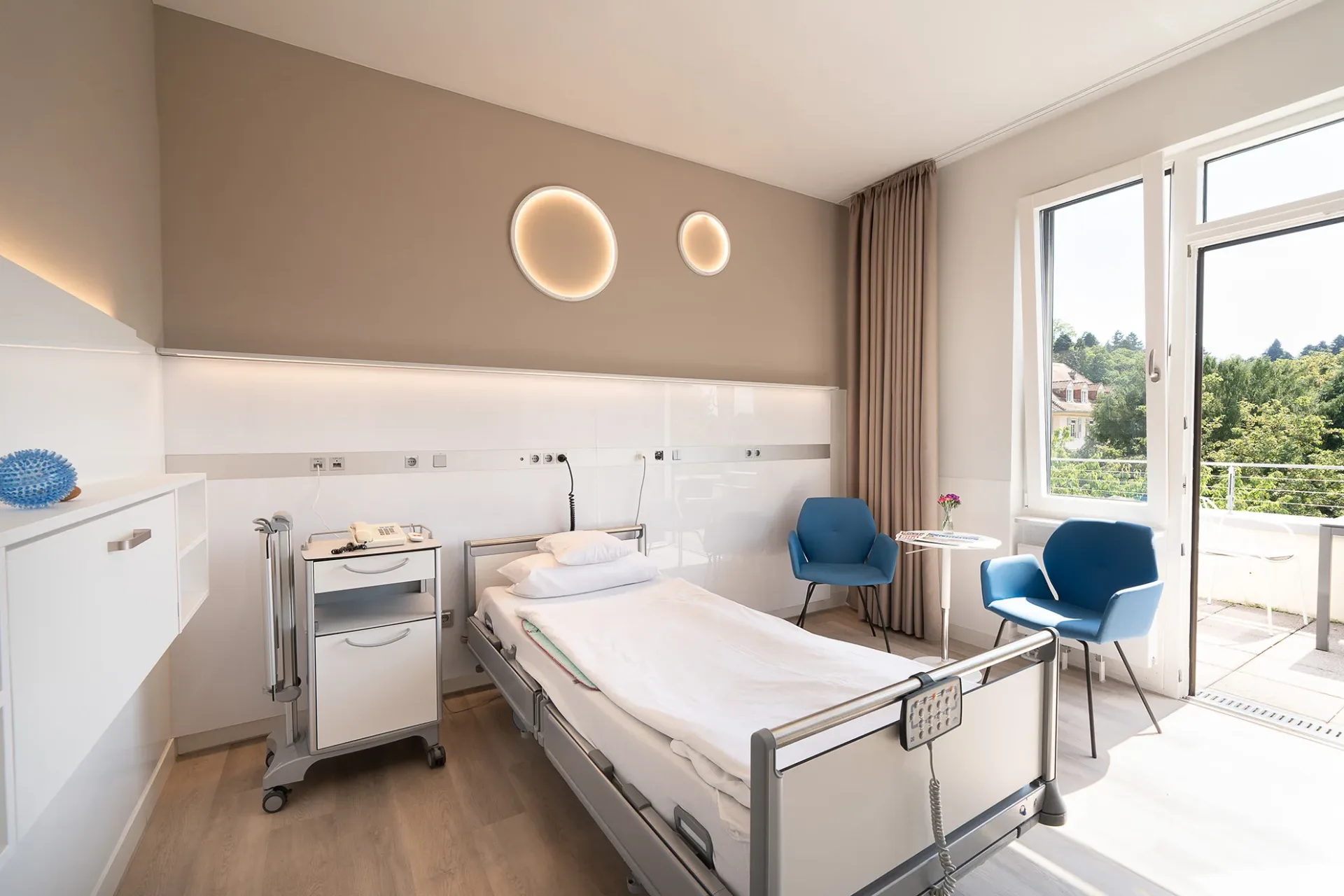

Modern patient room with care bed, bedside table on castors, two round wall luminaires, two blue armchairs by the side table and a balcony door with a view of greenery

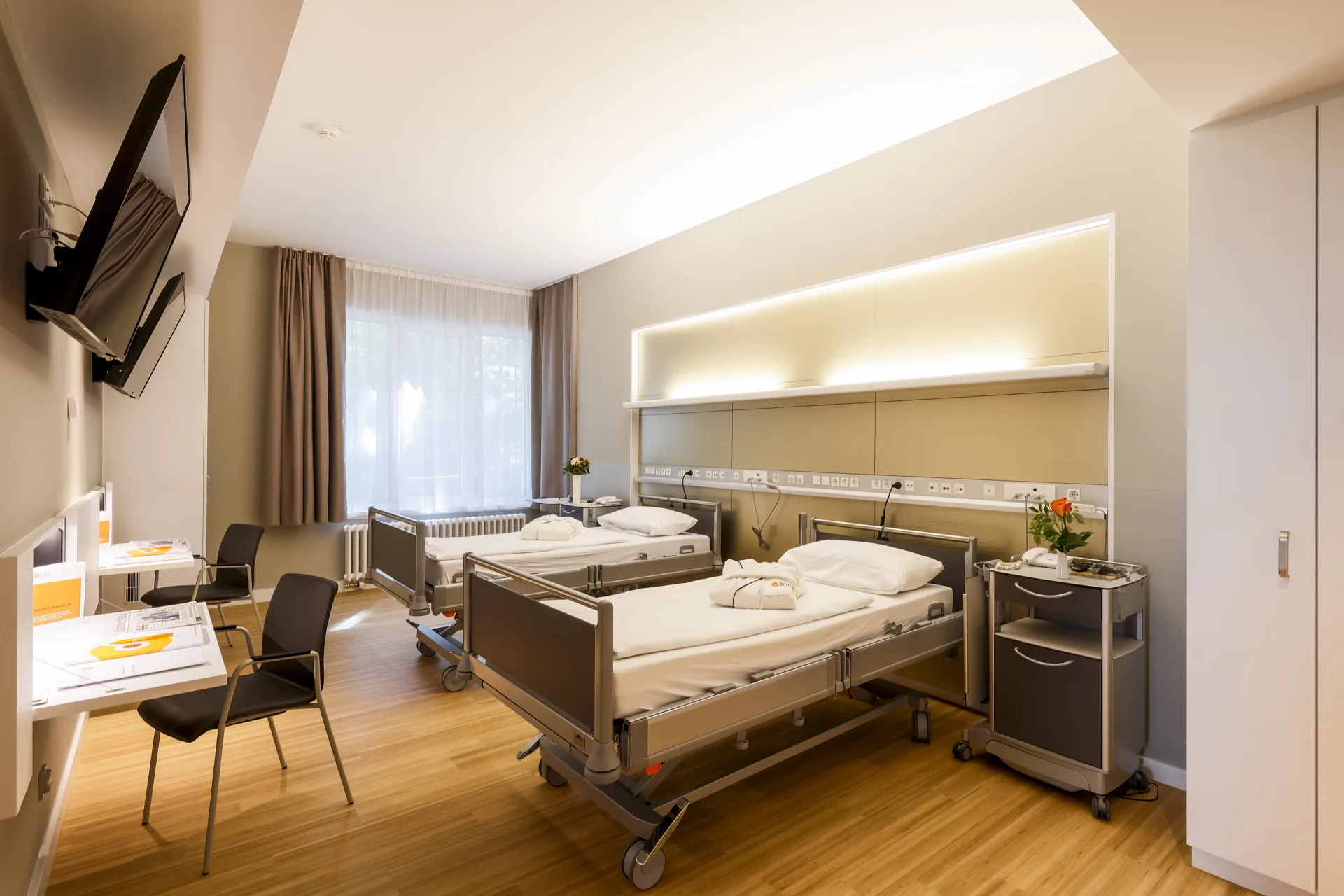

Patient room with two care beds, an indirectly lit supply strip on the rear wall, a desk with chair, a wall-mounted television and a window with a curtain

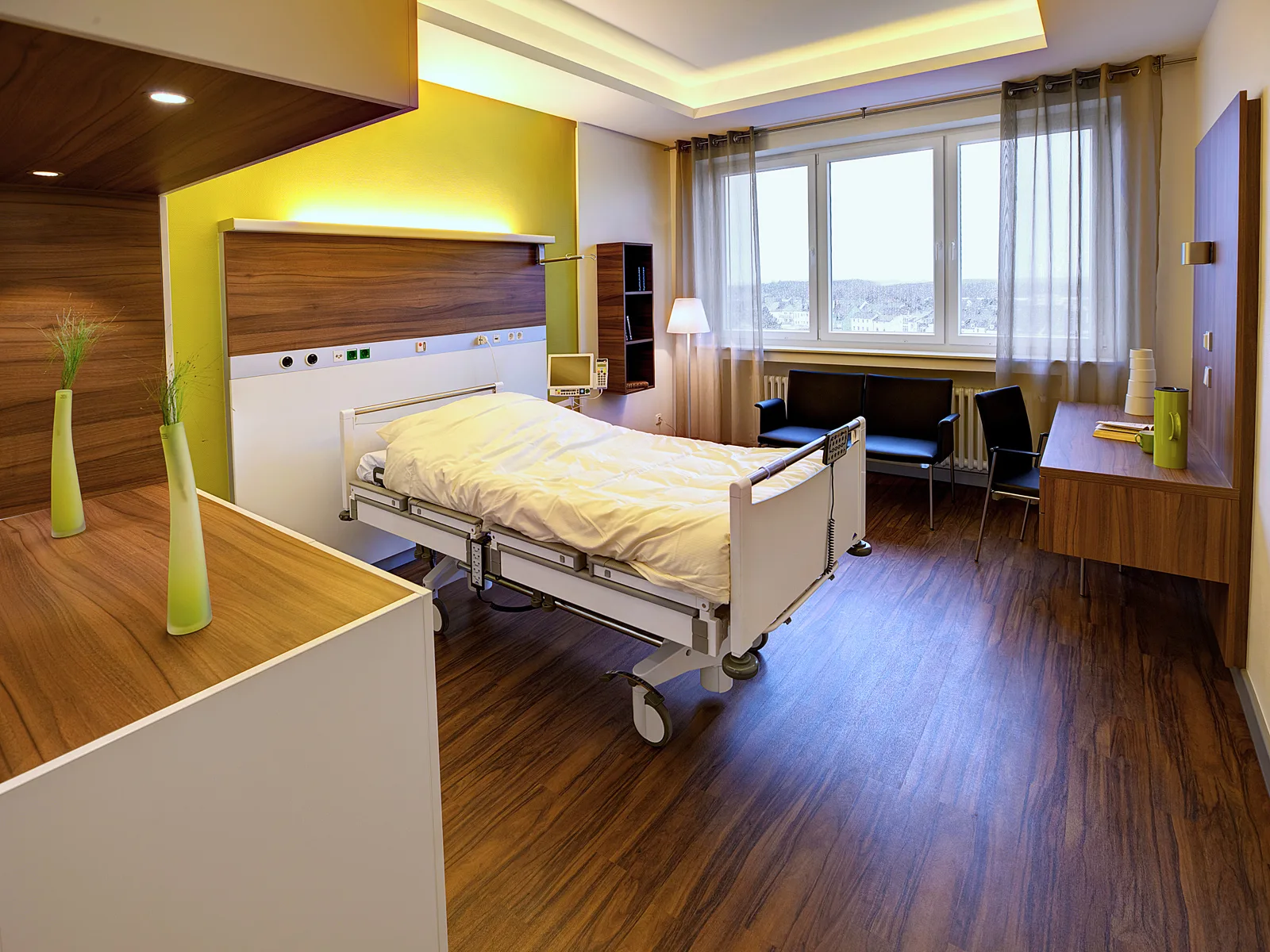

Patient room with care bed in front of a dark wood wall cladding, a supply rail backlit in yellow, a seating area with dark chairs and large windows with a view

Comfort for Everyone

The Q100 consists of rectangular extruded aluminium supply profiles, a matching equipment rail profile and luminaires with luminaire covers made of extruded, translucent satin acrylic. All the power and communication connections, medical gas outlets and the general and reading lighting required in the patient room are integrated here into a highly flexible modular system. High-voltage and low-voltage cabling and medical gas lines are kept separate from one another.

A particular feature is that power connections and medical gas outlets can be combined in a single aluminium channel in a space-saving way and yet kept separate. This makes very slim and discreet solutions possible. The system is designed for the flush installation of the elements from the Gira System 55 range. Installing and servicing the electrical components is straightforward thanks to the removable covers. The Q100 combines elegance with functionality and robustness that meet the demands of everyday medical life. Its integrative overall form with smooth surfaces is particularly easy to clean.

Light is Life

The medical wall luminaire is mounted on the basic body. There is a choice of the energy-efficient and long-lasting LED luminaires Schyns S120, Schyns S130 or Schyns S170. Our medical wall luminaires feature indirect general lighting and a directly radiating, adjustable reading light. All luminaires have the Schyns accessory groove on their underside, in which practical accessories can be hooked in without tools and infinitely adjusted.

Technical details

Material:

Extruded aluminium profile, naturally anodised with recycled content; HPL-coated chipboard.

Anodising:

Durable, abrasion- and UV-resistant natural anodising (standard); further anodising colours possible.

Front Design:

Front wooden panels with HPL decor (around 22,000 decors from all common manufacturers), alternatively individual digital printing; other materials such as imitation glass, Corian or real glass are also possible. Front panel locking possible.

Installations:

Flush at the front with a standard switch range.

Maintenance:

The system is maintenance-free. Plates are easily removable using the supplied special tool for straightforward service access.

Medical Accessories:

Schyns accessory groove integrated into the underside of the medical wall luminaire for the tool-free fitting of accessory elements, which can be moved infinitely without tools. Optionally available with standard equipment rails.

Luminaires:

A choice of various medical wall luminaires (S120, S130, S170).

Lighting:

General lighting 3,000 K / 4,000 K or Schyns Biologic Health Light 1,800 K to 16,000 K, adjustable reading light (mechanical / electronic), colour rendering CRI > 90; COI < 3.3, flicker-free, switchable, dimmable DALI or Casambi, examination light, extended examination light 500 lux or treatment light up to 1,000 lux, Backlight option.

Media Entry:

At the front face or rear.

Flexibility:

Free choice of colour, varying illuminance levels; supply profiles can also be installed in multiple runs and at different positions within the product; optional integration of a media arm and sound system possible.

Dimensions:

Freely selectable, also ceiling-high as a sky version.

Add-Ons

Additional options for the Q100 integrativ horizontal

Our add-ons make every supply unit more functional, flexible, and well-thought-out. For anyone who wants to improve processes, optimize spaces, and fully utilize their potential.

Accessories

S130

Whether in a single or twin room, in geriatrics or psychiatry – the minimalist, modern design language with timeless, clean lines makes the S130 compatible with almost any room design.

Learn More

S130

Whether in a single or twin room, in geriatrics or psychiatry – the minimalist, modern design language with timeless, clean lines makes the S130 compatible with almost any room design.
Accessories

Schyns Biologic Health Light

The room has a major influence on the patient's wellbeing and recovery. But it is light that truly defines the room and makes it tangible. Space and light are inseparably linked.

Learn More

Schyns Biologic Health Light

The room has a major influence on the patient's wellbeing and recovery. But it is light that truly defines the room and makes it tangible. Space and light are inseparably linked.

The bespoke philosophy of Schyns

The modular medical supply unit Q100 helps to plan and implement rooms in a way that is tailored to the needs of the patient.

Bespoke is not a single product, but the philosophy with which Schyns realizes tailor-made solutions in the field of medical technology and architecture.

Q100 is the modular system that brings this concept to life – technically sophisticated, visually discreet, and tailored to the people in the room.

A patient room with a modular medical supply unit from Schyns
Interior design based on the principles of healing architecture creates a supportive and soothing environment for staff and patients. More on the topic

Our contribution to a more humane healthcare system

healing architecture for all senses

We design spaces that provide tangible support to staff and patients.

A modern patient environment must offer more than just functionality.

As part of interior design, we are responsible for ensuring that technical equipment and architectural atmosphere form a harmonious whole. This approach has guided us for many years – as Alphonse Schyns once said: A hospital does not have to look like a hospital. This idea continues to influence our work today. Our products are developed in collaboration with our customers. This direct exchange ensures that every solution works in the everyday environment of clinics and care facilities: clear, robust, hygienic, and well thought-out exactly where it matters most.

Our work follows the principles of healing architecture. We design spaces that provide tangible support to staff and patients, promote calm, and facilitate processes. This is not a fashionable concept, but an approach that has proven itself over decades.

The multisensory approach—healing architecture for all senses—is a central component of this. Light, acoustics, materials, haptics, and intuitive orientation are specifically coordinated to reduce stress, create clarity, and generate a tangibly soothing environment. This creates an atmosphere that is both professional and relaxing.

Our supply units fit seamlessly into this overall concept as an important component: ergonomic, hygienically designed, and durable. They support staff in their daily work and provide patients with safety and orientation.

This is how we combine technical precision, many years of experience, and a clear design philosophy—and consistently think ahead to the patient rooms of the future.

Over 1,250 options for your individual solution

Brochure as PDF

The bespoke concept offers an enormous variety of design options. Combining the numerous categories and options creates over 1,250 different variations - depending on which elements you select and how they are combined. This number shows the range of individual configurations that allows you to tailor your solution exactly to your needs.
