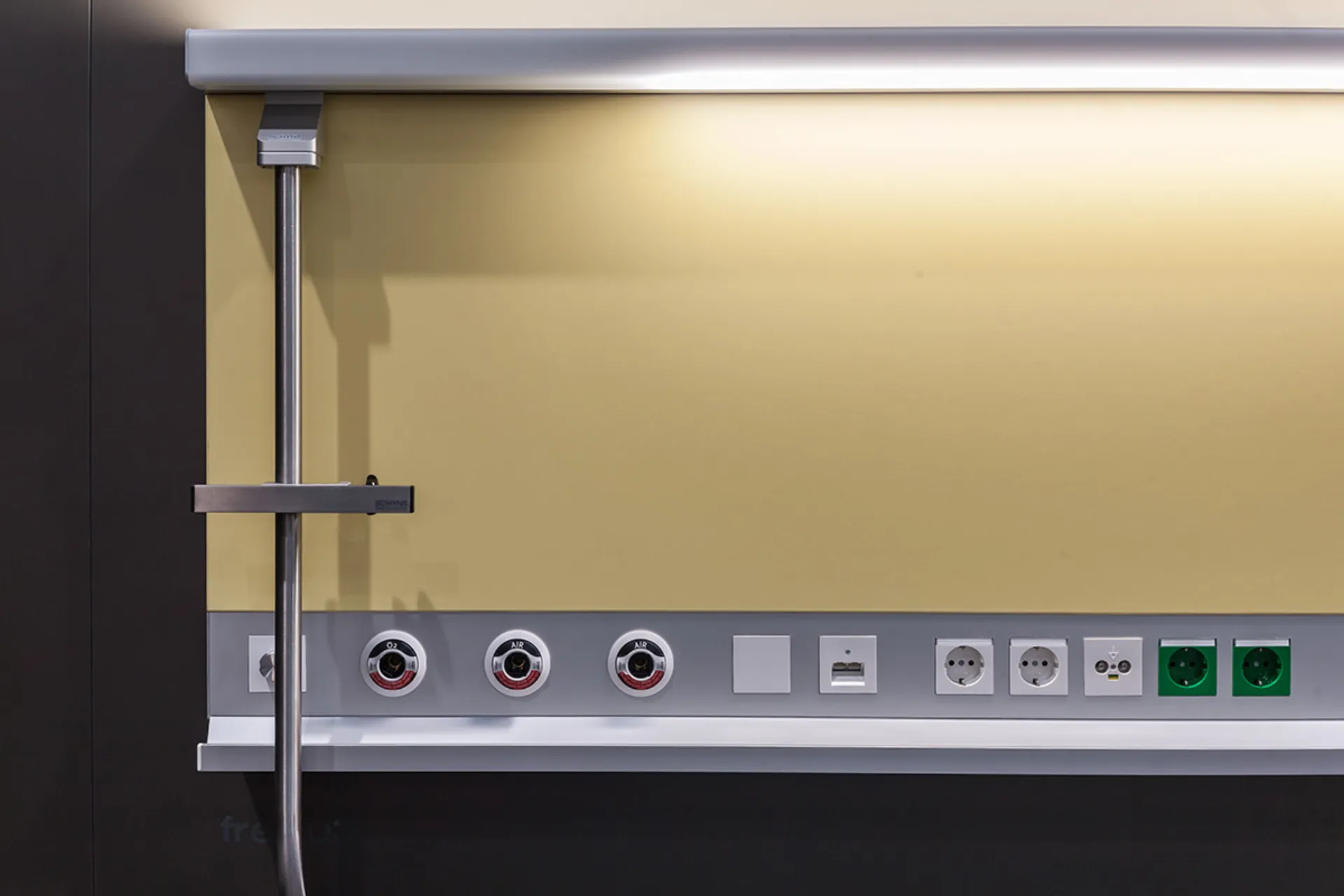

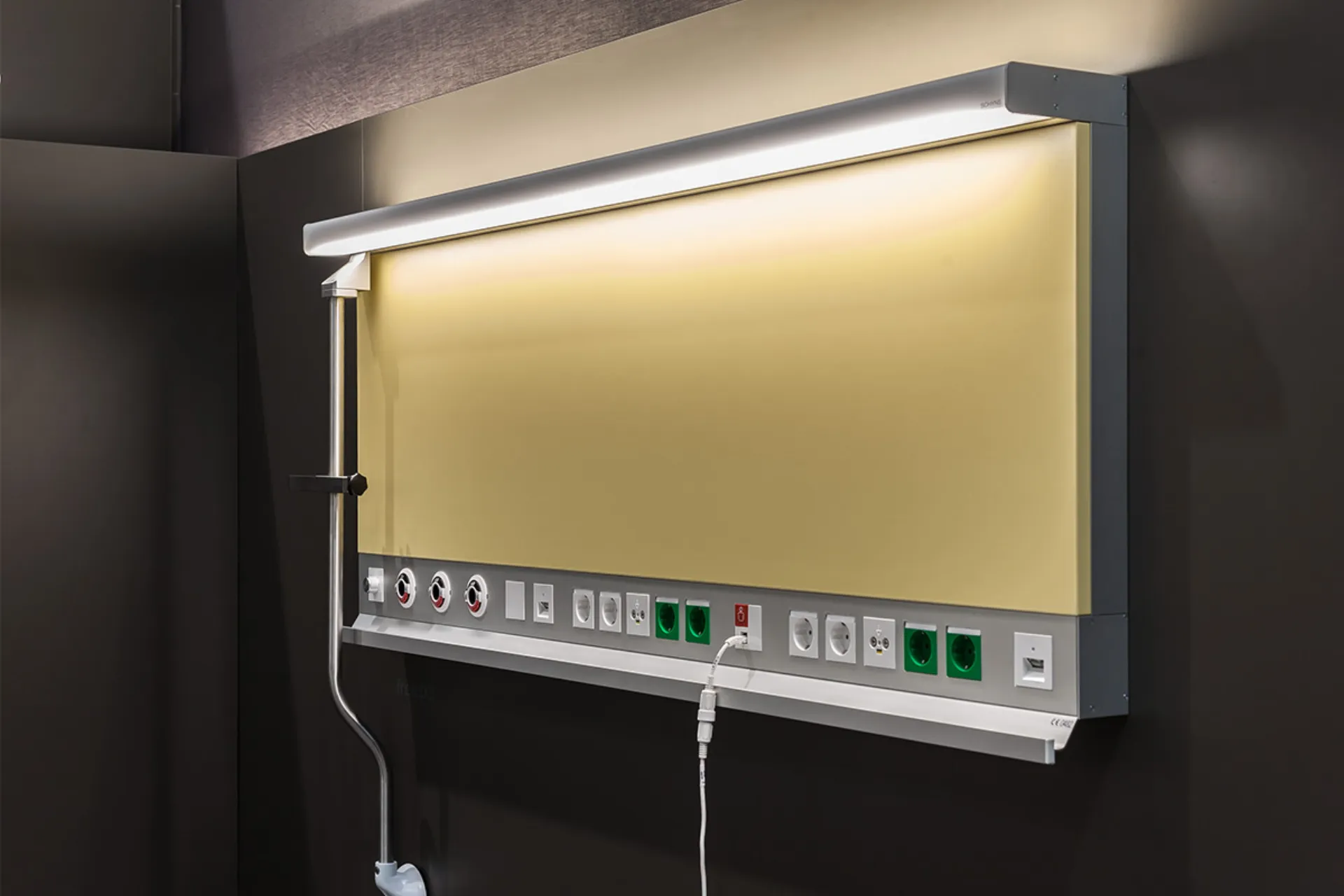

The free03 medical supply unit breaks away from classic forms while at the same time meeting all requirements for function and ease of use. The compact unit combines the media supply with a wood panel and a mounted luminaire. The sockets for power and low-voltage current and the medical gases are directly accessible from the front. Wall mounts for multimedia support arms can be integrated behind the wood panel.
Thanks to the arrangement of the supply unit and luminaire elements, everything is exactly where it best serves its purpose: sockets and medical gases are positioned at an easily reachable height above the patient bed, while the light perfectly illuminates the room and the reading and examination area from above.

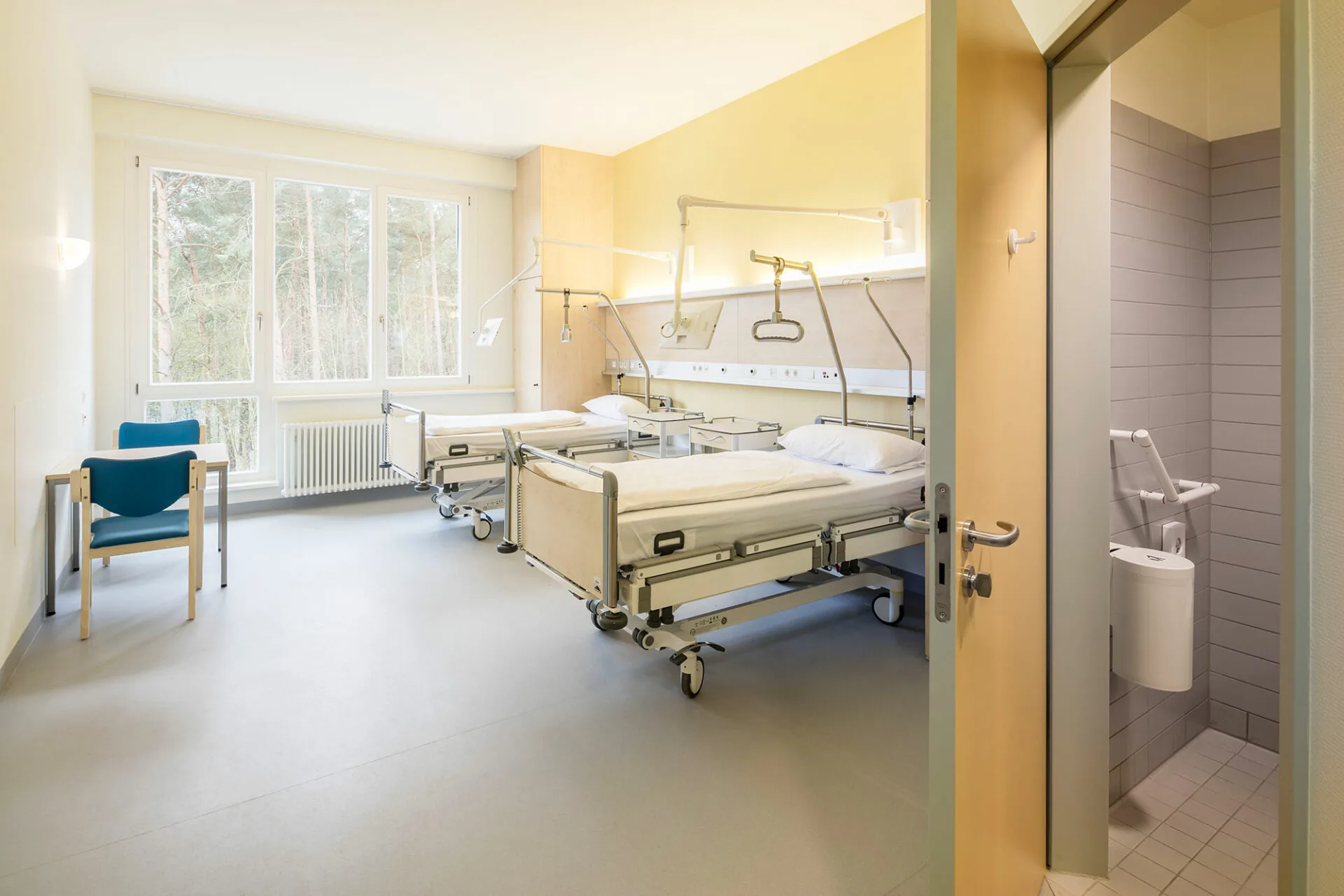

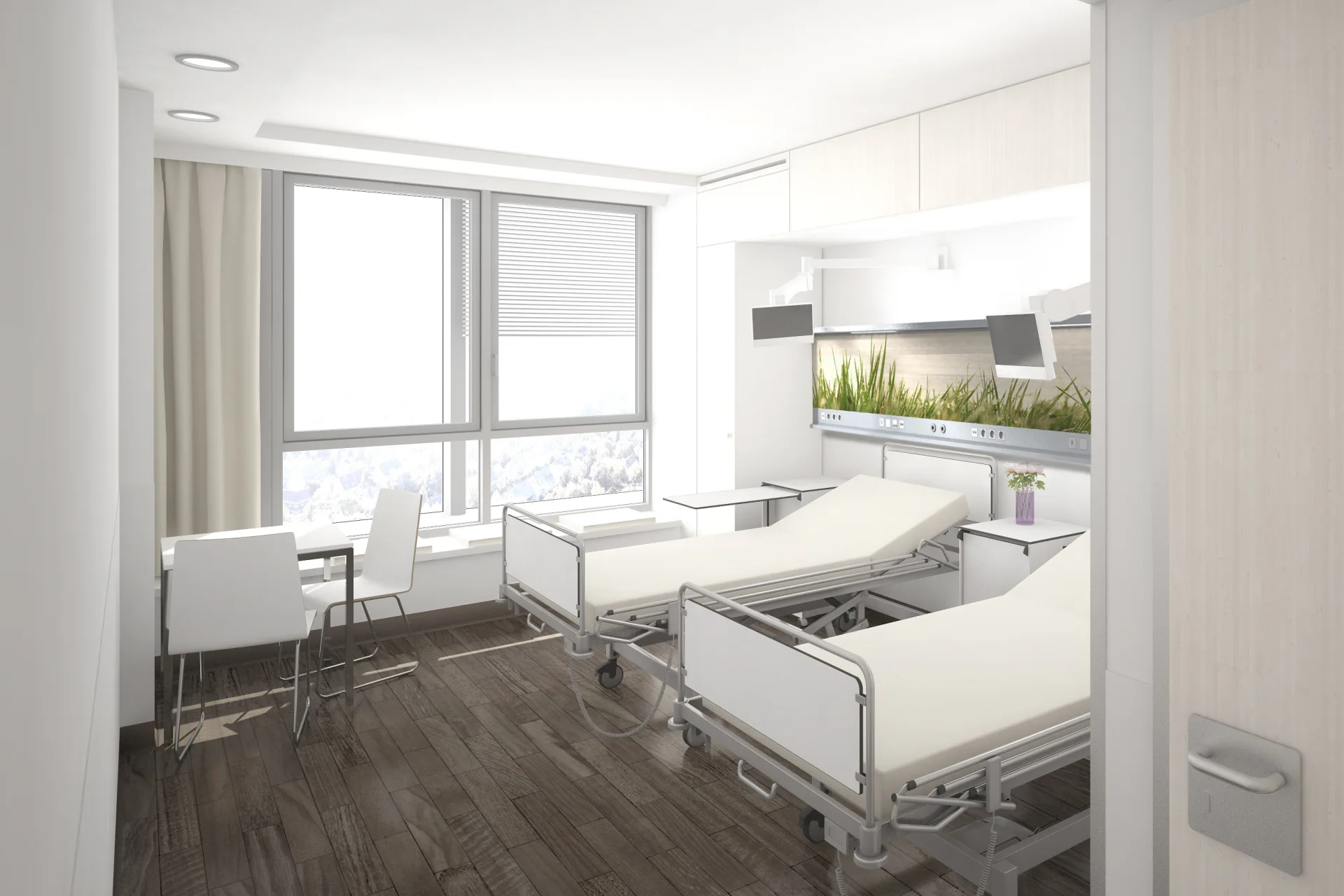

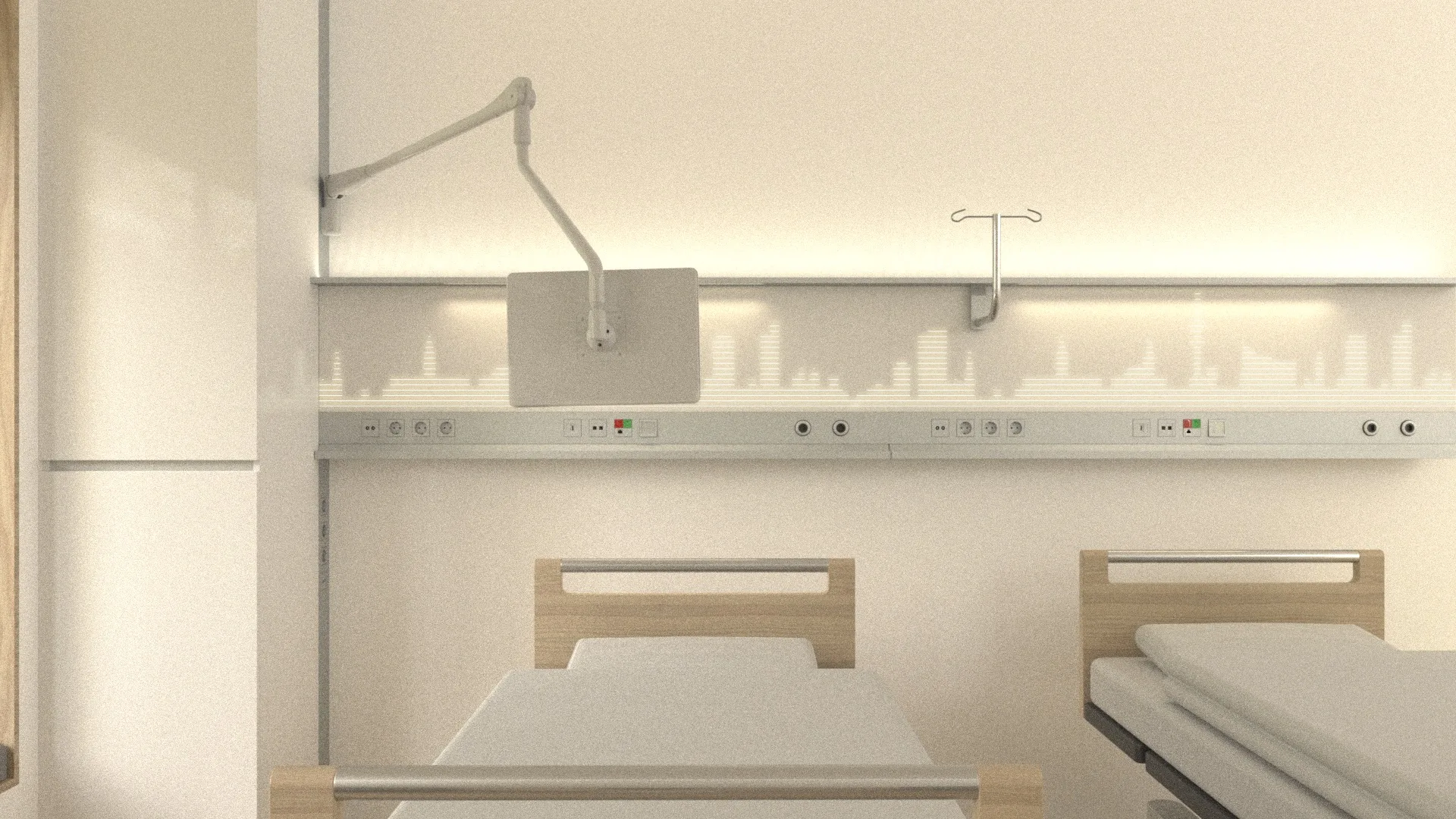

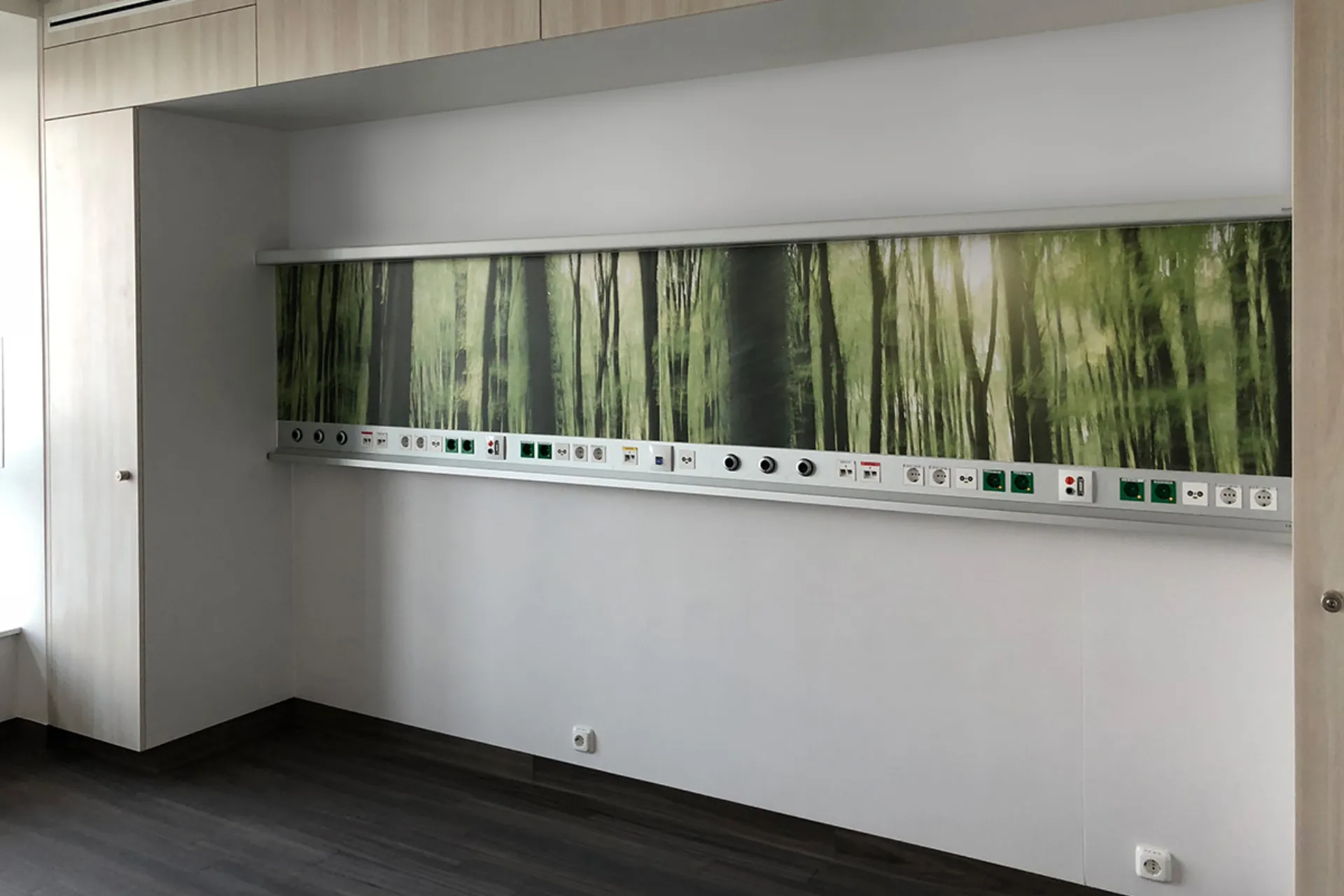

Application examples
Light and Space
The medical wall luminaire is mounted on the base body. There is a choice of the energy-efficient and long-lasting LED luminaires Schyns S120 or Schyns S130. Our medical wall luminaires feature indirect general lighting as well as a directly emitting, adjustable reading light. All luminaires have the Schyns accessory groove on the underside, into which practical accessories can be hooked without tools and moved continuously.
Compact and Comfortable
In addition to the existing Schyns accessory groove, the free03 also offers the option of adding an integrative standard equipment rail 25x10 mm. The harmonious combination of extruded, natural-colour anodised aluminium profiles with colour-contrasting fronts makes the free03 very high in quality. A wide variety of front decors is available, so that the supply unit integrates coherently into any room design or sets deliberate colour accents.
Technical details
Material:
Extruded aluminium profile, naturally anodised with recycled content; HPL-coated chipboard.
Anodising:
Durable, abrasion- and UV-resistant natural anodising (standard); further anodising colours possible.
Front Design:

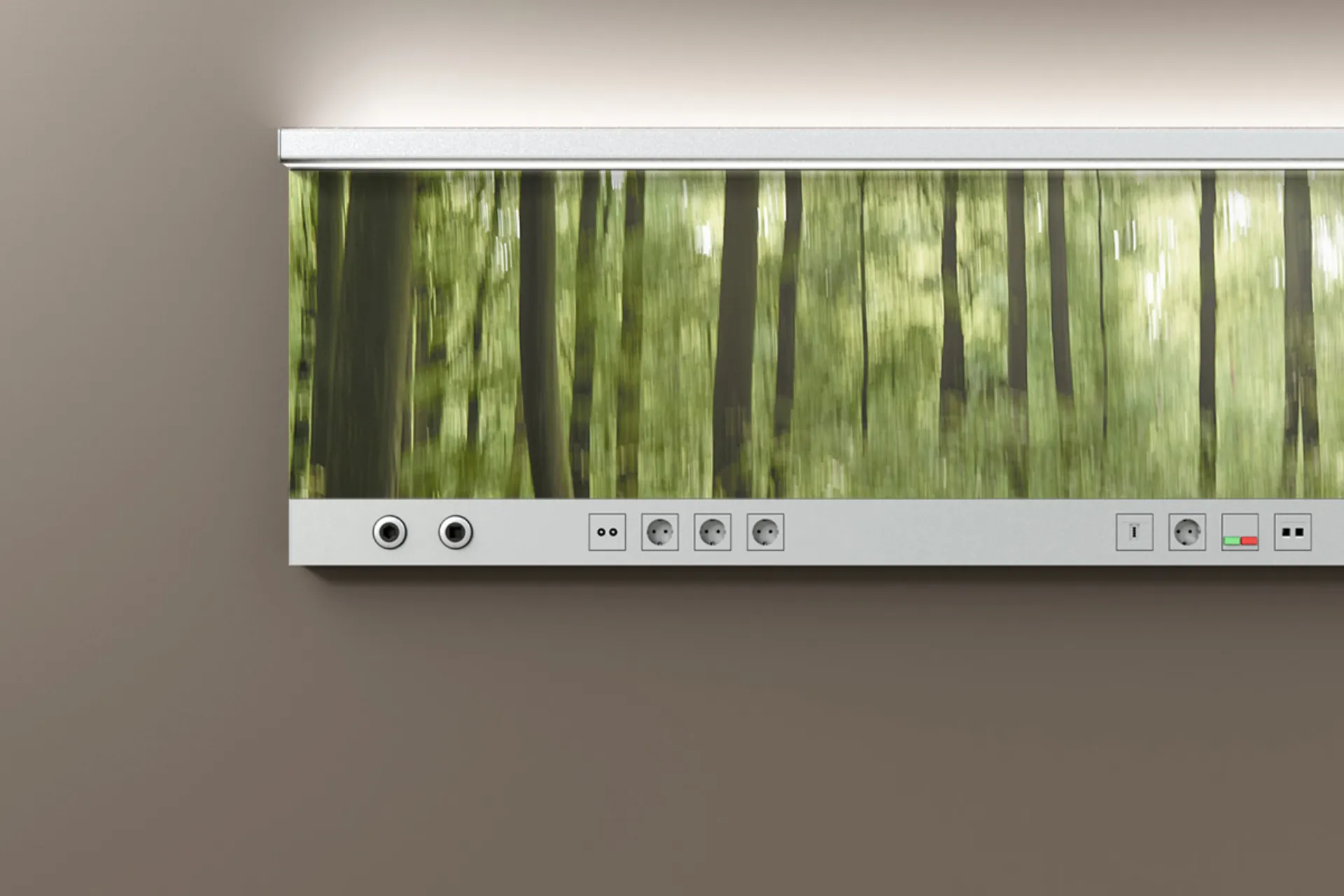

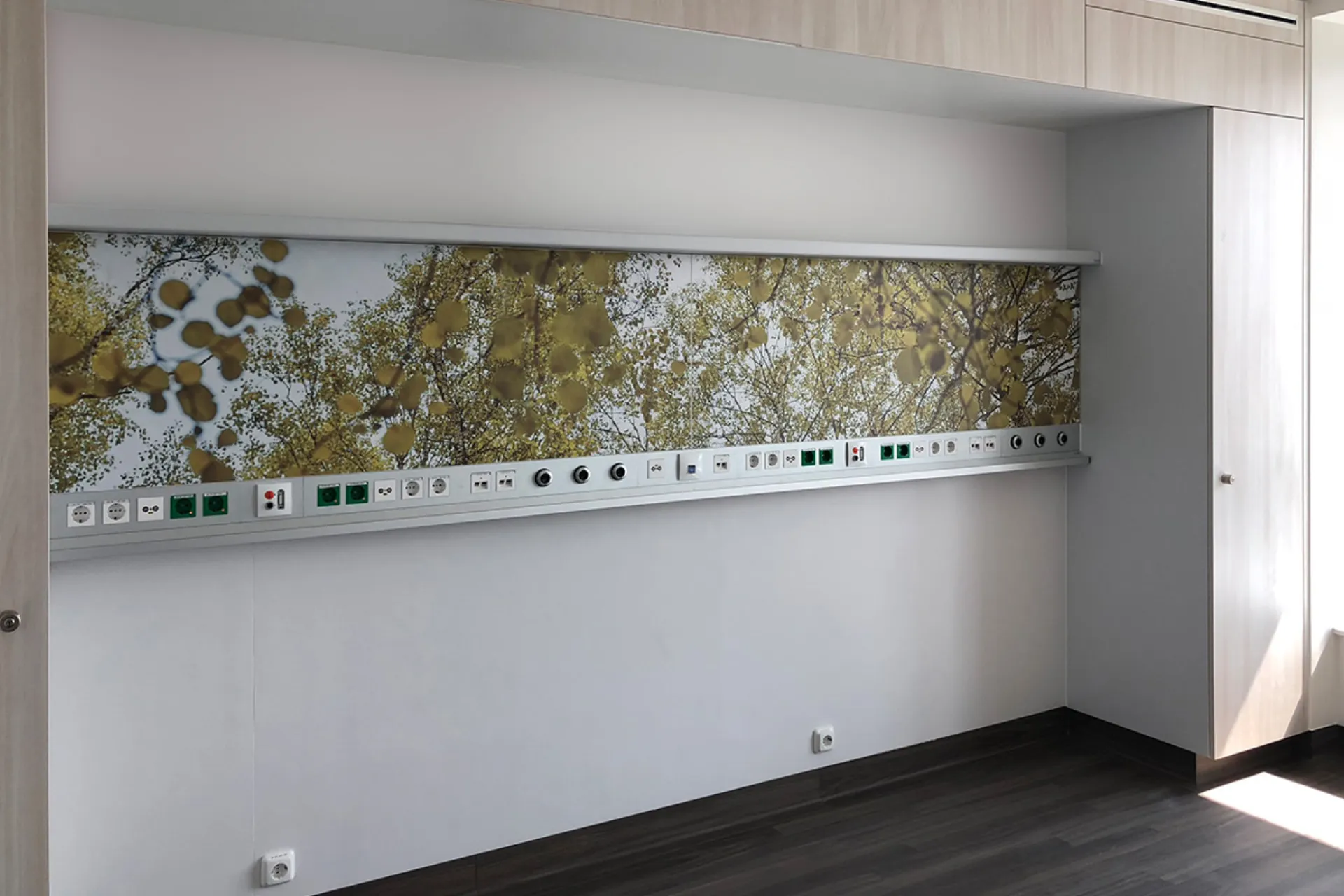

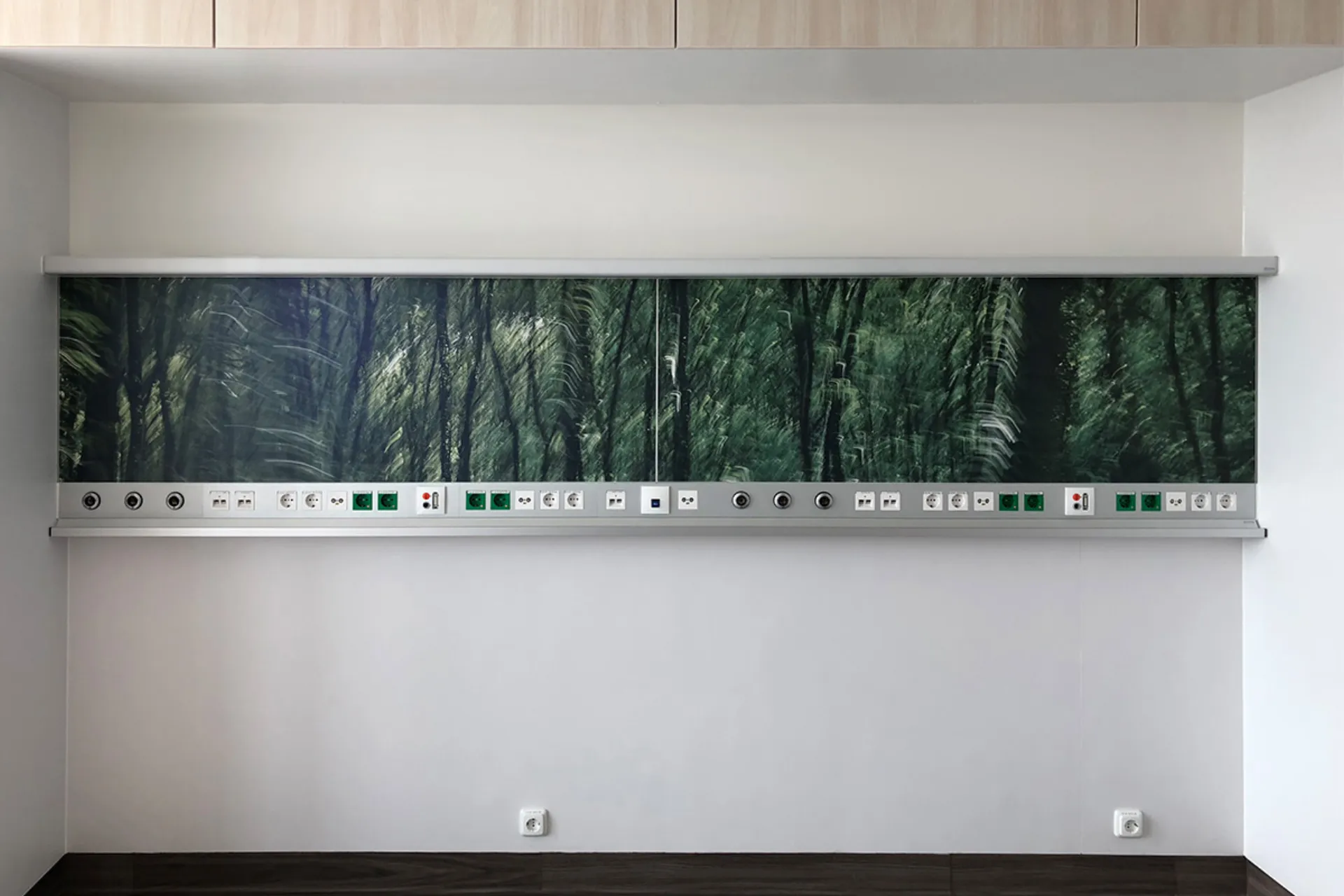

Front wooden panels with HPL decor (around 22,000 decors from all common manufacturers), alternatively individual digital printing; other materials such as imitation glass, Corian or real glass are also possible. Front panel locking possible.
Installations:
Flush at the front with a standard switch range.
Maintenance:
The system is maintenance-free. Plates are easily removable using the supplied special tool for straightforward service access.
Medical Accessories:
An equipment groove integrated on the underside of the medical wall luminaire for the tool-free attachment of accessory elements, which can be moved without tools and continuously. A version with standard equipment rails is optionally available.
Luminaires:
A choice of various medical wall luminaires (S120, S130).
Lighting:
General lighting 3,000 K / 4,000 K or Schyns Biologic Health Light 1,800 K to 16,000 K, adjustable reading light (mechanical / electronic), colour rendering CRI > 90; COI < 3.3, flicker-free, switchable, dimmable DALI or Casambi, examination light, extended examination light 500 lux or treatment light up to 1,000 lux, Backlight option.
Media Entry:
At the front face or rear.
Flexibility:
Free choice of colour, varying illuminance levels; supply profiles can also be installed in multiple runs and at different positions within the product; optional integration of a media arm and sound system possible.
Dimensions:
Freely selectable, also ceiling-high as a sky version.
Add-Ons
Additional options for the free03
Our add-ons make every supply unit more functional, flexible, and well-thought-out. For anyone who wants to improve processes, optimize spaces, and fully utilize their potential.
Our contribution to a more humane healthcare system
healing architecture for all senses
We design spaces that provide tangible support to staff and patients.
A modern patient environment must offer more than just functionality.
As part of interior design, we are responsible for ensuring that technical equipment and architectural atmosphere form a harmonious whole. This approach has guided us for many years – as Alphonse Schyns once said: A hospital does not have to look like a hospital. This idea continues to influence our work today. Our products are developed in collaboration with our customers. This direct exchange ensures that every solution works in the everyday environment of clinics and care facilities: clear, robust, hygienic, and well thought-out exactly where it matters most.
Our work follows the principles of healing architecture. We design spaces that provide tangible support to staff and patients, promote calm, and facilitate processes. This is not a fashionable concept, but an approach that has proven itself over decades.
The multisensory approach—healing architecture for all senses—is a central component of this. Light, acoustics, materials, haptics, and intuitive orientation are specifically coordinated to reduce stress, create clarity, and generate a tangibly soothing environment. This creates an atmosphere that is both professional and relaxing.
Our supply units fit seamlessly into this overall concept as an important component: ergonomic, hygienically designed, and durable. They support staff in their daily work and provide patients with safety and orientation.
This is how we combine technical precision, many years of experience, and a clear design philosophy—and consistently think ahead to the patient rooms of the future.
Over 1,250 options for your individual solution
Brochure as PDFThe bespoke concept offers an enormous variety of design options. Combining the numerous categories and options creates over 1,250 different variations - depending on which elements you select and how they are combined. This number shows the range of individual configurations that allows you to tailor your solution exactly to your needs.
