Gooseneck Luminaire ZEUS

flexible gooseneck luminaire

Advice on this product   Technical details

The flexible gooseneck luminaire ZEUS combines precise light guidance, high-quality materials and robust construction in a particularly compact design. The delicate luminaire head enables infinite focusing of the beam angle from 30° to 85° by simply turning the luminaire head – ideal for targeted lighting at the patient bed. The additional reading light at the patient bed is a required equipment feature in the premium-service room.

For maximum ease of operation, the luminaire head can be tilted through 180° and rotated through 360°. In combination with the highly flexible flexible shaft, the warm-white light at 2,700 K and a colour rendering index of CRI > 90 can be aimed precisely and with low glare.

Application examples

Horizontally running ZEUS gooseneck luminaire with a black textile sheath and a slim black luminaire head against a white background

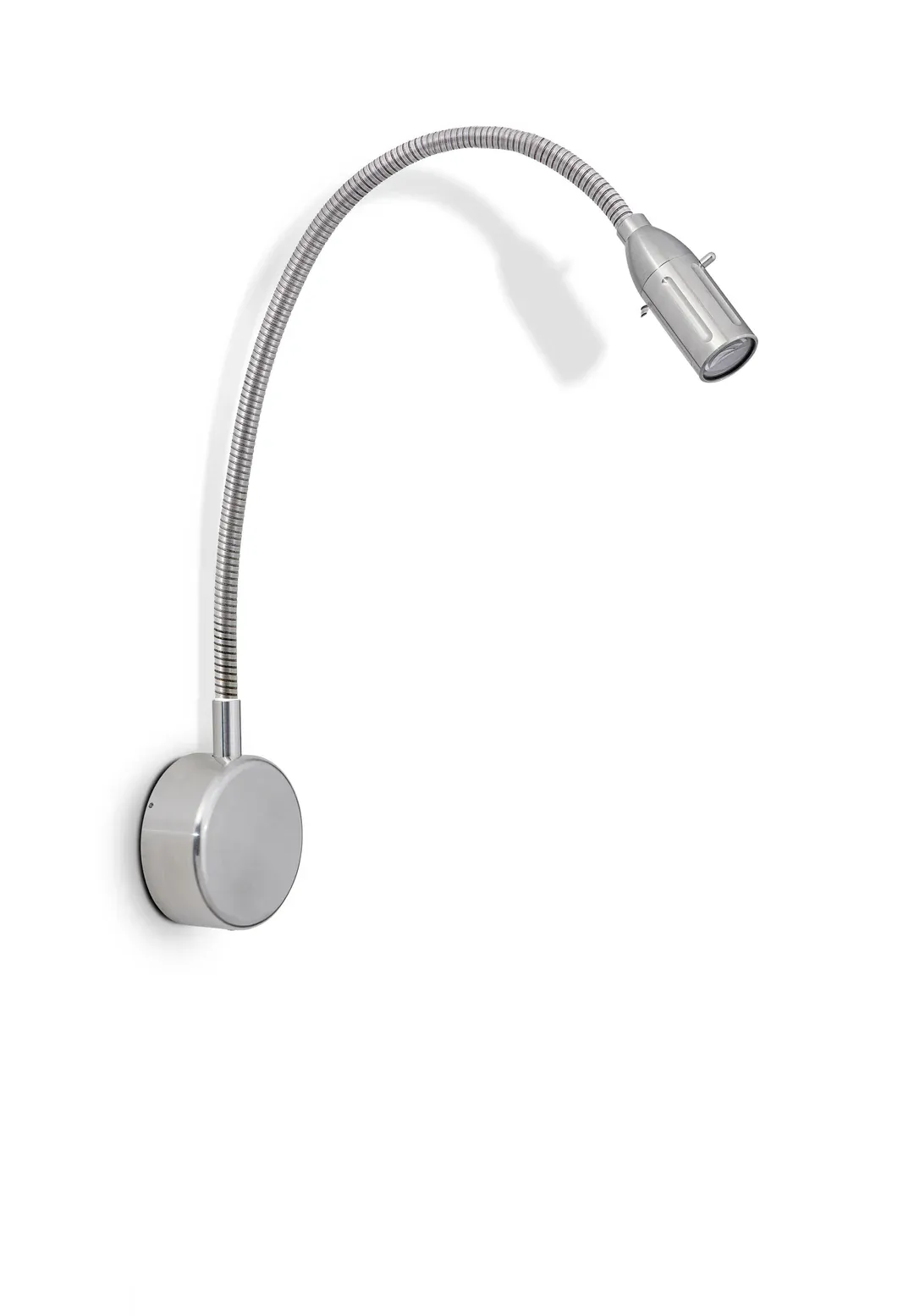

Silver-coloured ZEUS gooseneck luminaire with a chrome-look metal flexible shaft, round polished wall base and slender luminaire head in an elegant curve

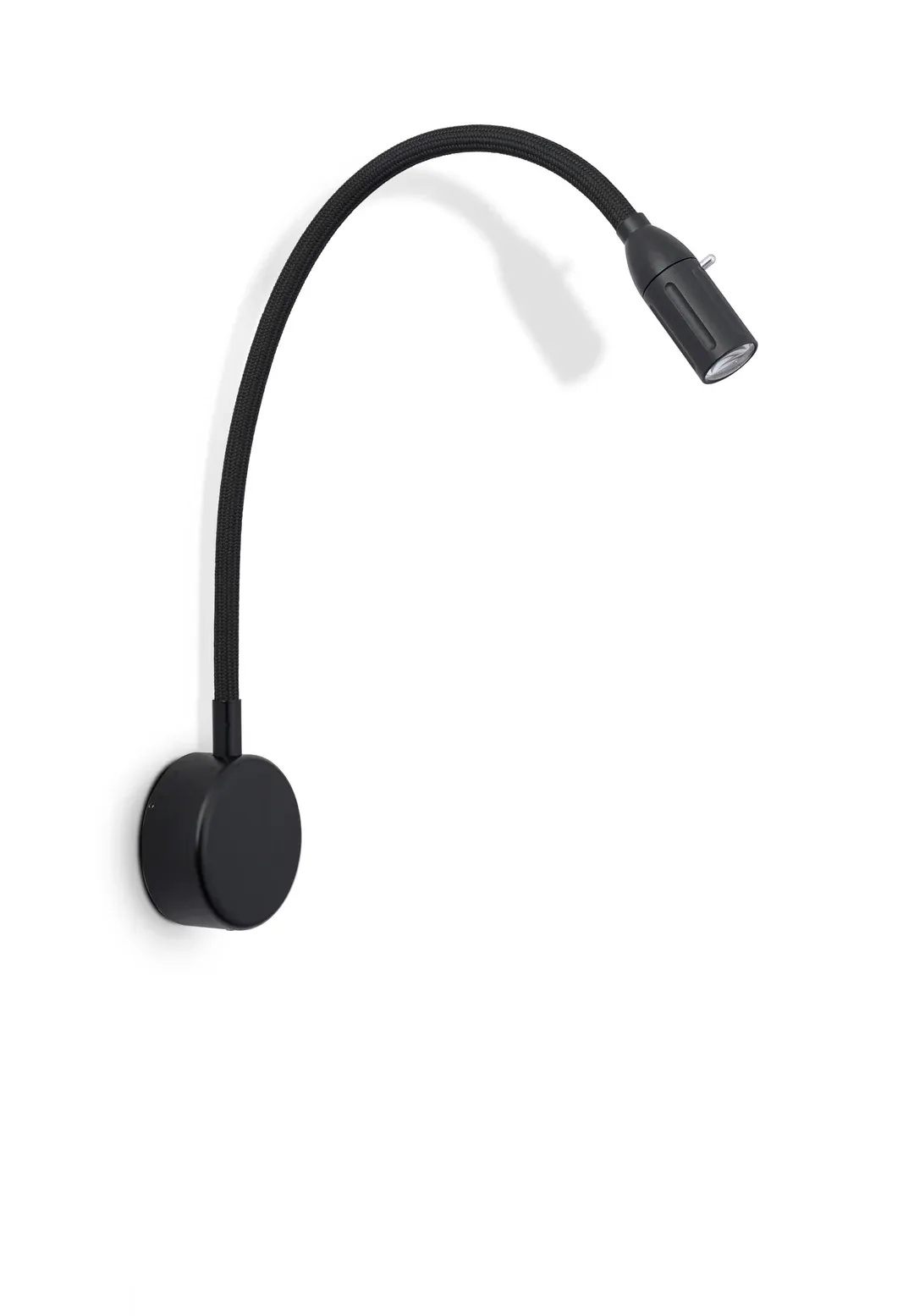

Black ZEUS gooseneck luminaire with a textile-sheathed flexible shaft, a round black wall base and a slim black luminaire head in a high arc

Efficiency, Flexibility and Robustness in Detail

Despite its compact design, the luminaire achieves a gross luminous flux of 600 lumens with a power consumption of just 6 watts, giving a high efficiency of 100 lm/W. The LED technology used delivers an impressive service life of over 50,000 hours (L80B10); the LED can be replaced.

The flexible shaft, made of wound spring steel with an integrated copper core, offers high long-term fatigue resistance and has been extensively proven in demanding hotel applications.

Thanks to the polyolefin sheathing of the flexible shaft and the use of anodising, the luminaire is also characterised by exceptional durability, high mechanical robustness and outstanding resistance to cleaning agents and disinfectants – ideal prerequisites for permanent use in hospitals and care facilities.

All components of the luminaire are designed to be replaceable. This supports sustainable use over many years, reduces resource consumption and simplifies servicing and maintenance processes.

Mounting is via a high-quality aluminium base with rear screw fixing. The luminaire is switched via a push-button in the medical supply unit or via the handset of the nurse call system (both variants are subject to a surcharge).

Technical details

Material:

Aluminium / polyolefin / spring steel.

Anodising:

Durable, abrasion- and UV-resistant black anodising (standard); further anodising colours available, including chrome.

Lighting:

Gross luminous flux 600 lm, colour temperature 2,700 K, colour stability MacAdam Step 3, colour rendering index CRI > 90, power 6 W, focusing via rotatable luminaire head, beam angle 30° to 85°, dimming possible on request, switched externally or optionally via a push button in the medical supply unit or via nurse call (surcharge applies).

Efficiency:

100 lm/W.

Mounting Type:

Installation in the supply channel or wood panel.

Flexibility:

All parts individually replaceable; flexible shaft available in other lengths on request.

Hygiene:

Easy-to-clean components.

Dimensions:

approx. Ø 28 mm (luminaire head), approx. length 350 mm (flexible shaft).

Mechanical Focus System

The mechanical focus system enables finely tuned light control
