A satin-finished acrylic cover ensures effective light distribution. The front light strip can be fitted with the required direct-beam reading lights. It is available both in a standard length of 1,208 mm and in variable lengths in order to respond to the architectural conditions.
The S120 offers the option of continuously shifting the reading lights horizontally. This allows medical staff to respond very flexibly to the occupancy of the care rooms and to realise a wide range of scenarios, for example moving the bedside table to the other side of the bed when required.
At Schyns we know that light is far more than a functional element. For architects and planners, light is a central design tool that defines spaces, provides orientation and directly influences the wellbeing of patients, visitors and staff. In hospitals and care facilities, the right lighting design can promote healing processes, improve mood and at the same time enable efficient working.
Our luminaires can be set precisely for different visual tasks: from precise diagnostics and medication dispensing through to general patient care. The COI value ensures that colours are rendered true to life and diagnostic reliability is enhanced.
Application examples
Perfect Integration into Existing Systems

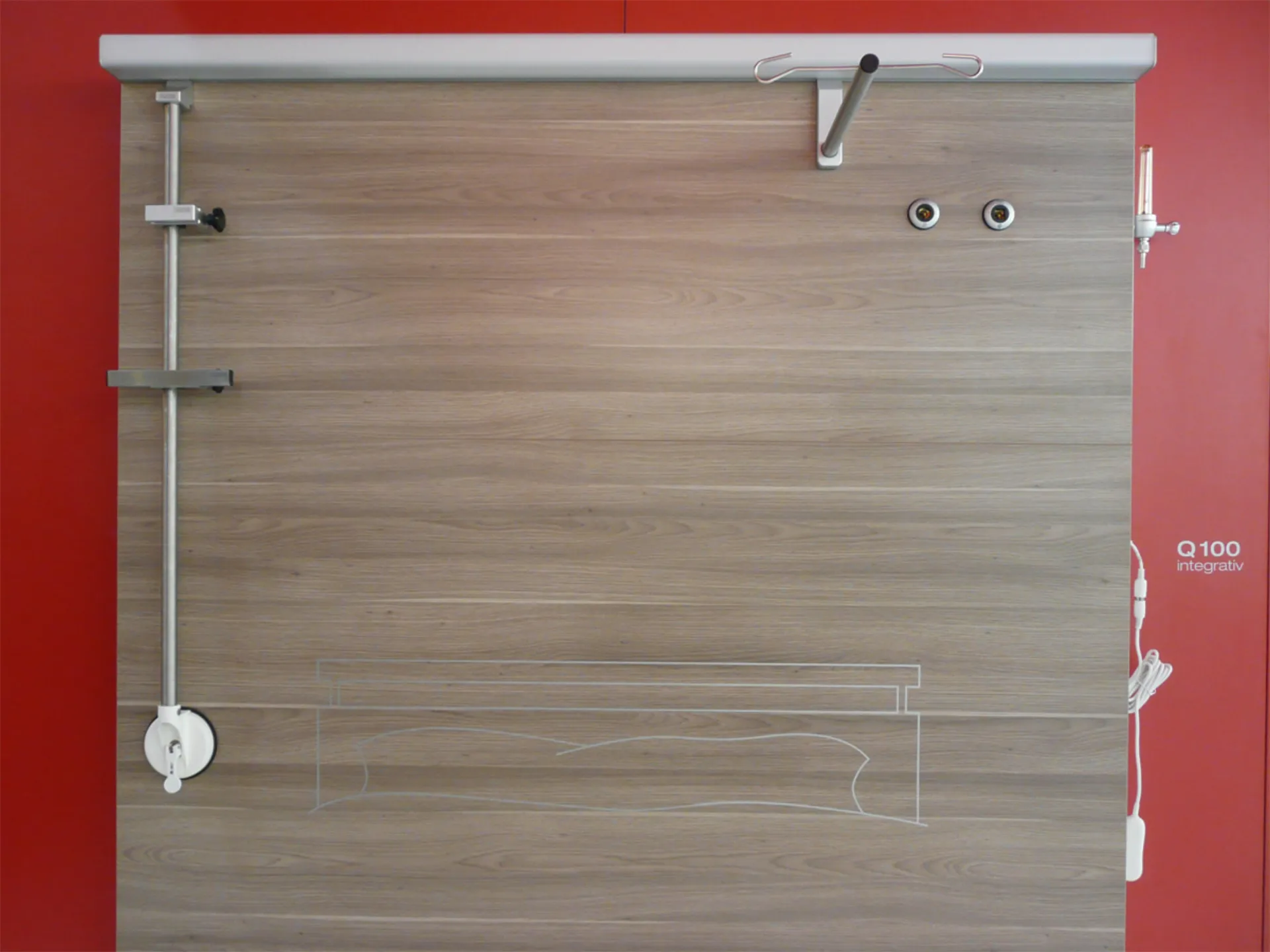

The medical wall luminaire is fully compatible with all Schyns Q100 systems and takes its cue, in terms of materiality and design, from our medical supply units. It is supplied ready for connection with terminal blocks, is fully wired through and can optionally be equipped with relays, switches and other control elements.
Technical details
Material:
Extruded aluminium profile, naturally anodised, with recycled content.
Anodising:
Durable, abrasion- and UV-resistant natural anodising (standard); further anodising colours possible.
Front Design:
Satin acrylic.
Installations:
Available flush-mounted on the underside with a standard switch range.
Maintenance:
System is maintenance-free.

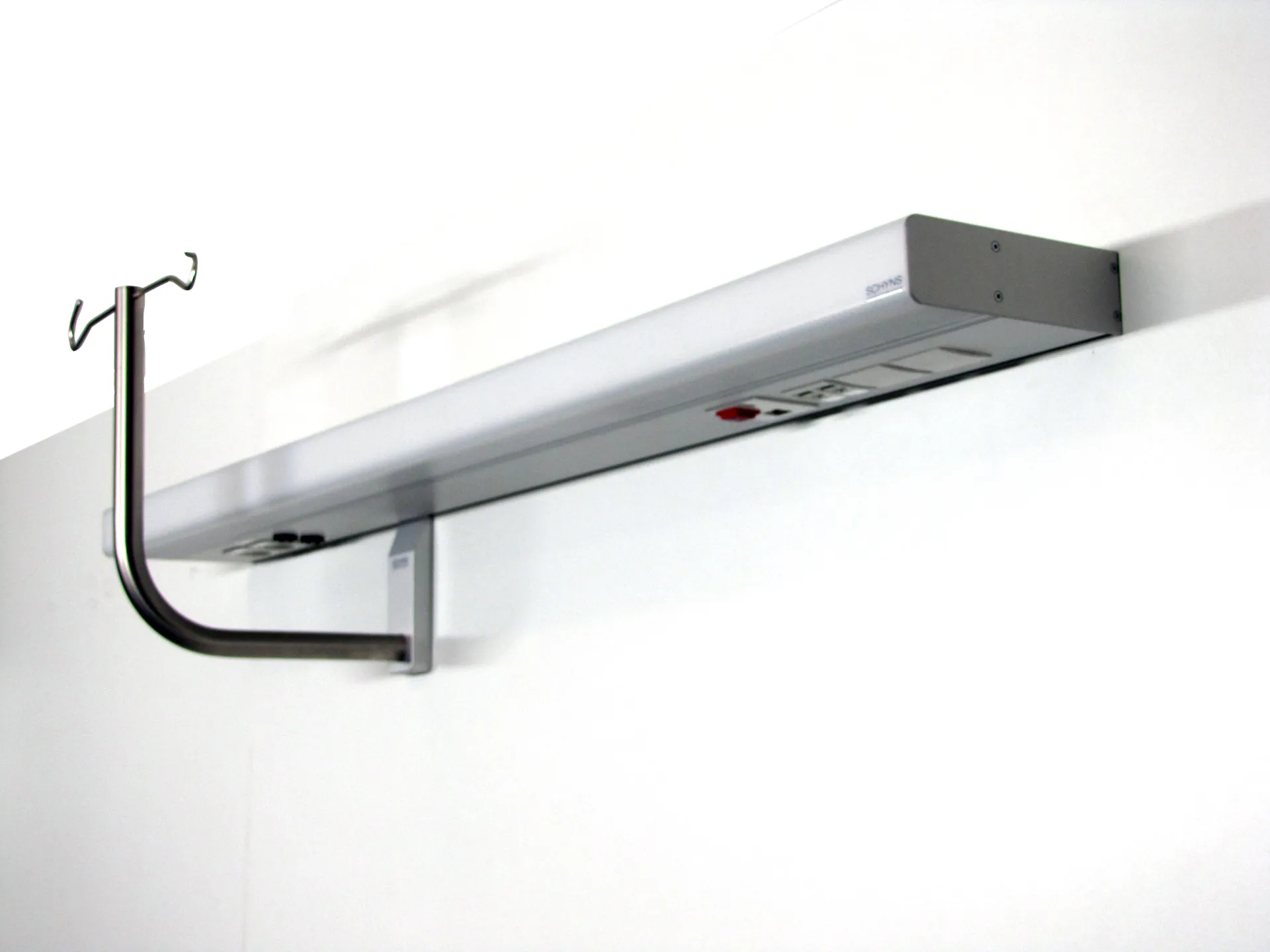

Medical Accessories:

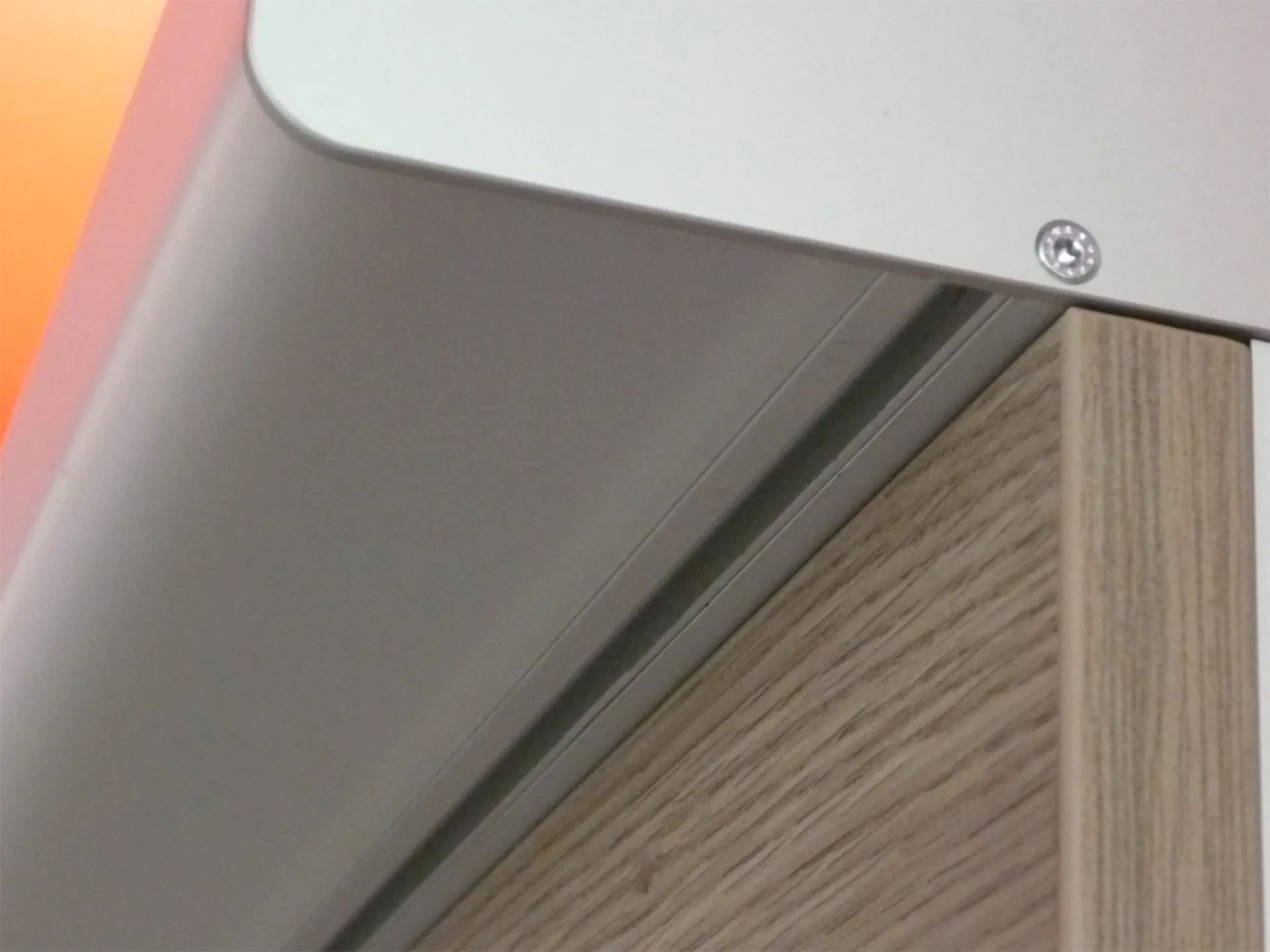

Schyns accessory groove integrated on the underside of the medical wall luminaire for the tool-free mounting of accessory elements, which can be shifted continuously and without tools.
Lighting:
General lighting 3,000 K / 4,000 K or Schyns Biologic Health Light 1,800 K to 16,000 K, slidable reading light (mechanical / electronic), colour rendering CRI > 90; COI < 3.3, flicker-free, switchable, dimmable DALI or Casambi, examination light, extended examination light 500 lux or treatment light up to 1,000 lux.
Efficiency:
See data sheet.
Media Entry:
At the front face or rear.
Flexibility:
Free choice of colour, different lighting intensities possible.
Hygiene:
Easy-to-clean surfaces with no surface-mounted components.
Dimensions:
See data sheet; overall length freely selectable up to 6,000 mm.
Add-Ons
Additional options for the S120
Our add-ons make every supply unit more functional, flexible, and well-thought-out. For anyone who wants to improve processes, optimize spaces, and fully utilize their potential.
Our contribution to a more humane healthcare system
healing architecture for all senses
We design spaces that provide tangible support to staff and patients.
A modern patient environment must offer more than just functionality.
As part of interior design, we are responsible for ensuring that technical equipment and architectural atmosphere form a harmonious whole. This approach has guided us for many years – as Alphonse Schyns once said: A hospital does not have to look like a hospital. This idea continues to influence our work today. Our products are developed in collaboration with our customers. This direct exchange ensures that every solution works in the everyday environment of clinics and care facilities: clear, robust, hygienic, and well thought-out exactly where it matters most.
Our work follows the principles of healing architecture. We design spaces that provide tangible support to staff and patients, promote calm, and facilitate processes. This is not a fashionable concept, but an approach that has proven itself over decades.
The multisensory approach—healing architecture for all senses—is a central component of this. Light, acoustics, materials, haptics, and intuitive orientation are specifically coordinated to reduce stress, create clarity, and generate a tangibly soothing environment. This creates an atmosphere that is both professional and relaxing.
Our supply units fit seamlessly into this overall concept as an important component: ergonomic, hygienically designed, and durable. They support staff in their daily work and provide patients with safety and orientation.
This is how we combine technical precision, many years of experience, and a clear design philosophy—and consistently think ahead to the patient rooms of the future.
Over 1,250 options for your individual solution
Brochure as PDFThe bespoke concept offers an enormous variety of design options. Combining the numerous categories and options creates over 1,250 different variations - depending on which elements you select and how they are combined. This number shows the range of individual configurations that allows you to tailor your solution exactly to your needs.
