Lighting design in healthcare has long been about far more than pure functionality. What is called for are solutions that not only illuminate rooms optimally but also create atmosphere and establish architectural identity. The Schyns S130 was developed precisely for this requirement – based on over 40 years of experience in the medical environment.

Application examples

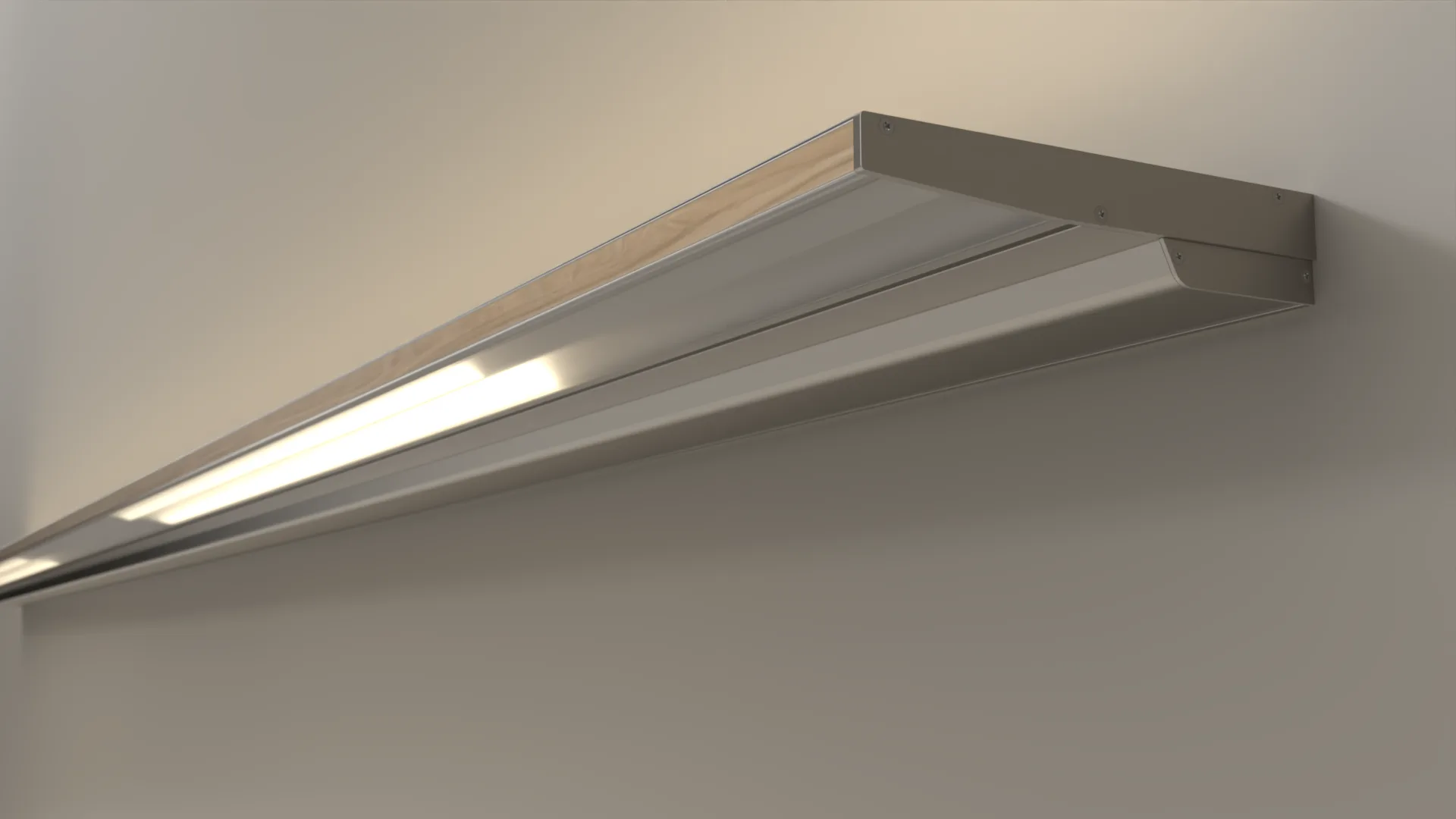

Slender wall luminaire S 130 in naturally anodised aluminium with indirect light on a bright wall

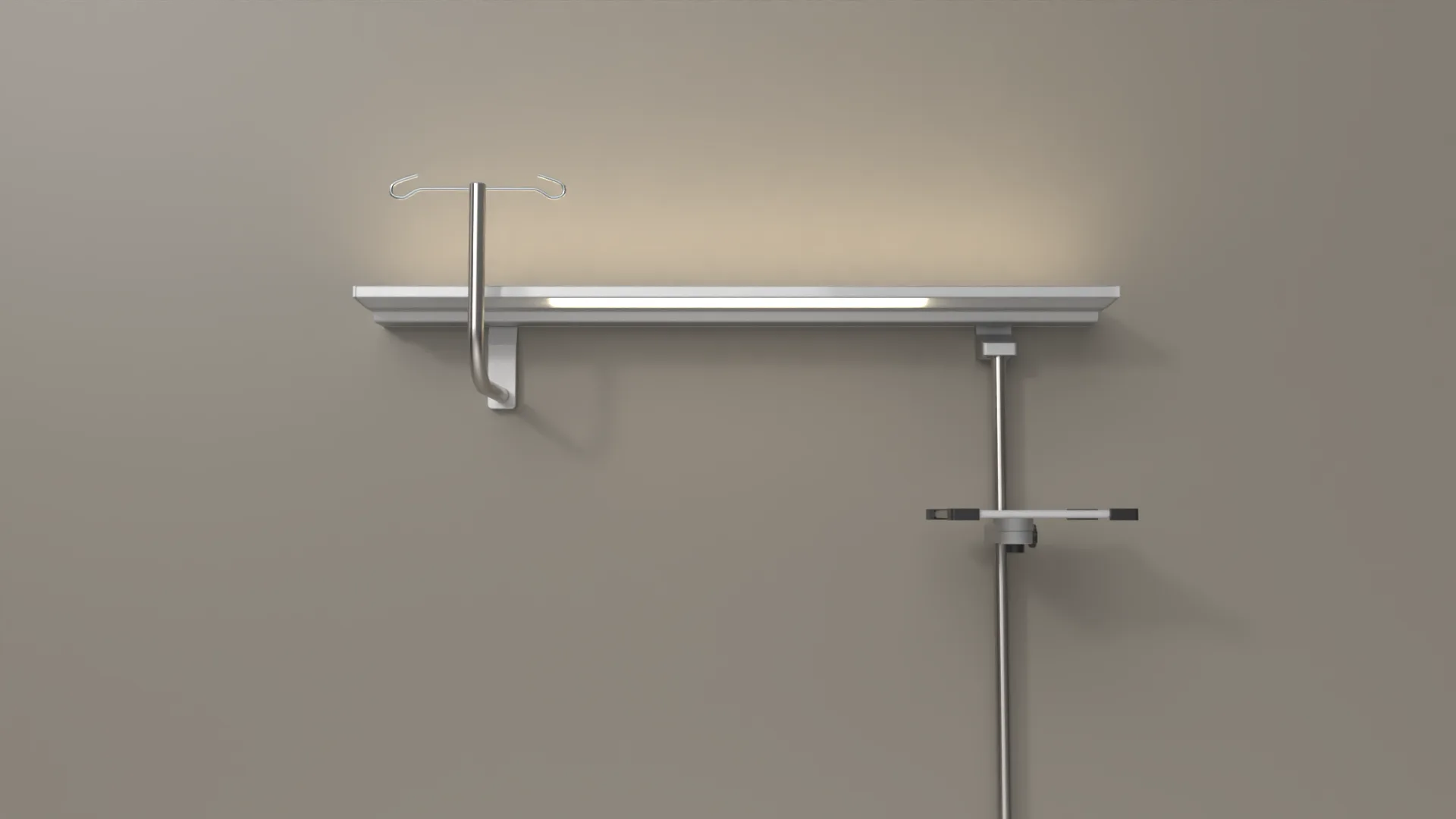

S 130 aluminium wall luminaire with an attached IV stand and equipment rail on a grey wall

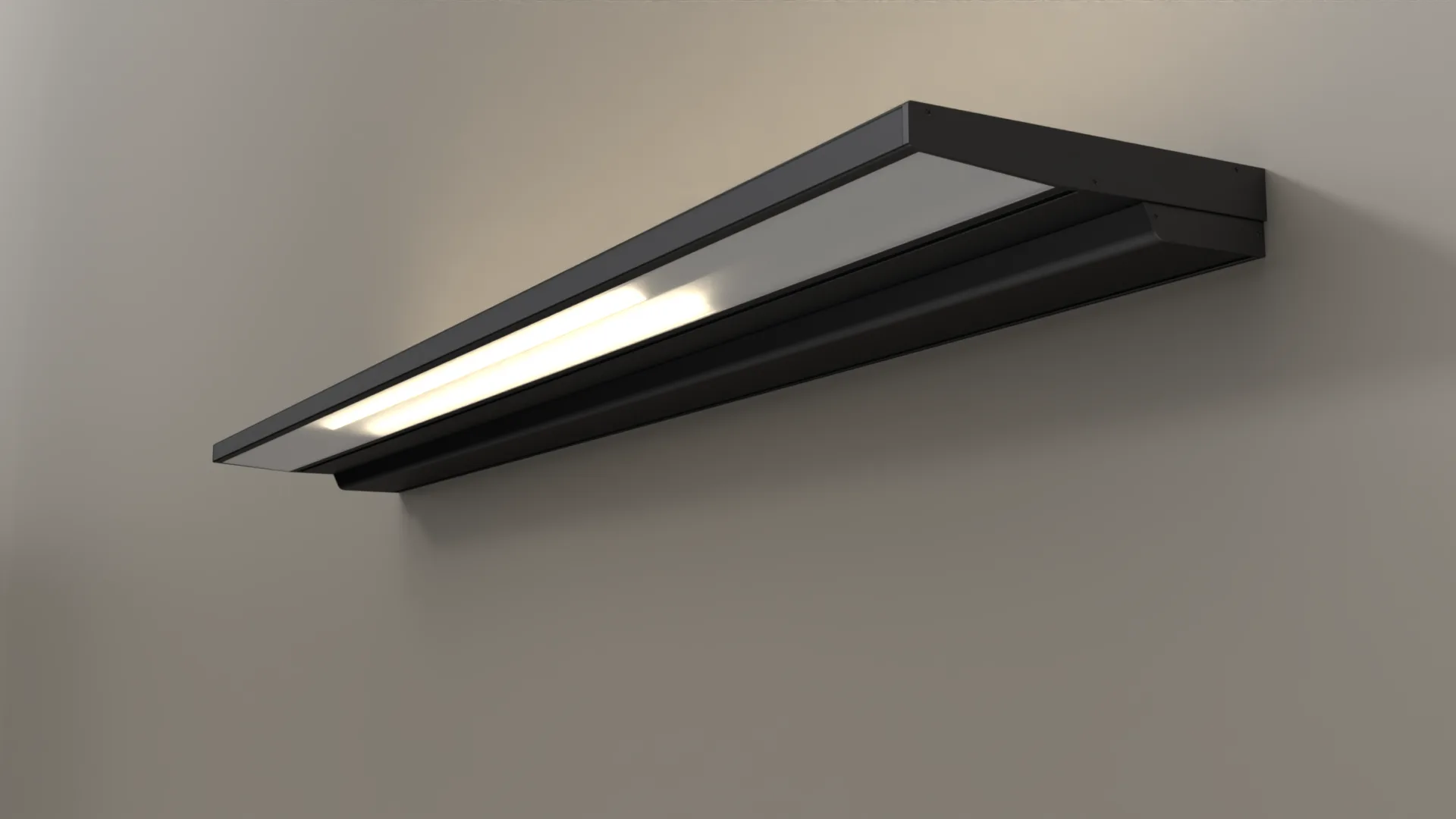

S 130 wall luminaire in a black finish with indirect lighting on a light-coloured wall

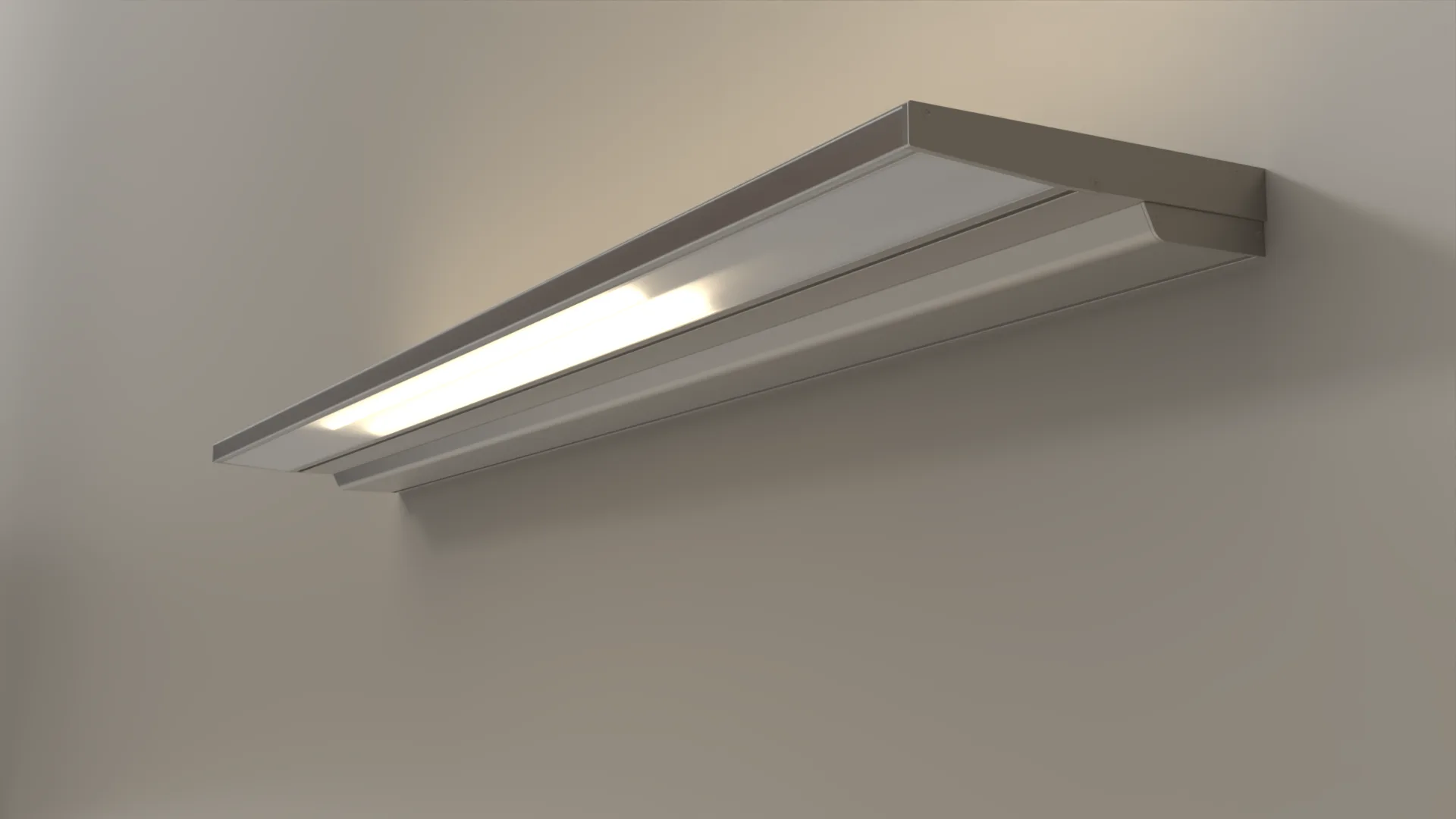

Angled view from below of the S 130 wall luminaire made of anodised aluminium with indirect light output upwards

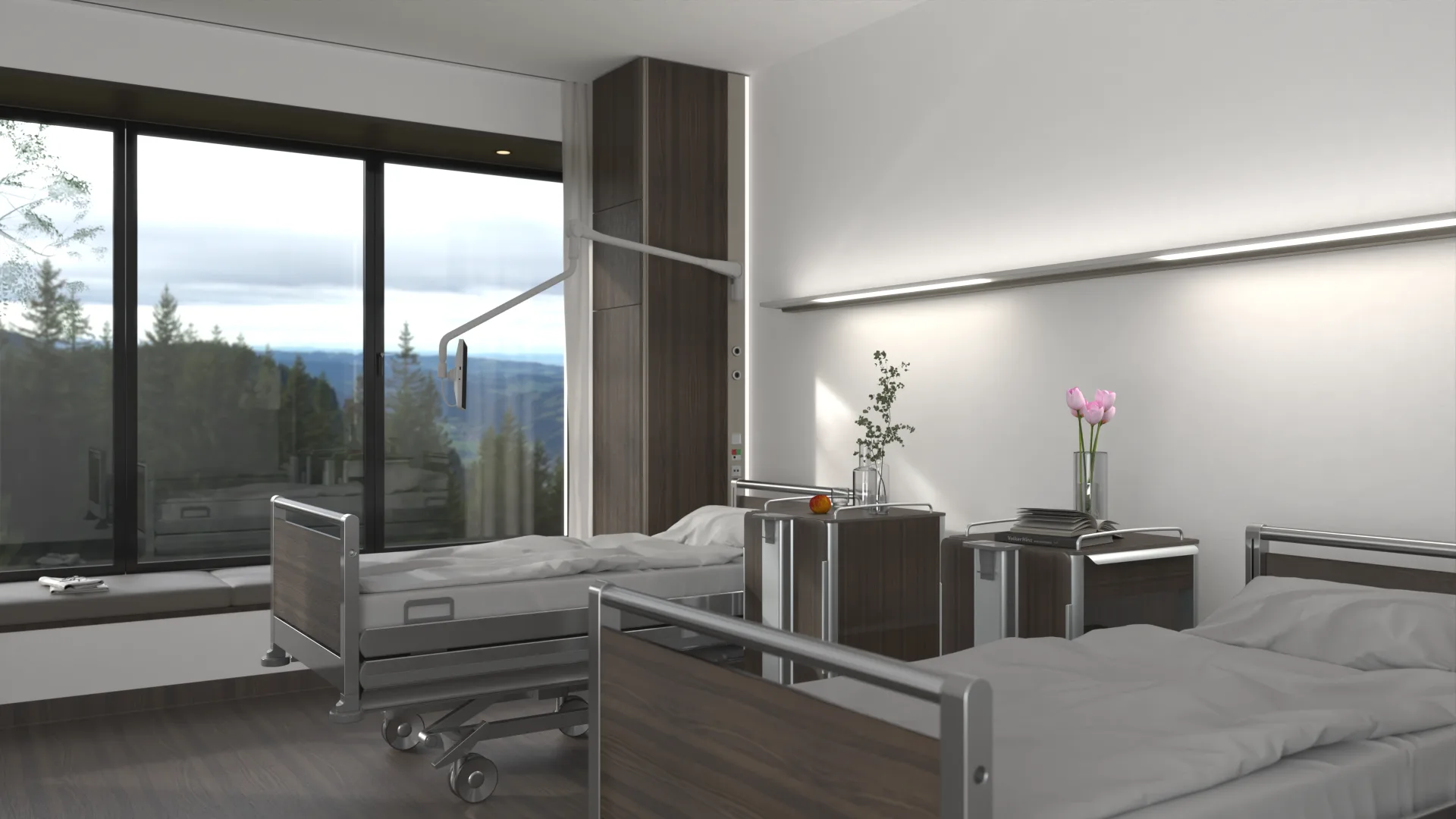

Twin room with S 130 wall luminaires above the beds, dark wooden bedside tables, pink flowers in vases and a large window looking out over a forested mountain landscape

Clear Design – High-Quality Materials

The end caps made of anodised aluminium blend harmoniously into the material appearance and lend the luminaire a discreet yet high-quality accent. The extruded aluminium profiles are naturally anodised. This makes them resistant to wear and easy to clean.

The optional HPL front blends seamlessly into the material concept of the room and harmonises with the surfaces of the rest of the furnishings. The light-emitting surfaces are made of a plastic developed specifically for use in healthcare – durable, hygienic and with optimal optical properties for an even light distribution.

Flexible for Any Planning

With a standard length of 1,200 mm and the option of flexible length adjustment, the S130 fits perfectly into different room concepts – from single rooms through to multi-bed solutions.

The continuous Schyns accessory groove allows medical devices and accessories to be mounted without tools, so the patient environment can be adapted quickly and easily to changing requirements. An electronically adjustable reading light is optionally available, allowing the patient bed to be positioned freely beneath the luminaire without losing the optimal illumination.

Light Quality that Exceeds Standards

With colour rendering well above the usual standard values, the S130 ensures a natural, high-contrast representation. This not only supports medical activities but also contributes to the wellbeing of patients and staff.

Perfect Integration into Existing Systems

The medical wall luminaire is fully compatible with all Schyns Q100 systems and takes its cue, in terms of materiality and design, from our medical supply units. It is supplied ready for connection with terminal blocks, is fully wired through and can optionally be equipped with relays, switches and other control elements.

Technical details

Material:

Extruded aluminium profile, natural-anodised, with recycled content;

Anodising:

Durable, abrasion- and UV-resistant natural anodising (standard); further anodising colours possible.

Front Design:

White PMMA profile, satined, or special version of clear PMMA profile with a backing HPL décor strip.

Maintenance:

System is maintenance-free.

Medical Accessories:

Schyns accessory groove integrated on the underside of the medical wall luminaire for the tool-free mounting of accessory elements, which can be shifted continuously and without tools.

Lighting:

General lighting 3,000 K / 4,000 K or Schyns Biologic Health Light 1,800 K to 16,000 K, slidable reading light (mechanical / electronic), colour rendering CRI > 90; COI < 3.3, flicker-free, switchable, dimmable DALI or Casambi, examination light, extended examination light 500 lux or treatment light up to 1,000 lux.

Efficiency:

See data sheet.

Media Entry:

At the front face or rear.

Flexibility:

Free choice of colour, different lighting intensities possible.

Hygiene:

Easy-to-clean surfaces with no surface-mounted components.

Dimensions:

See data sheet; overall length freely selectable up to 6,000 mm.

Add-Ons

Additional options for the S130

Our add-ons make every supply unit more functional, flexible, and well-thought-out. For anyone who wants to improve processes, optimize spaces, and fully utilize their potential.

Interior design based on the principles of healing architecture creates a supportive and soothing environment for staff and patients. More on the topic

Our contribution to a more humane healthcare system

healing architecture for all senses

We design spaces that provide tangible support to staff and patients.

A modern patient environment must offer more than just functionality.

As part of interior design, we are responsible for ensuring that technical equipment and architectural atmosphere form a harmonious whole. This approach has guided us for many years – as Alphonse Schyns once said: A hospital does not have to look like a hospital. This idea continues to influence our work today. Our products are developed in collaboration with our customers. This direct exchange ensures that every solution works in the everyday environment of clinics and care facilities: clear, robust, hygienic, and well thought-out exactly where it matters most.

Our work follows the principles of healing architecture. We design spaces that provide tangible support to staff and patients, promote calm, and facilitate processes. This is not a fashionable concept, but an approach that has proven itself over decades.

The multisensory approach—healing architecture for all senses—is a central component of this. Light, acoustics, materials, haptics, and intuitive orientation are specifically coordinated to reduce stress, create clarity, and generate a tangibly soothing environment. This creates an atmosphere that is both professional and relaxing.

Our supply units fit seamlessly into this overall concept as an important component: ergonomic, hygienically designed, and durable. They support staff in their daily work and provide patients with safety and orientation.

This is how we combine technical precision, many years of experience, and a clear design philosophy—and consistently think ahead to the patient rooms of the future.

Over 1,250 options for your individual solution

Brochure as PDF

The bespoke concept offers an enormous variety of design options. Combining the numerous categories and options creates over 1,250 different variations - depending on which elements you select and how they are combined. This number shows the range of individual configurations that allows you to tailor your solution exactly to your needs.
