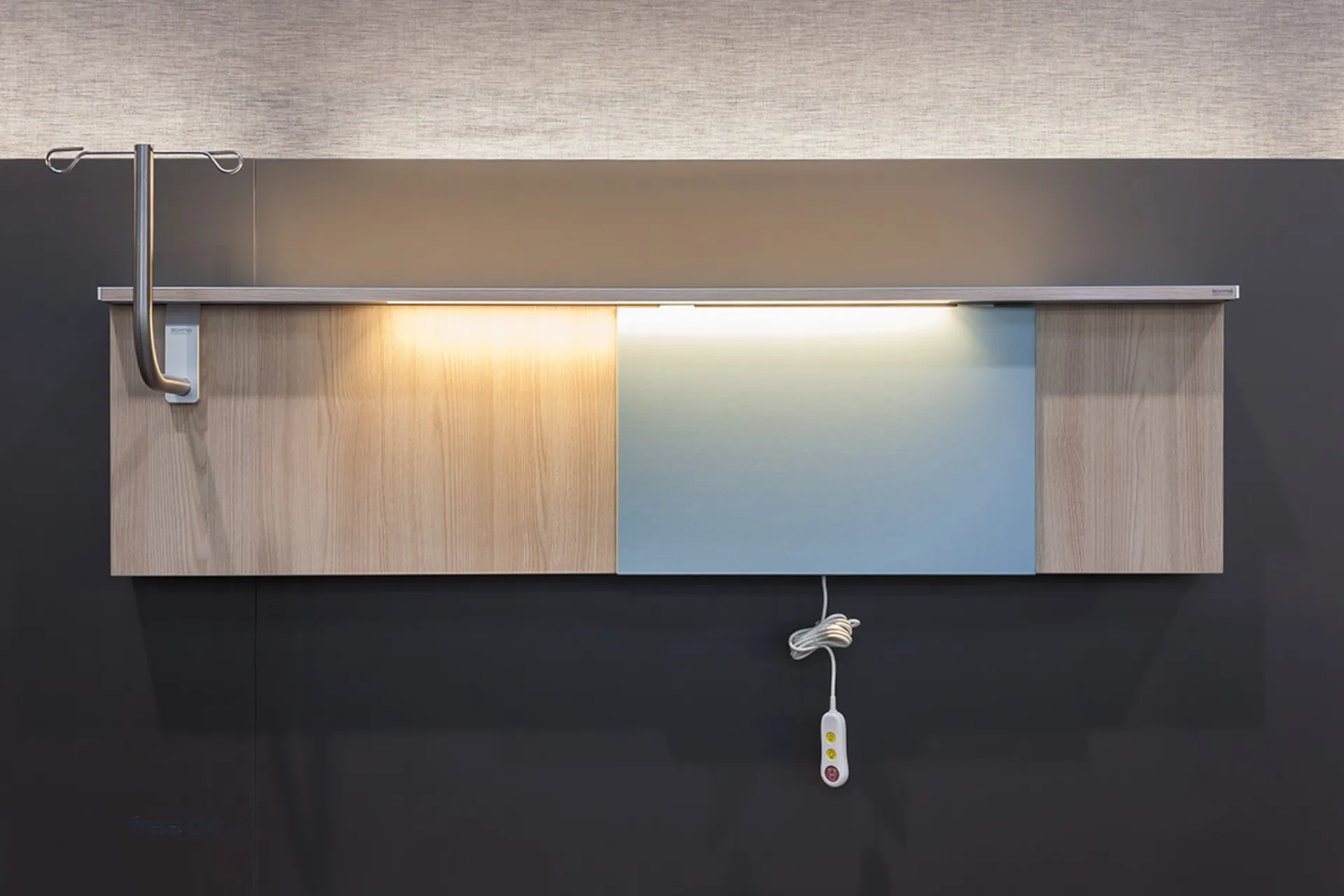

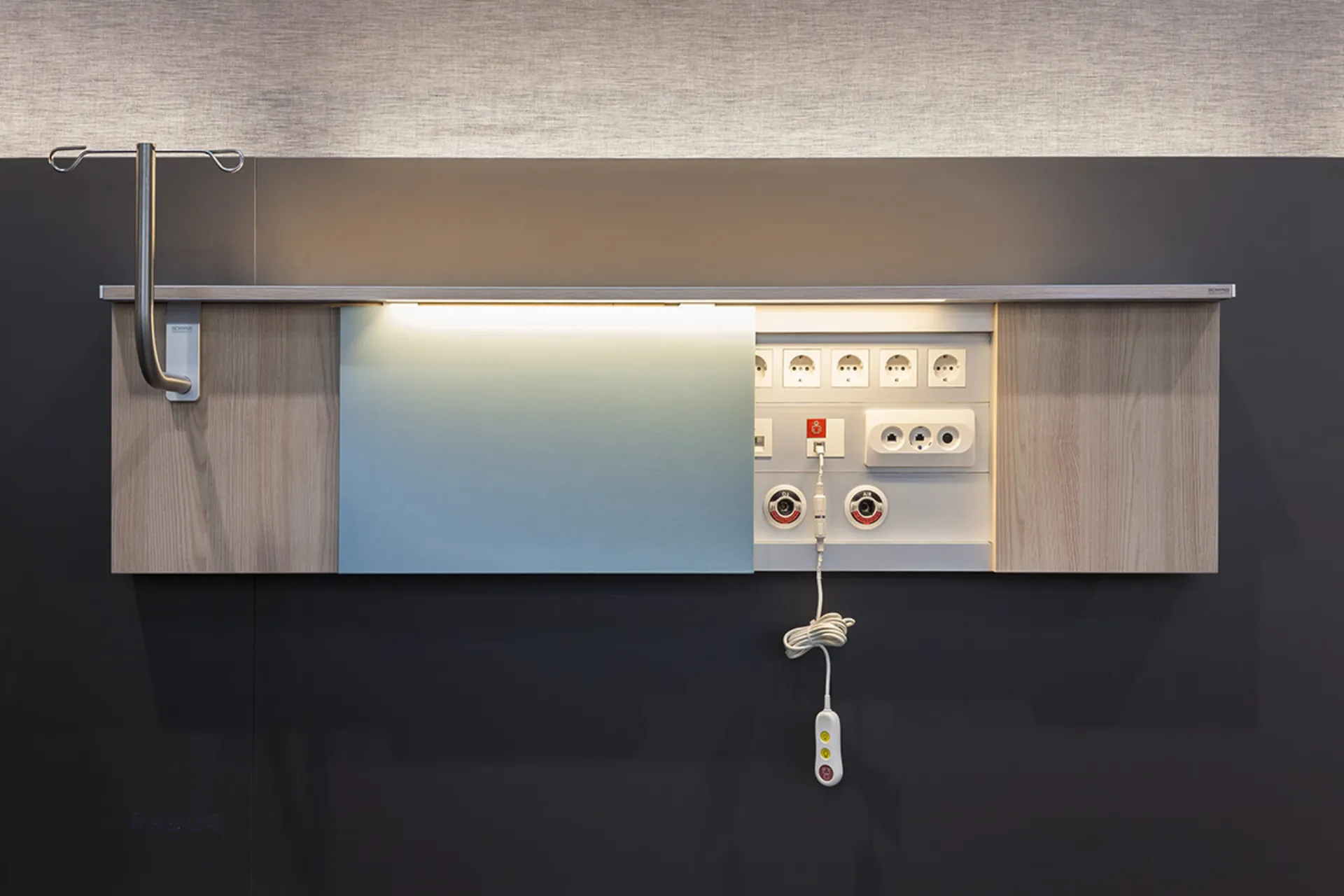

It merges with the architecture to form a single unit. The free04 breaks away from classic forms while at the same time meeting all requirements for function and ease of use. The media supply can be concealed behind a sliding wooden panel – even when plugs are inserted in the connections. The sockets for high- and low-voltage current and the medical gases are accessible directly from the front.

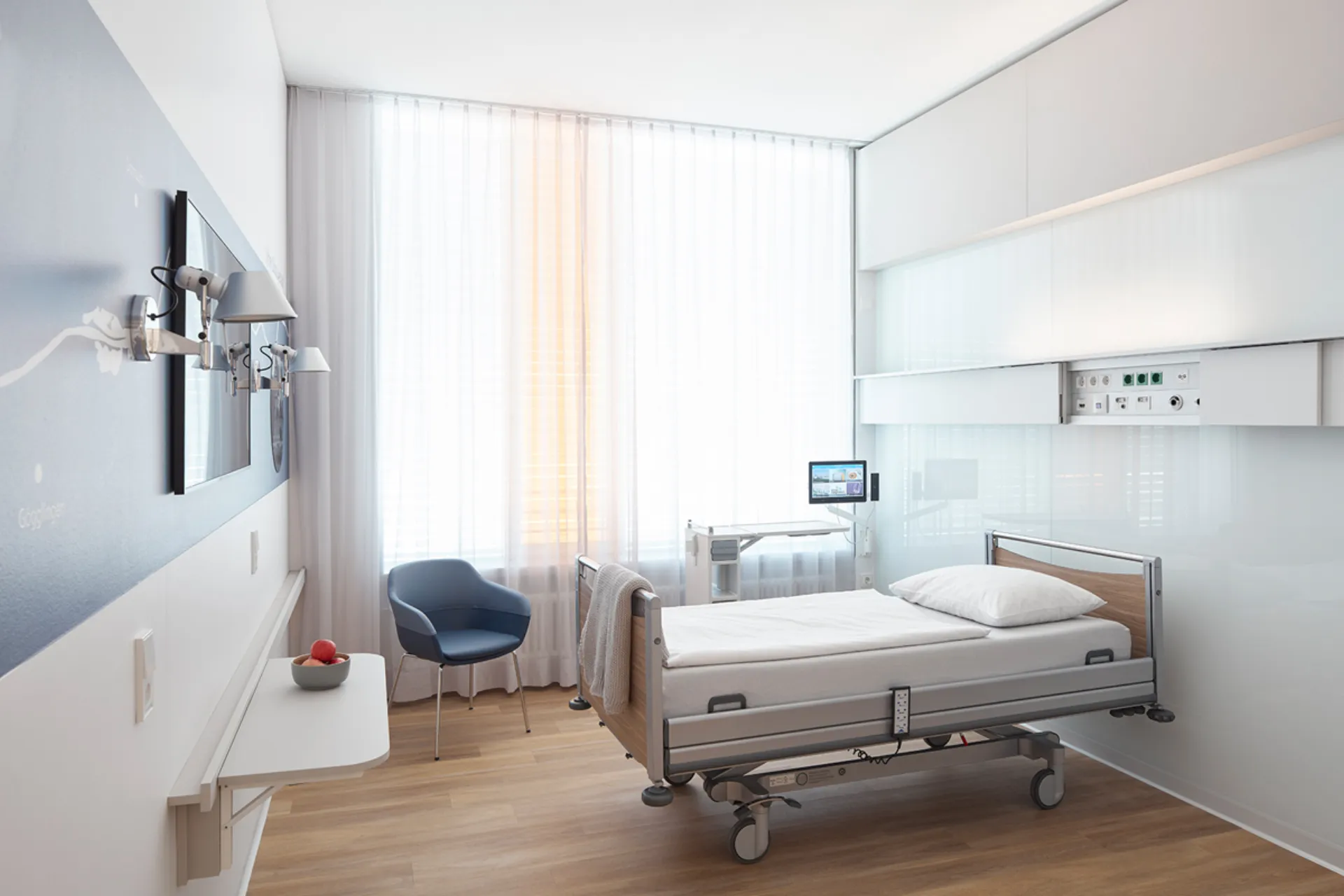

Thanks to the compact arrangement of the supply unit and luminaire elements, everything is exactly where it best serves its purpose: sockets and medical gases are conveniently within reach above the patient bed, while the light illuminates the room and the reading area.
The medical wall luminaire is mounted on the base body. There is a choice of the energy-efficient and long-lasting LED luminaires Schyns S120 or Schyns S130. Our medical wall luminaires feature indirect general lighting as well as a directly emitting, adjustable reading light. All luminaires have the Schyns accessory groove on the underside, into which practical accessories can be hooked without tools and moved continuously.
Equipped for everyday medical use: the free can of course also be fitted with a Schyns accessory groove, into which the products from the Schyns accessory range can be hung.
The harmonious combination of extruded, natural-colour anodised aluminium profiles with colour-contrasting fronts makes the free04 very high in quality. A wide variety of front decors is available, so that the supply unit integrates coherently into any room design or sets deliberate colour accents.
Extruded aluminium profile, naturally anodised with recycled content; HPL-coated chipboard.
Durable, abrasion- and UV-resistant natural anodising (standard); further anodising colours possible.
Front wooden panels with HPL decor (around 22,000 decors from all common manufacturers), alternatively individual digital printing; other materials such as imitation glass, Corian or real glass are also possible. Front panel locking possible.
Flush at the front with a standard switch range.
The system is maintenance-free. Plates are easily removable using the supplied special tool for straightforward service access.
Equipment groove integrated on the underside of the medical wall luminaire for tool-free mounting of accessory elements, which can be moved without tools and continuously.
A choice of various medical wall luminaires (S120, S130).
General lighting 3,000 K / 4,000 K or Schyns Biologic Health Light 1,800 K to 16,000 K, adjustable reading light (mechanical / electronic), colour rendering CRI > 90; COI < 3.3, flicker-free, switchable, dimmable DALI or Casambi, examination light, extended examination light 500 lux or treatment light up to 1,000 lux, Backlight option.
At the front face or rear.
Free choice of colour, varying illuminance levels; supply profiles can also be installed in multiple runs and at different positions within the product; optional integration of a media arm and sound system possible.
Freely selectable.
Add-Ons
Our add-ons make every supply unit more functional, flexible, and well-thought-out. For anyone who wants to improve processes, optimize spaces, and fully utilize their potential.
Our contribution to a more humane healthcare system
As part of interior design, we are responsible for ensuring that technical equipment and architectural atmosphere form a harmonious whole. This approach has guided us for many years – as Alphonse Schyns once said: A hospital does not have to look like a hospital. This idea continues to influence our work today. Our products are developed in collaboration with our customers. This direct exchange ensures that every solution works in the everyday environment of clinics and care facilities: clear, robust, hygienic, and well thought-out exactly where it matters most.
Our work follows the principles of healing architecture. We design spaces that provide tangible support to staff and patients, promote calm, and facilitate processes. This is not a fashionable concept, but an approach that has proven itself over decades.
The multisensory approach—healing architecture for all senses—is a central component of this. Light, acoustics, materials, haptics, and intuitive orientation are specifically coordinated to reduce stress, create clarity, and generate a tangibly soothing environment. This creates an atmosphere that is both professional and relaxing.
Our supply units fit seamlessly into this overall concept as an important component: ergonomic, hygienically designed, and durable. They support staff in their daily work and provide patients with safety and orientation.
This is how we combine technical precision, many years of experience, and a clear design philosophy—and consistently think ahead to the patient rooms of the future.
The bespoke concept offers an enormous variety of design options. Combining the numerous categories and options creates over 1,250 different variations - depending on which elements you select and how they are combined. This number shows the range of individual configurations that allows you to tailor your solution exactly to your needs.
Whether it's your initial idea or a concrete project, we'll provide you with personalized, committed advice with a holistic view. Contact us. We look forward to hearing from you.
