The medical supply unit is available in two modern versions and one classic version: thanks to its all-round thin edge, the S700 a has a particularly refined appearance, while the front of the S700 b is horizontally stretched by a slim aluminium strip.

The housing of the medical supply unit is made from extruded, natural-anodised aluminium. An HPL décor can be set flush into the front, continuing the design of the patient room across the medical supply unit – or deliberately setting accents. There is also the option of executing the front in a glass look in several plain colours.

Mounted end caps in anodised aluminium round off the high-quality impression. The top and bottom are inclined by 6°. The top is made of highly translucent PMMA (acrylic) and is extremely resistant to common cleaning agents and disinfectants.

Application examples

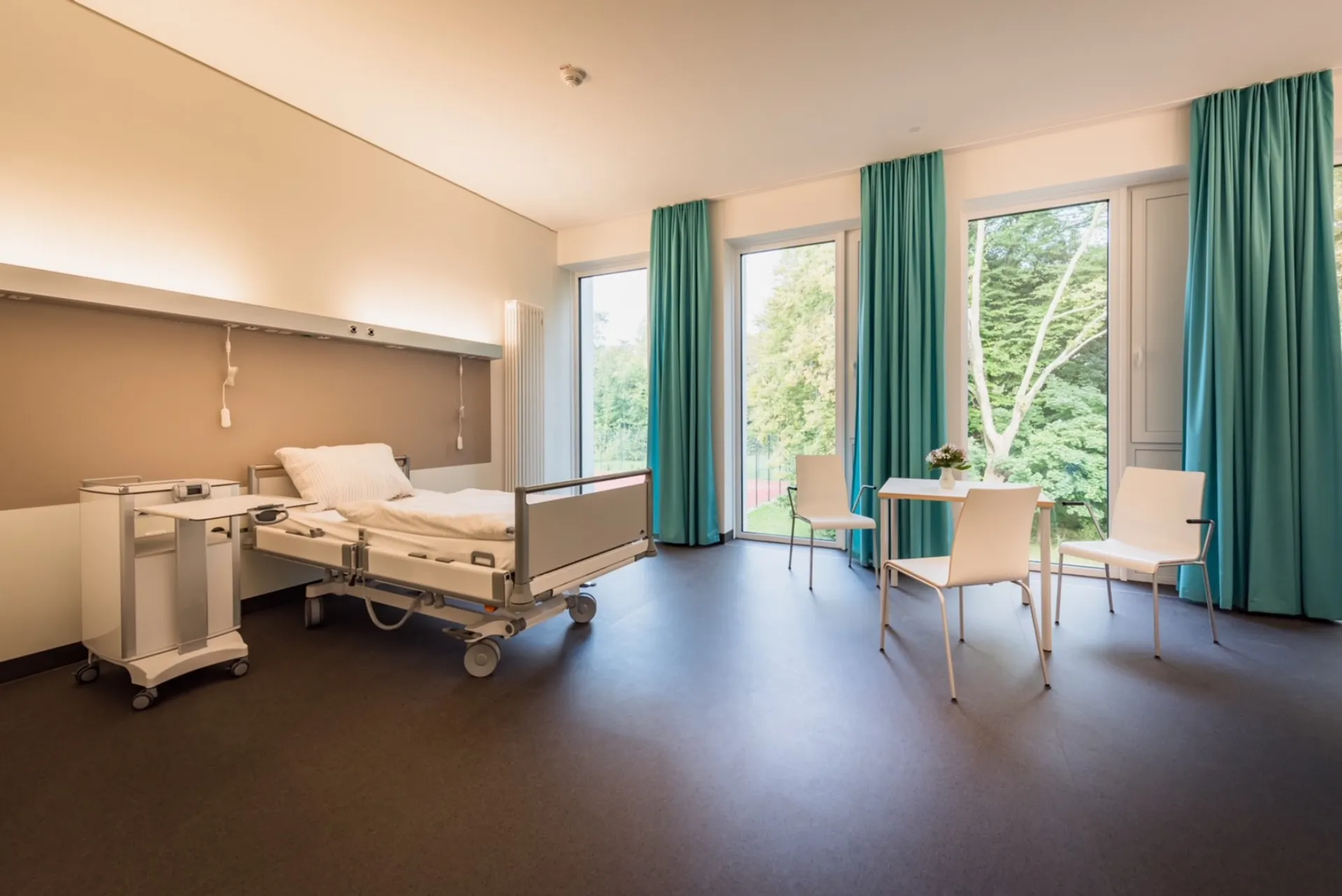

Hospital room with a care bed, a bedside table, a table and chairs in front of large windows with green curtains
Aluminium housing with a freely configurable front.

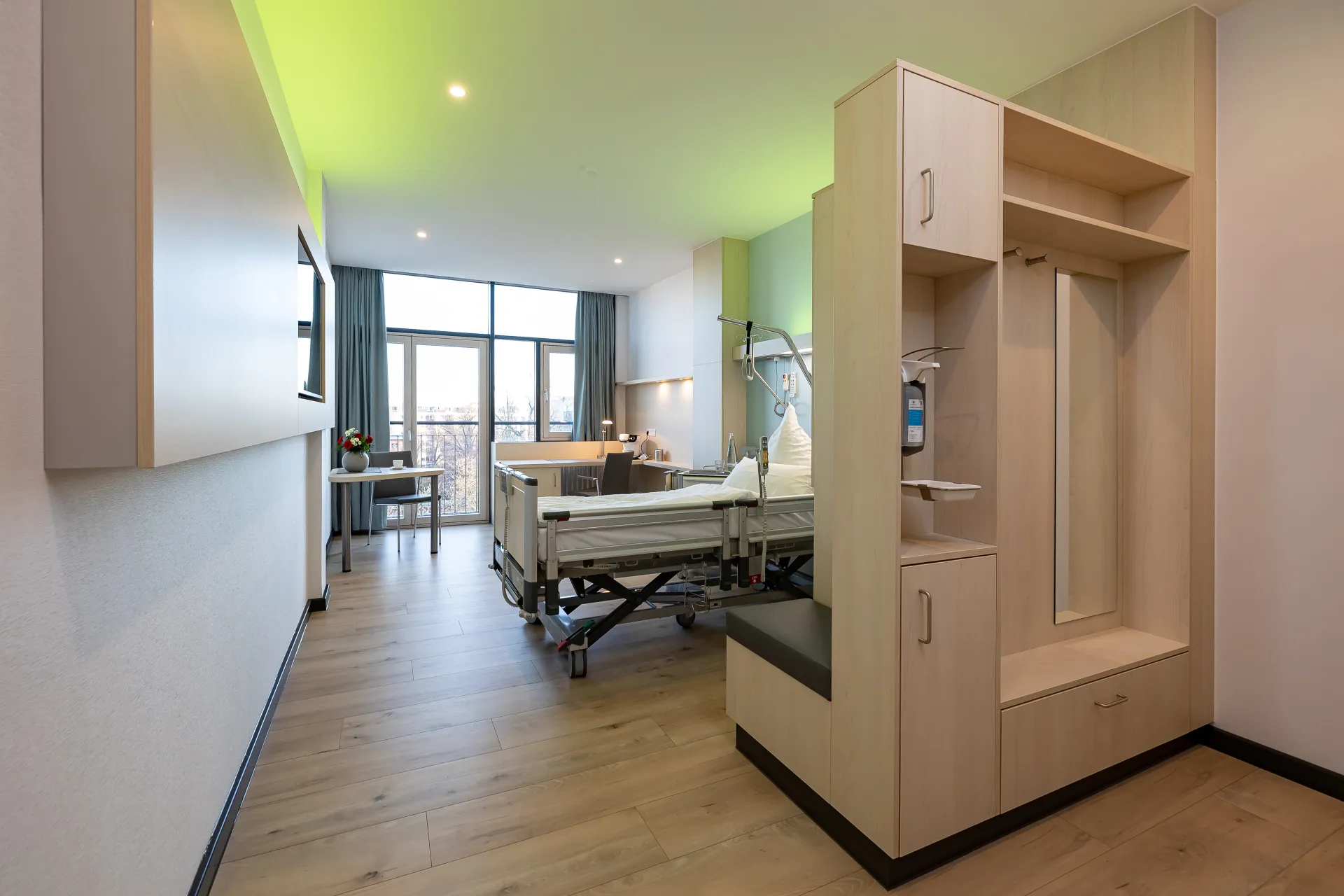

Modernly furnished patient room with a care bed, a bench seat, a cabinet and a large window with curtains

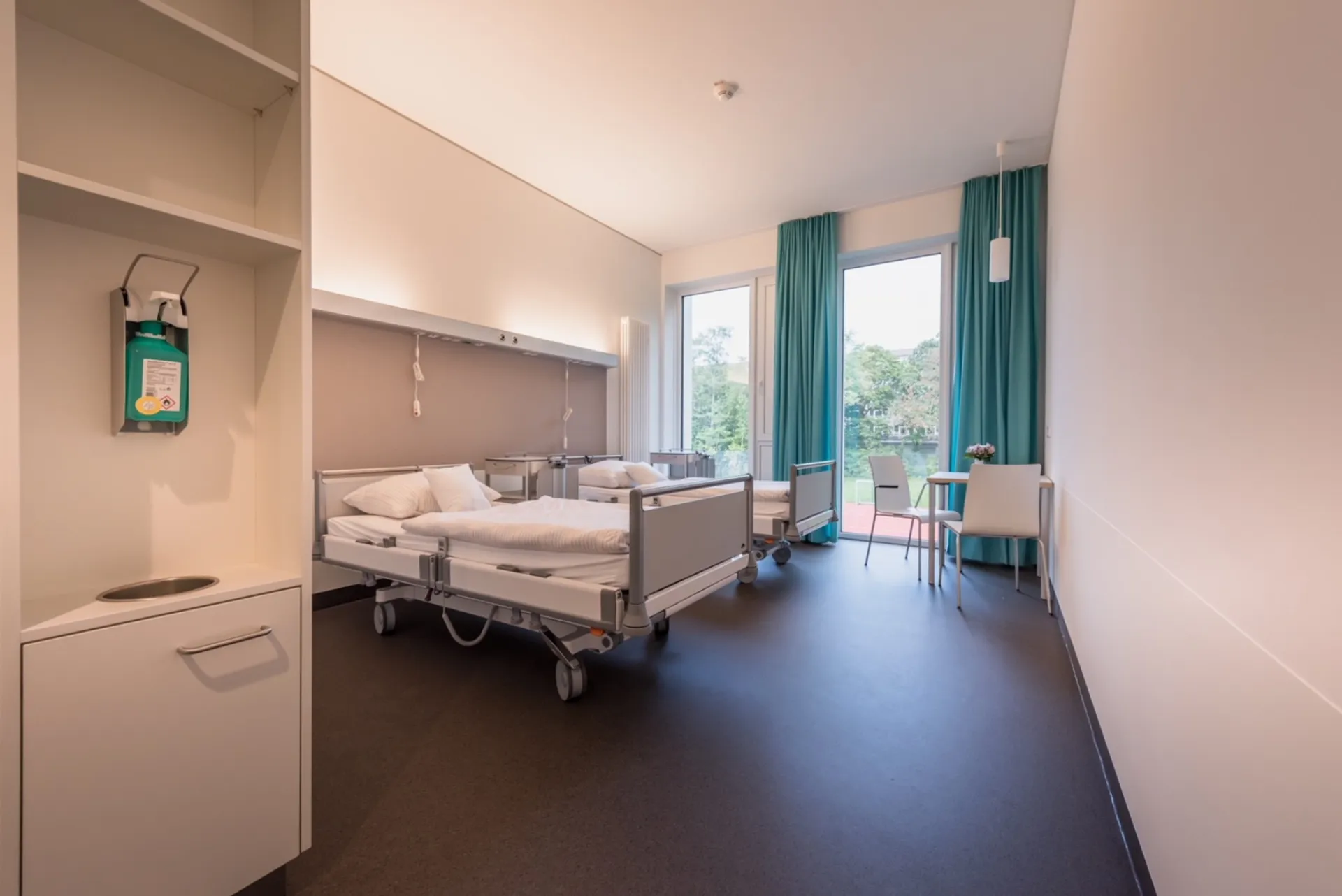

Hospital room with two beds, chairs and a large window with green curtains
High-quality details and robust materials.

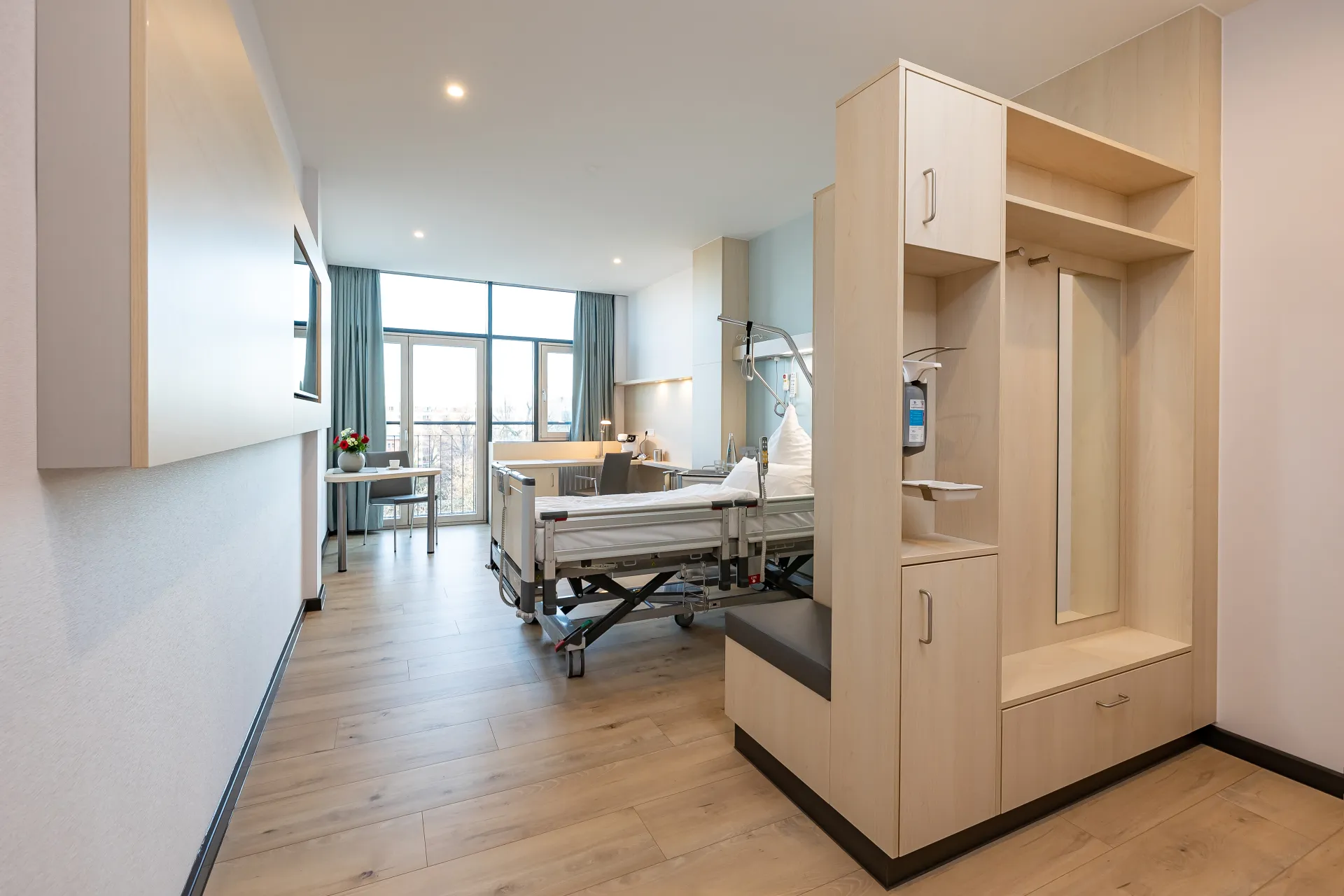

Modernly furnished patient room with a care bed, a window front, a desk and a wardrobe cabinet

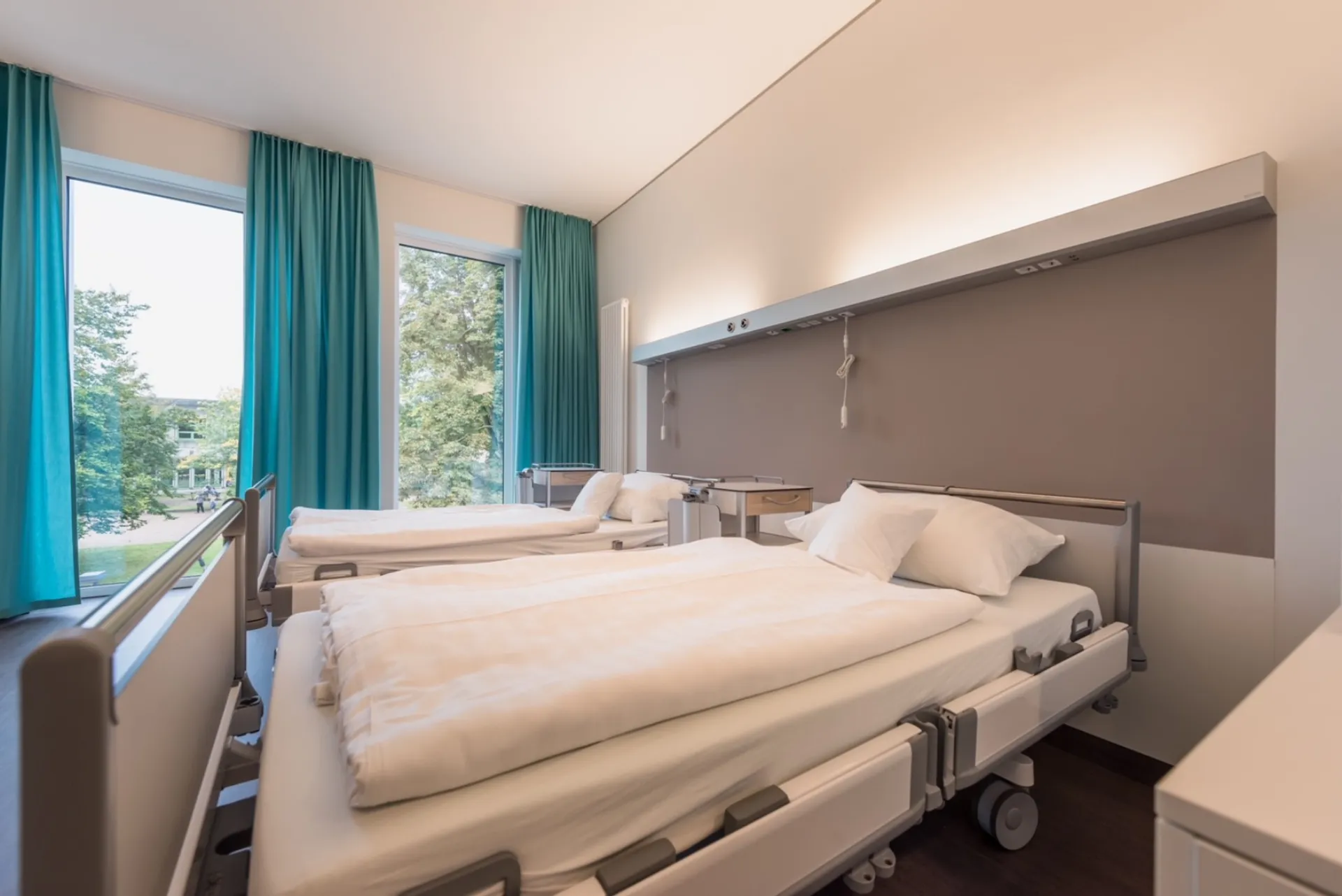

Two side-by-side hospital beds with white duvets in a bright room with large windows and green curtains
Hygienic, easy to maintain and technically state of the art.

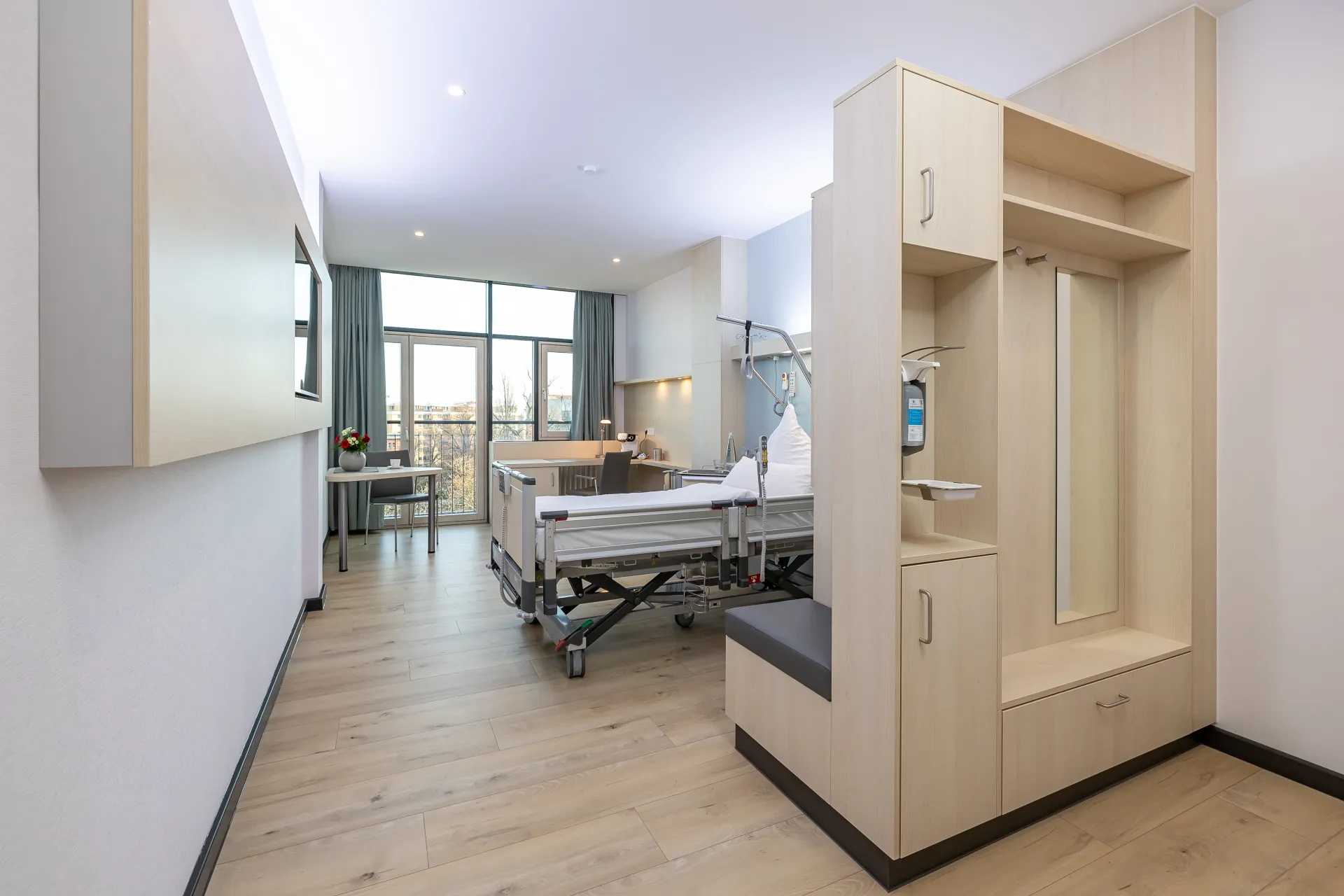

Bright patient room with a care bed, a bench seat, a coat rack and a large window with a view outside

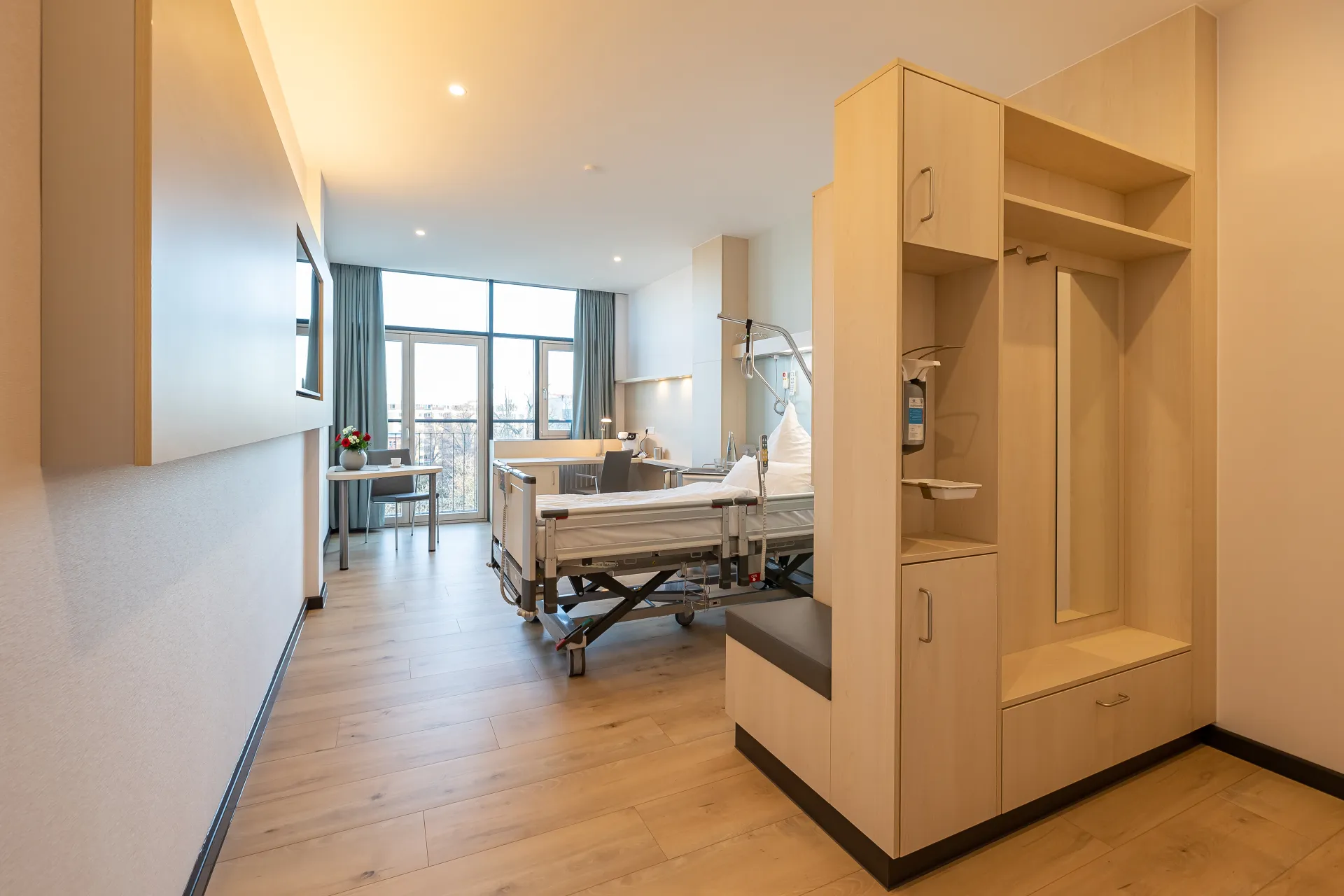

Bright patient room with a care bed, seating area, a large window with curtains, and an open wardrobe with a bench seat and shelves

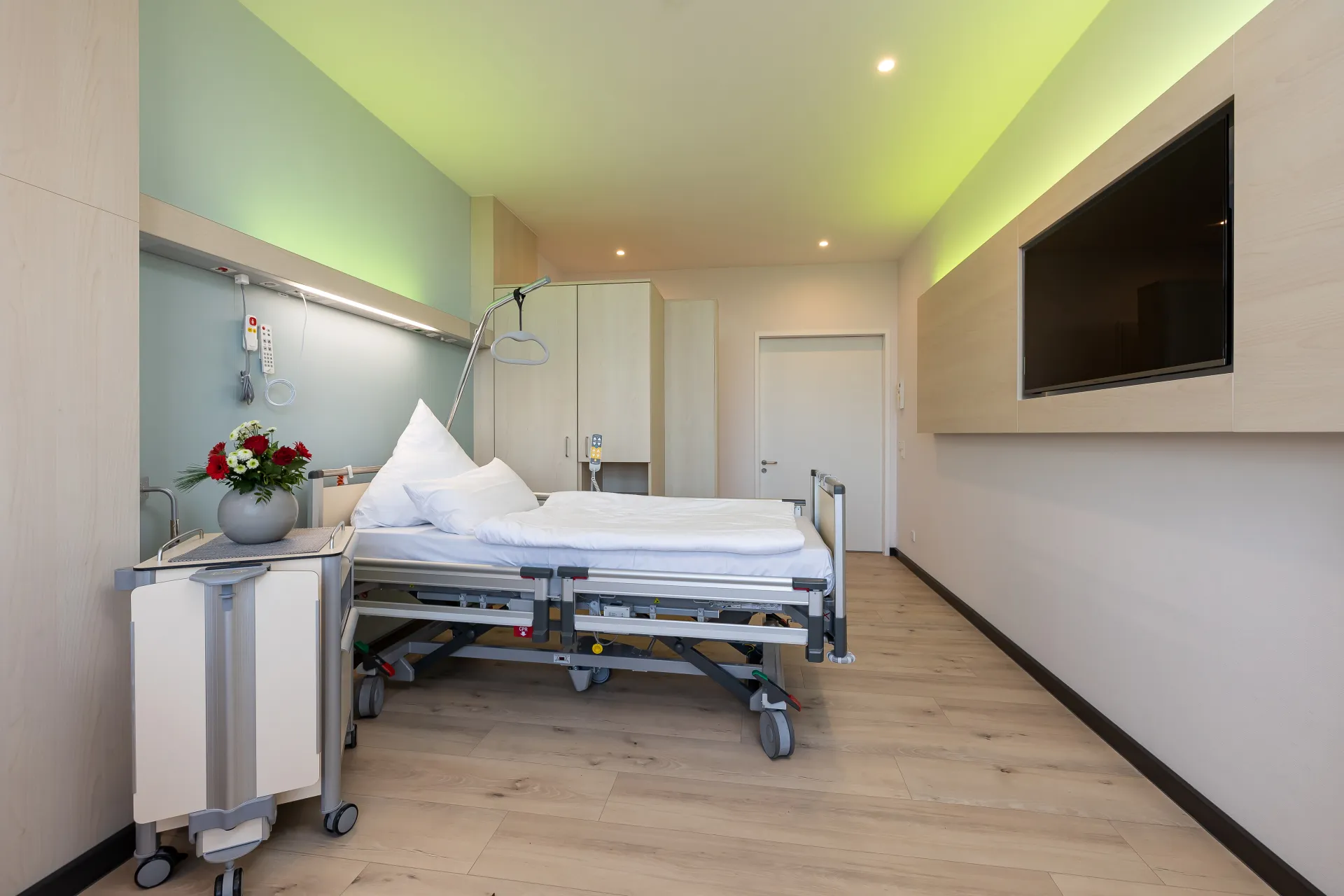

Hospital room with empty bed, bedside table with a flower vase and a large wall-mounted television

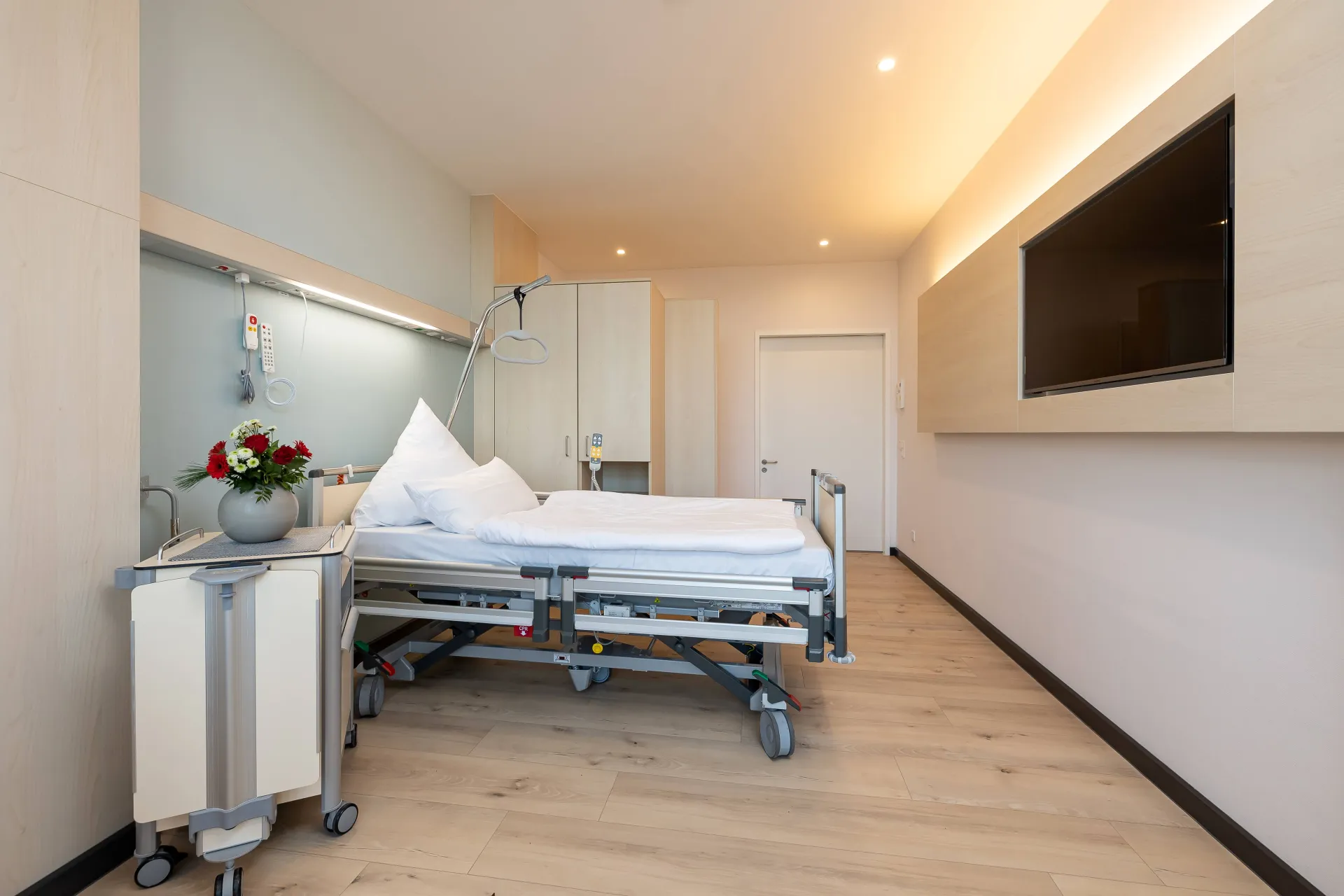

Hospital room with a bed, bedside table with a vase and flowers, a large wall-mounted television and a wooden floor

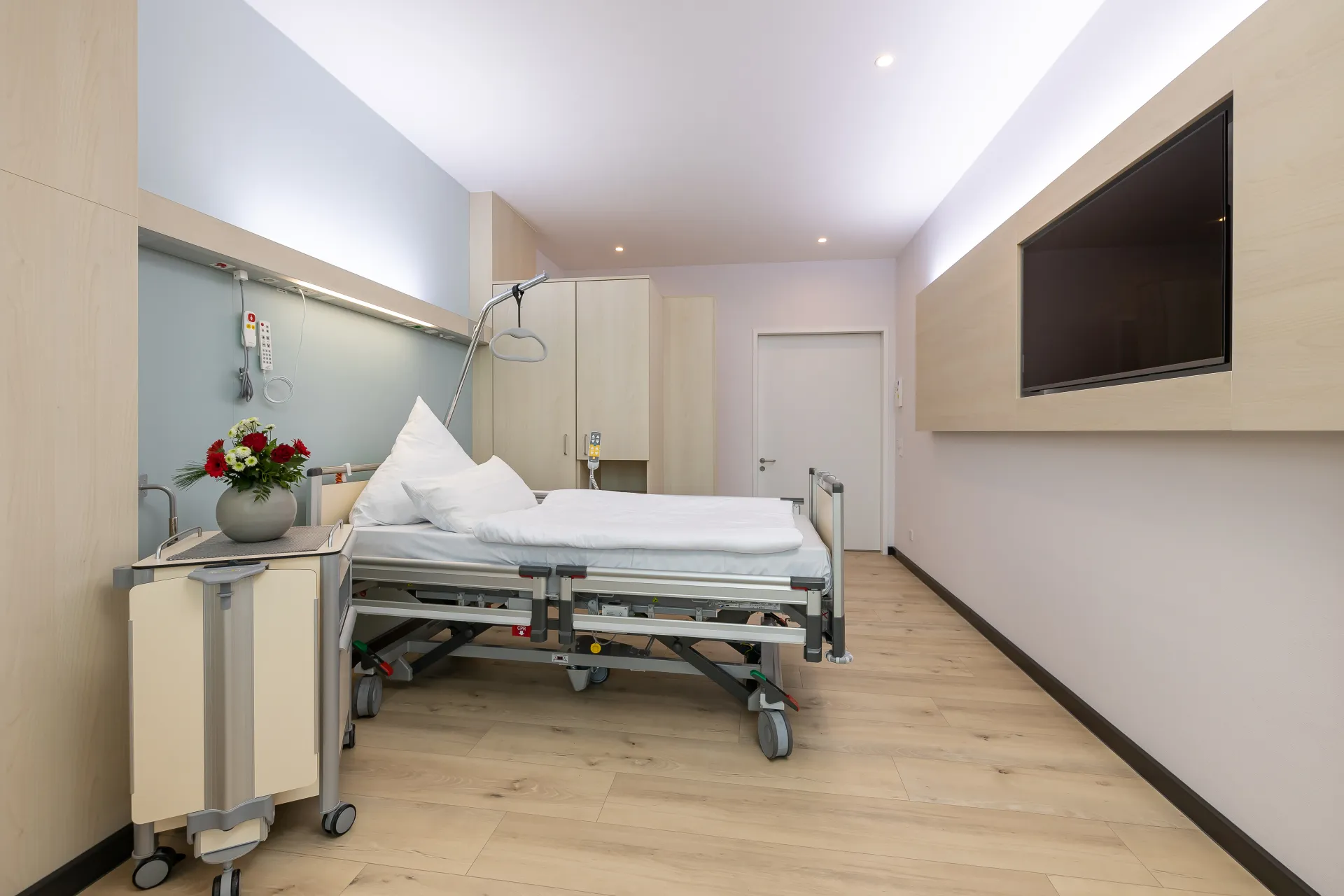

Hospital room with an empty bed, a bedside table with a vase and flowers, a large wall-mounted television and a wooden floor
Flexible arrangement of sockets, switches and connections for maximum functionality.

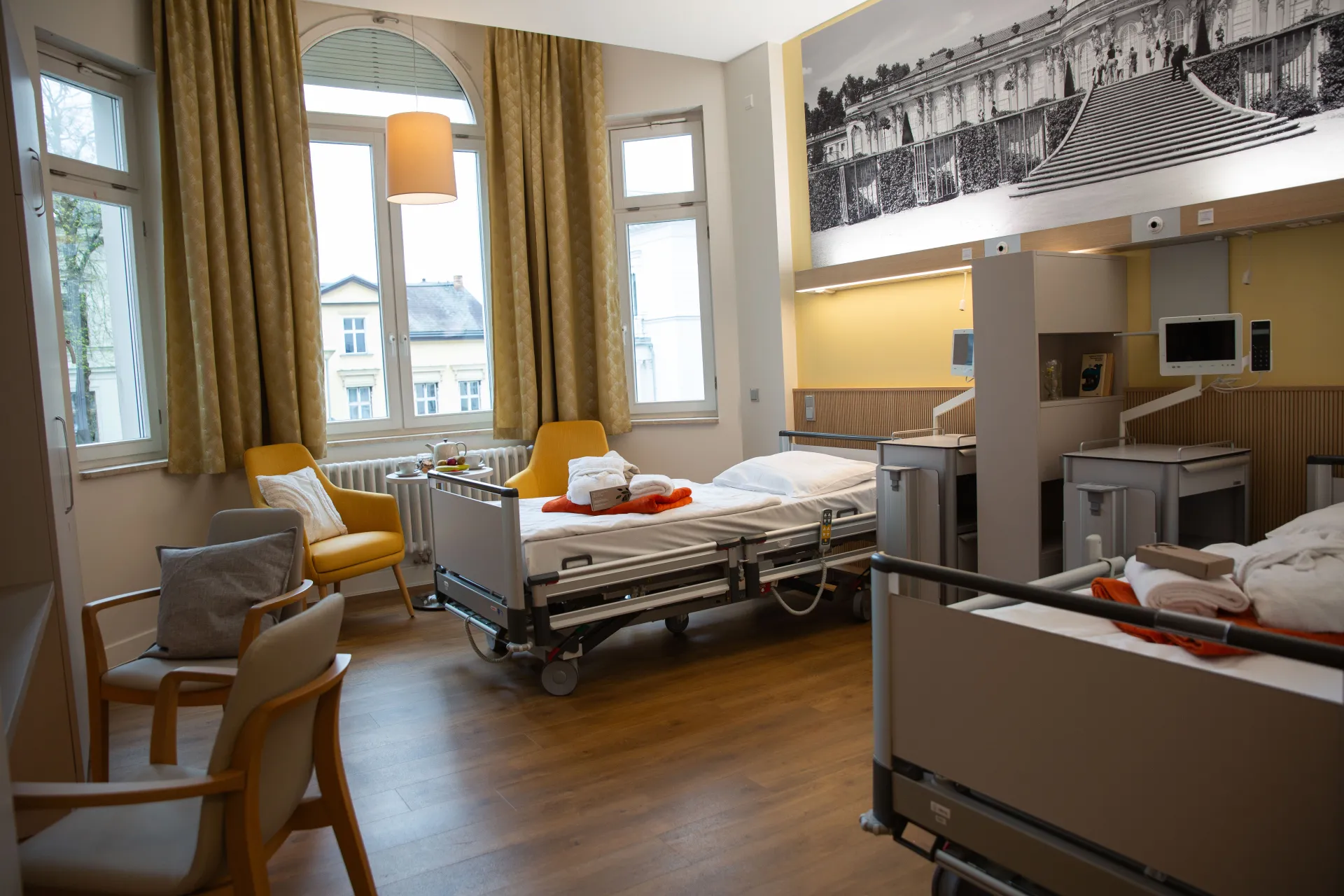

Two hospital beds in a bright patient room with large windows, yellow curtains and a wooden floor
Ideal for older buildings: classically integrable and individually adaptable in colour.

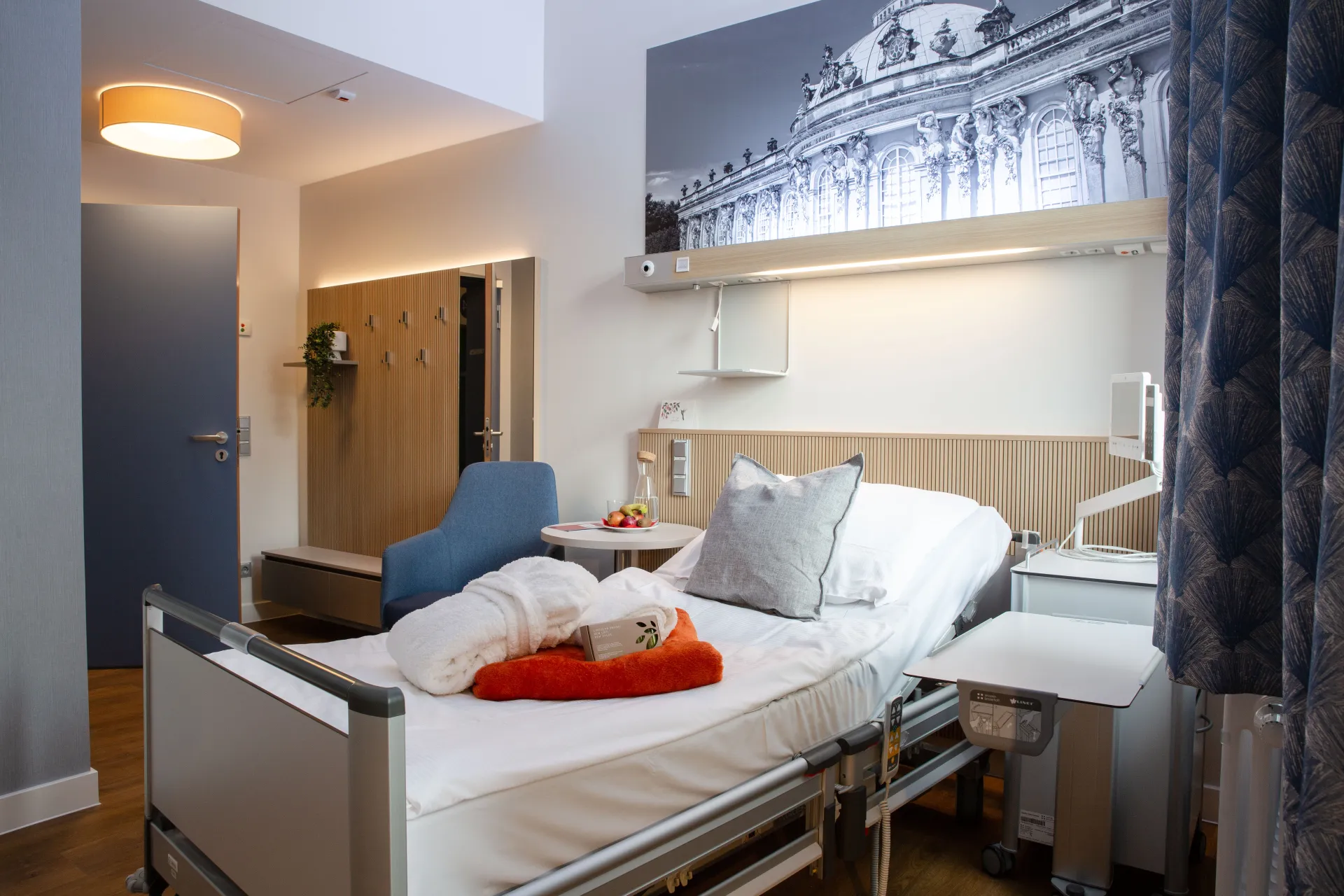

Hospital room with an adjustable bed, pillow, blanket, fruit bowl and a black-and-white photograph on the wall

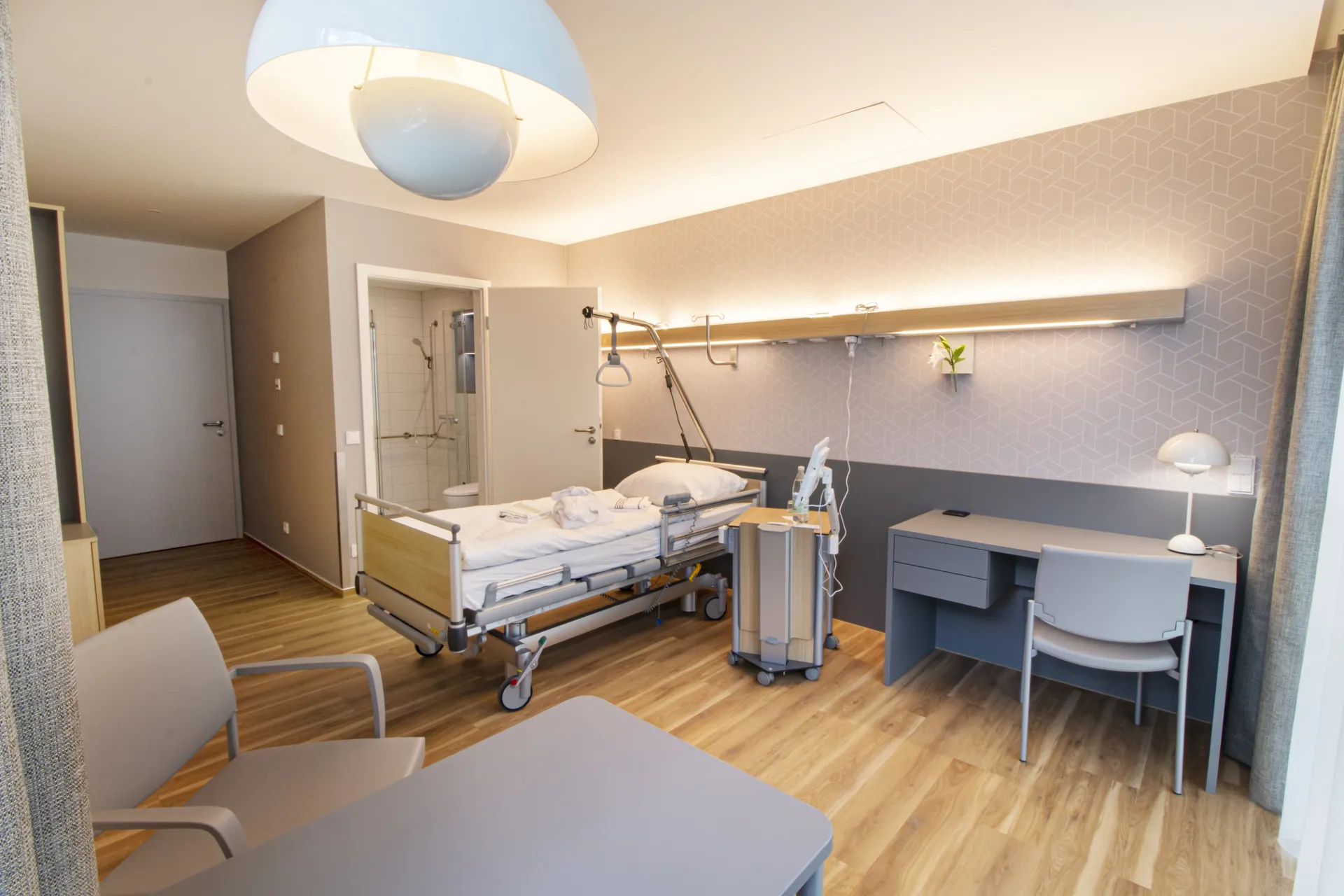

Modernly furnished patient room with hospital bed, desk, chairs and en-suite bathroom

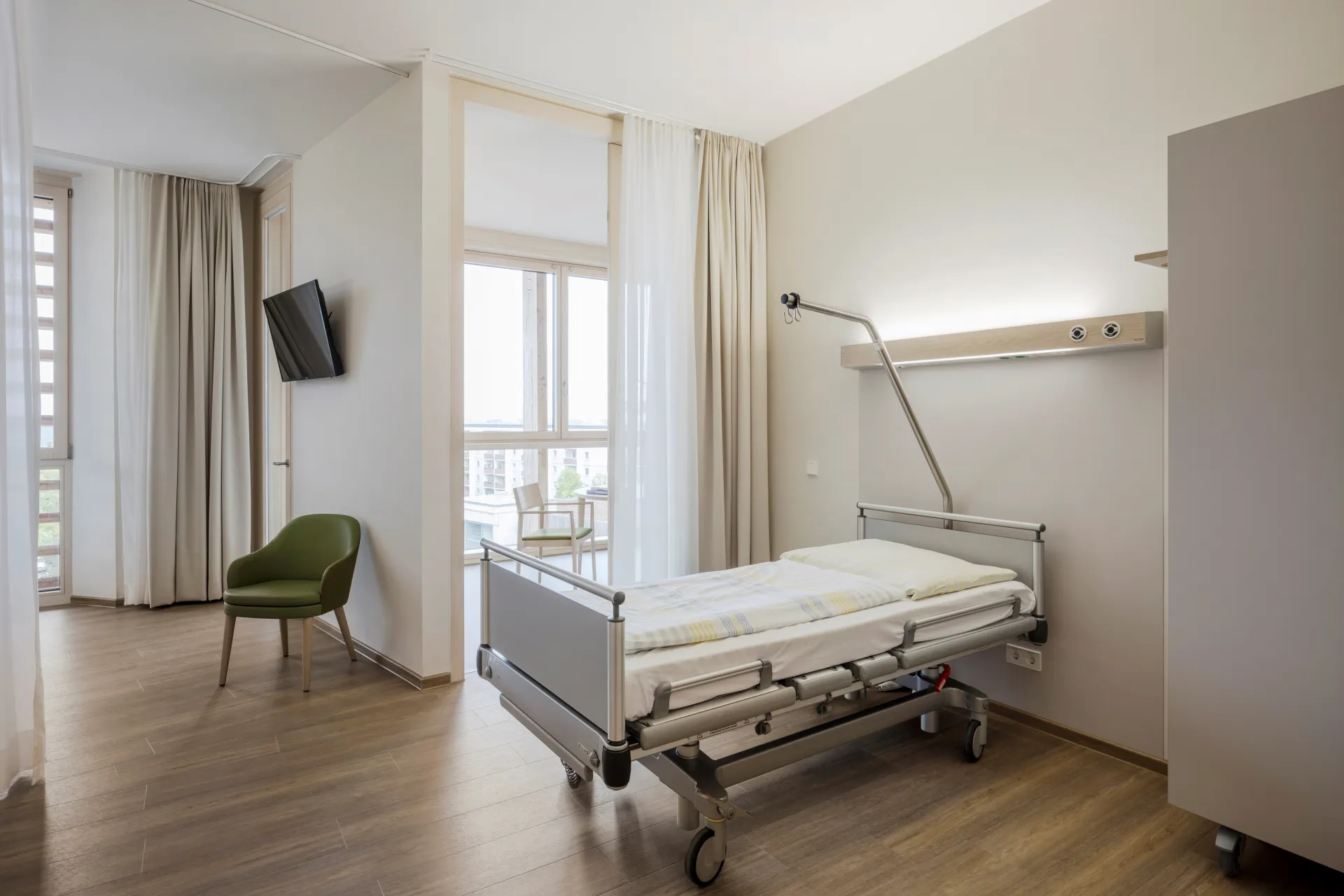

Hospital room with care bed, green chair, a window with a view of the city and a light wooden floor

Balanced Modernity

On the Schyns S700, the sockets, switches and other connections such as nurse call and communication technology can be arranged on the underside and on the front. The system-bound switch range used is especially broadly assorted and offers the right devices for almost every requirement. The medical gas outlets are arranged within easy reach on the front.

There are no obstructive projections anywhere around it that would restrict the usability of the plugs, flow meters and so on to be fitted. Inside, all the gas lines are screened off from the electrical area while remaining easily accessible in the event of maintenance. Easy cleaning and disinfection are ensured by the consistently flush installation of all parts.

Light Quality

On the upper side, the general lighting, angled into the room, illuminates the patient area and the room with a pleasant, glare-free light. Thanks to optimised lighting values and flexible control, the Schyns S700 is a reliable and adaptable solution. General lighting in LED technology is possible across the entire length.

Behind the continuous acrylic on the underside is the movable reading light in LED technology – optionally electronically movable, in order to respond flexibly to the room situation. Despite its low energy consumption, standard-compliant lighting of the reading level and the examination level is a matter of course. All Schyns lighting systems are optionally infinitely dimmable and support state-of-the-art lighting control via DALI / TouchDim.

Technical details

Material:

Extruded aluminium profile, naturally anodised, with recycled content.

Anodising:

Durable, abrasion- and UV-resistant natural anodising (standard); further anodising colours possible.

Front Design:

Front-facing HPL decors embedded, flush mounting possible (around 22,000 decors from all common manufacturers); other materials such as imitation glass are also possible.

Installations:

Flush-mounted on the underside and/or front with a standard switch range.

Maintenance:

System is maintenance-free.

Medical Accessories:

Schyns accessory groove integrated on the underside of the medical supply unit for the tool-free attachment of accessory elements, which can be moved without tools and adjusted infinitely.

Lighting:

General lighting 3,000 K / 4,000 K or Schyns Biologic Health Light 1,800 K to 16,000 K, adjustable reading light (mechanical / electronic), colour rendering CRI > 90; COI < 3.3, flicker-free, switchable, dimmable DALI or Casambi, examination light, extended examination light 500 lux.

Media Entry:

At the front face or rear.

Flexibility:

Free choice of colour, varying illuminance levels, free choice of length, optional integration of a media arm possible.

Hygiene:

Easy-to-clean surfaces with no surface-mounted components.

Dimensions:

See data sheet; overall length freely selectable up to 6,000 mm.

Add-Ons

Additional options for the S700

Our add-ons make every supply unit more functional, flexible, and well-thought-out. For anyone who wants to improve processes, optimize spaces, and fully utilize their potential.

Design begins with a system

We consider architecture and function together from the very beginning – with modular solutions that fit precisely into your room concepts.

Interior design based on the principles of healing architecture creates a supportive and soothing environment for staff and patients. More on the topic

Our contribution to a more humane healthcare system

healing architecture for all senses

We design spaces that provide tangible support to staff and patients.

A modern patient environment must offer more than just functionality.

As part of interior design, we are responsible for ensuring that technical equipment and architectural atmosphere form a harmonious whole. This approach has guided us for many years – as Alphonse Schyns once said: A hospital does not have to look like a hospital. This idea continues to influence our work today. Our products are developed in collaboration with our customers. This direct exchange ensures that every solution works in the everyday environment of clinics and care facilities: clear, robust, hygienic, and well thought-out exactly where it matters most.

Our work follows the principles of healing architecture. We design spaces that provide tangible support to staff and patients, promote calm, and facilitate processes. This is not a fashionable concept, but an approach that has proven itself over decades.

The multisensory approach—healing architecture for all senses—is a central component of this. Light, acoustics, materials, haptics, and intuitive orientation are specifically coordinated to reduce stress, create clarity, and generate a tangibly soothing environment. This creates an atmosphere that is both professional and relaxing.

Our supply units fit seamlessly into this overall concept as an important component: ergonomic, hygienically designed, and durable. They support staff in their daily work and provide patients with safety and orientation.

This is how we combine technical precision, many years of experience, and a clear design philosophy—and consistently think ahead to the patient rooms of the future.

Over 1,250 options for your individual solution

Brochure as PDF

The bespoke concept offers an enormous variety of design options. Combining the numerous categories and options creates over 1,250 different variations - depending on which elements you select and how they are combined. This number shows the range of individual configurations that allows you to tailor your solution exactly to your needs.
