With its elegant form and functional design, it sets new standards.

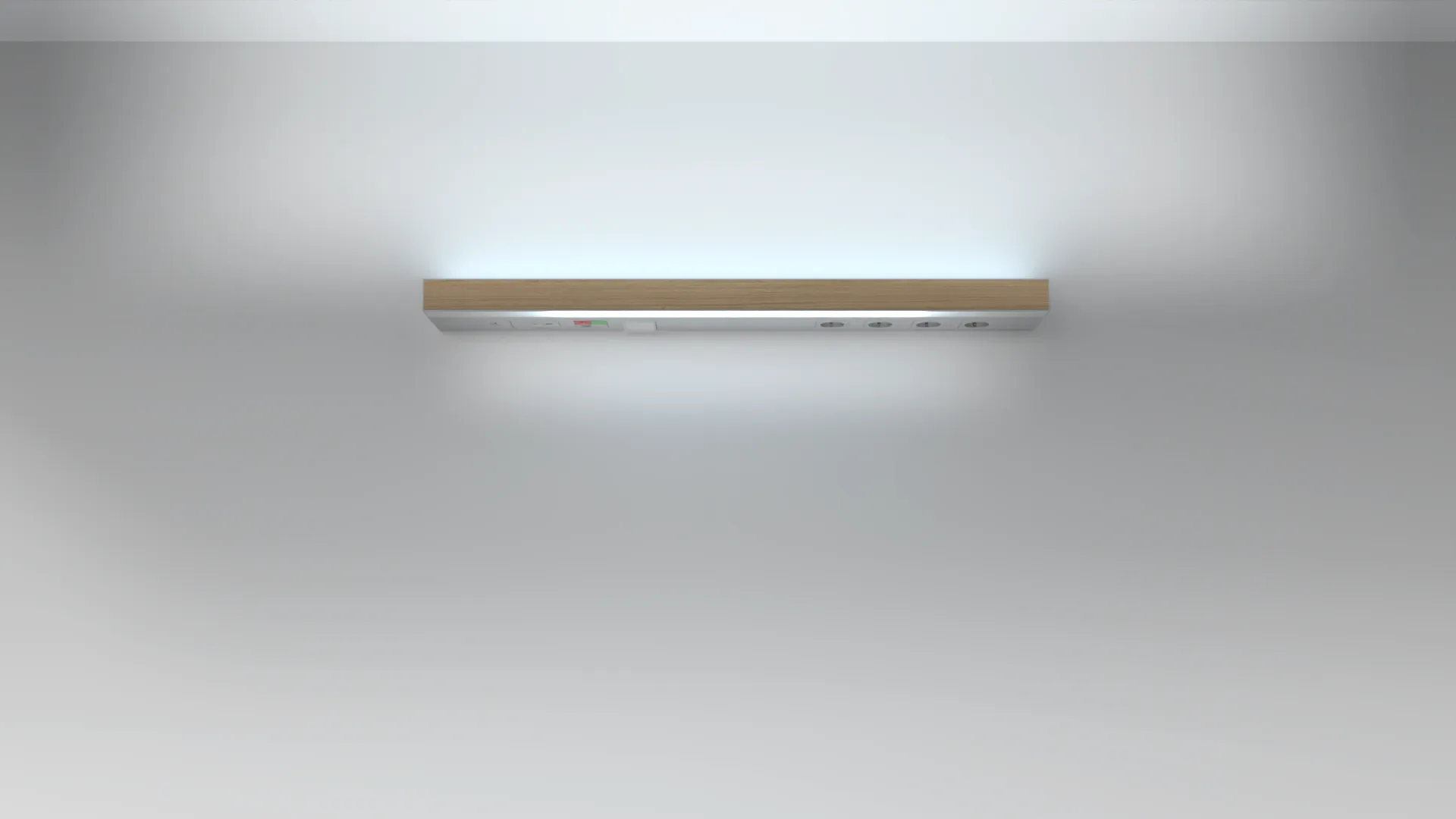

The S170 is ideally suited to applications in the field of Schyns Biologic Health Light. It provides pleasant, targeted lighting that supports the wellbeing of patients and care staff. The medical wall luminaire creates a welcoming atmosphere that can aid recovery while at the same time improving working conditions for care staff.
The front of the medical wall luminaire can be fitted with high-quality HPL or other materials that are not only aesthetically pleasing but also ensure high durability and ease of care. This makes the wall luminaire not only a functional element but also a stylish accent in any medical facility.
Another important aspect is ease of maintenance: in the event of a defect, the components can be removed quickly. The luminaire insert in particular can be removed easily by releasing the plug connection, enabling fast and uncomplicated servicing. The LED modules are designed to the Zhaga standard, which simplifies the procurement of replacements.

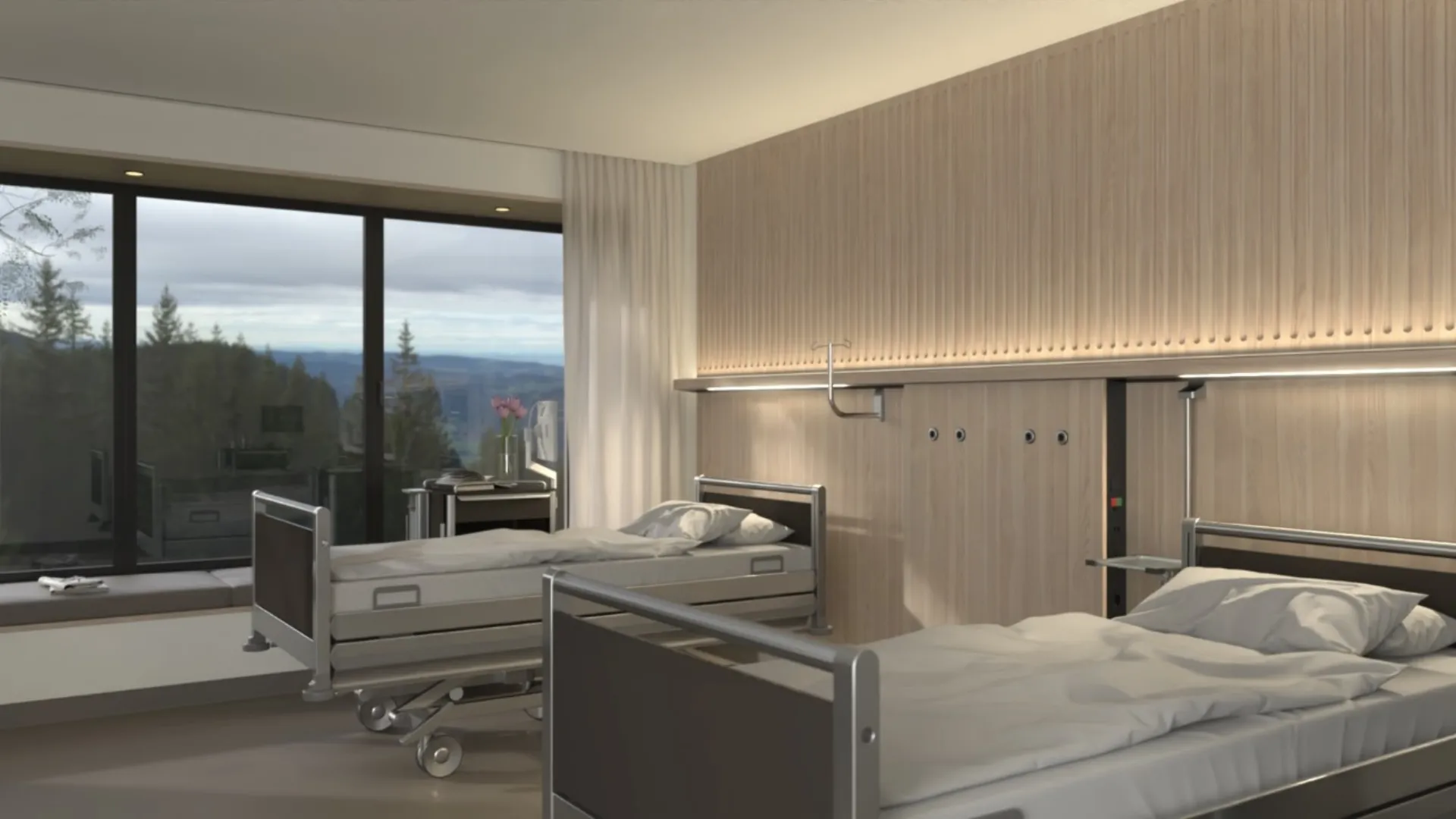

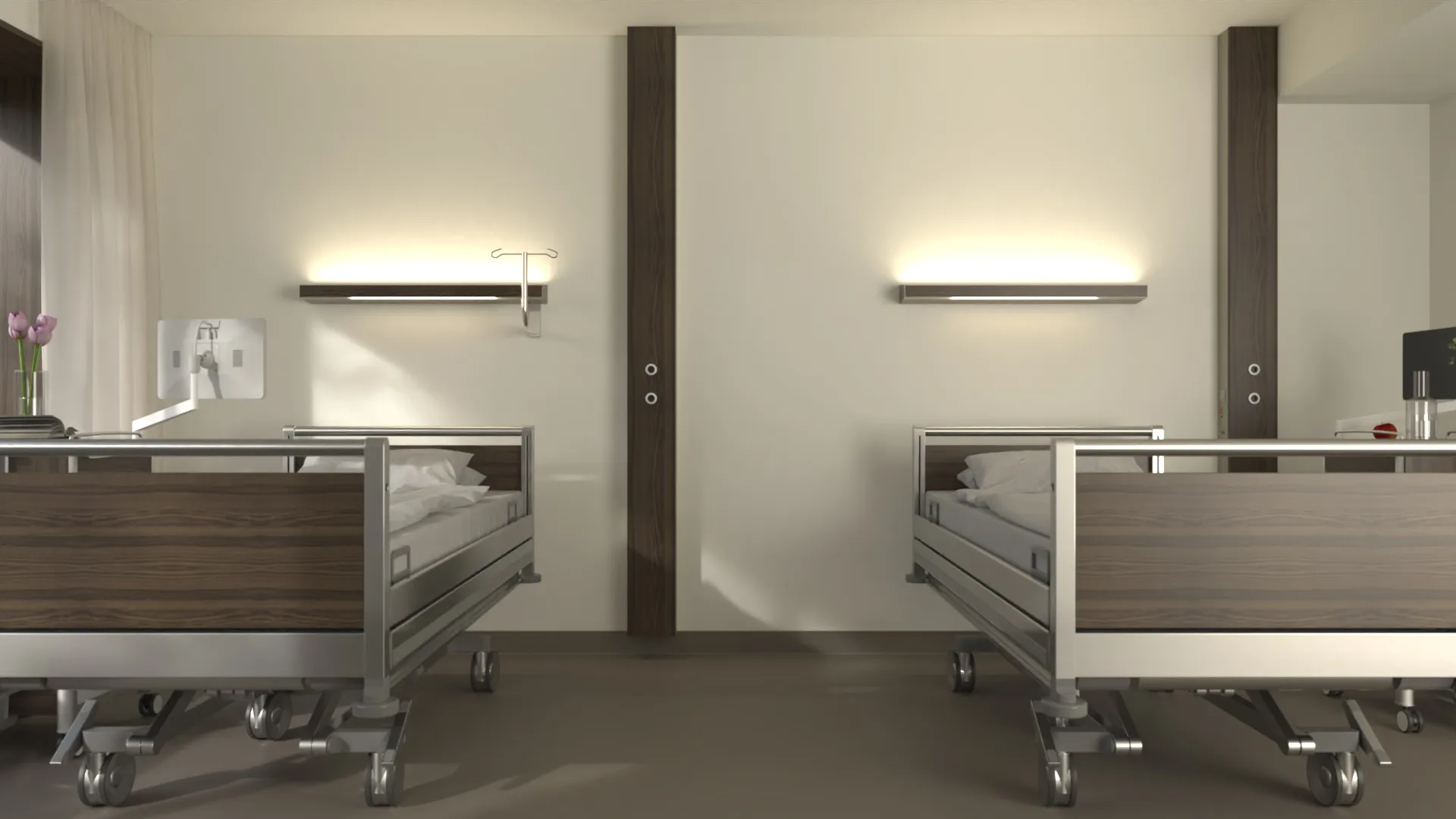

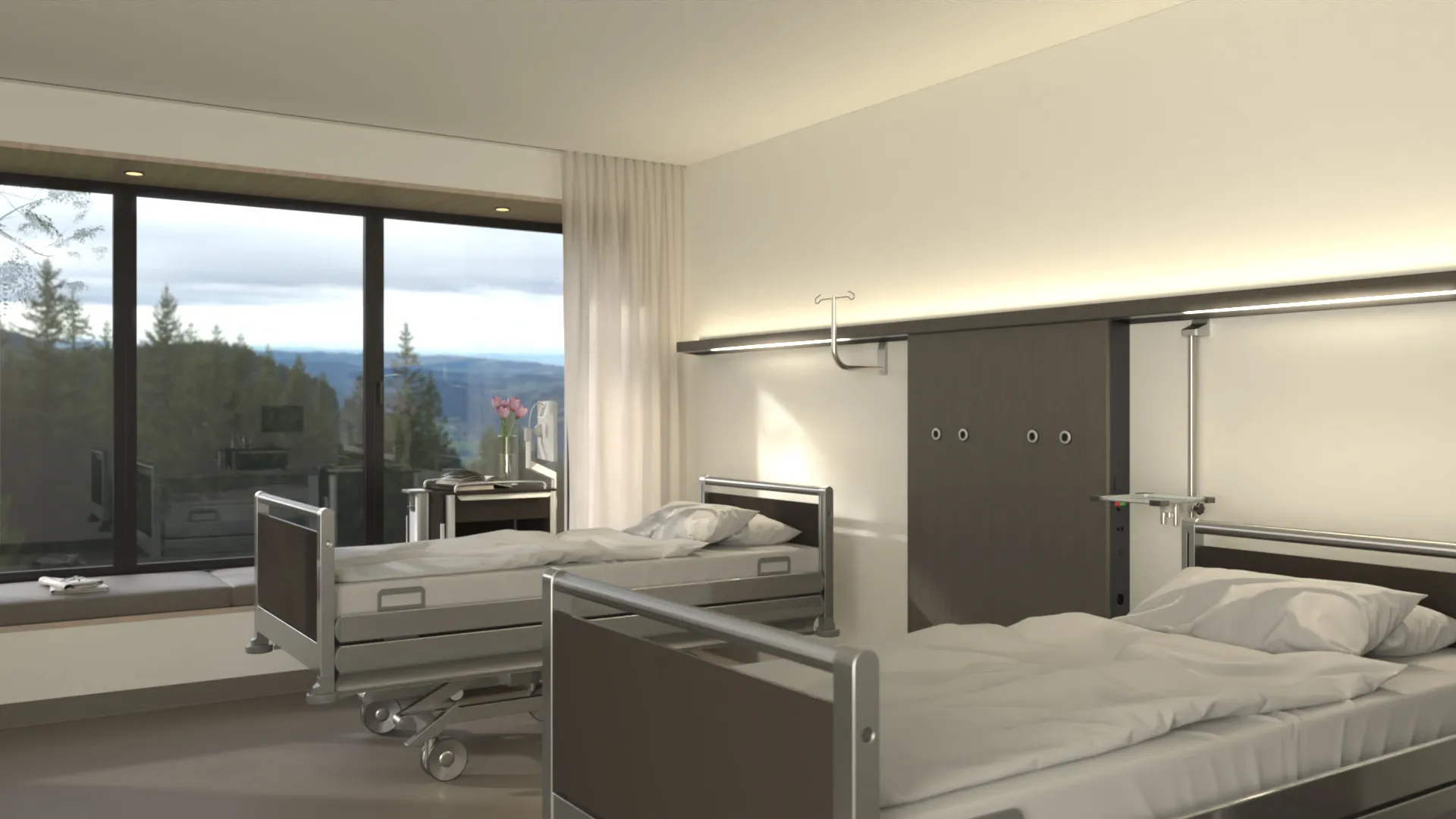

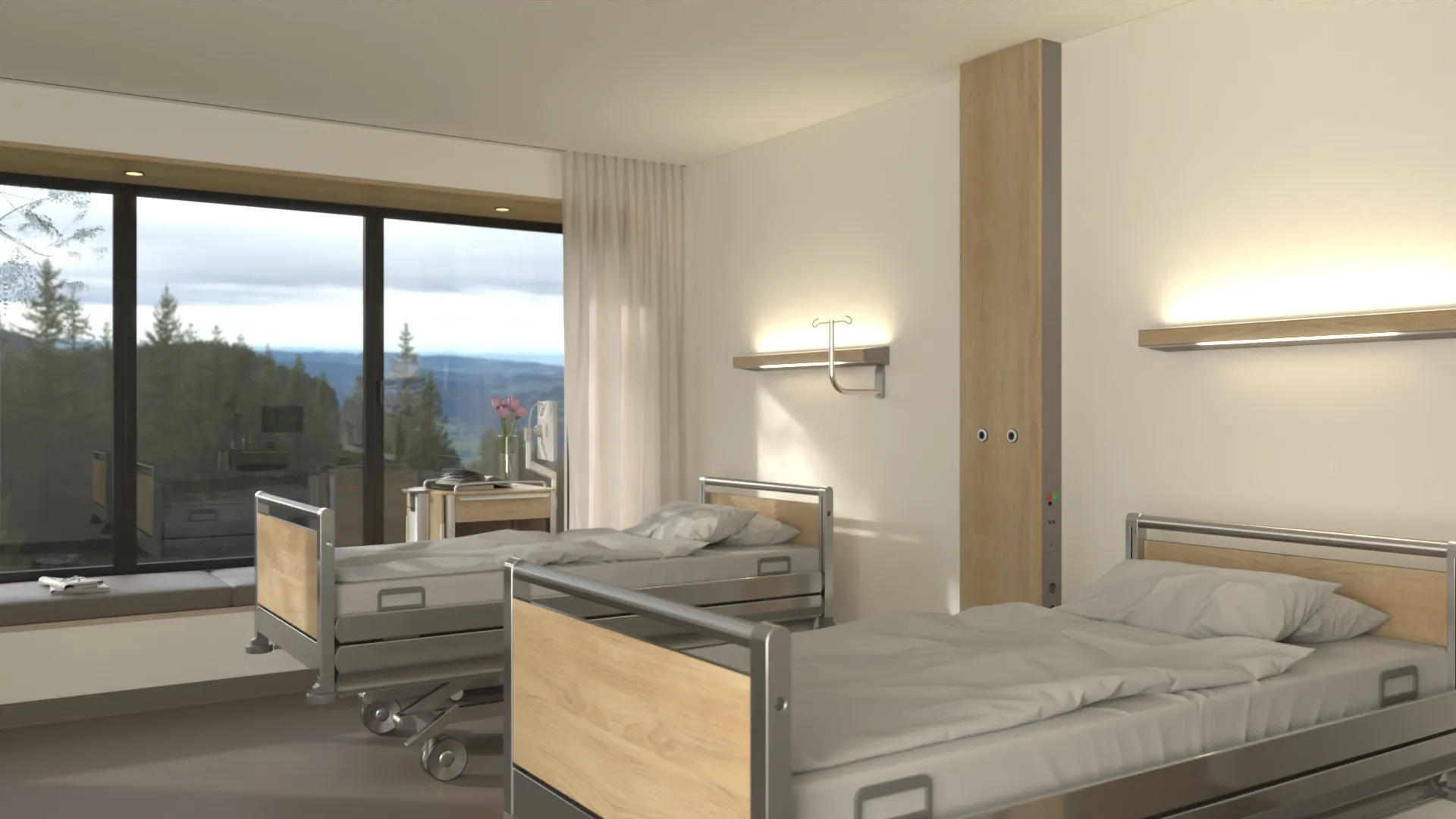

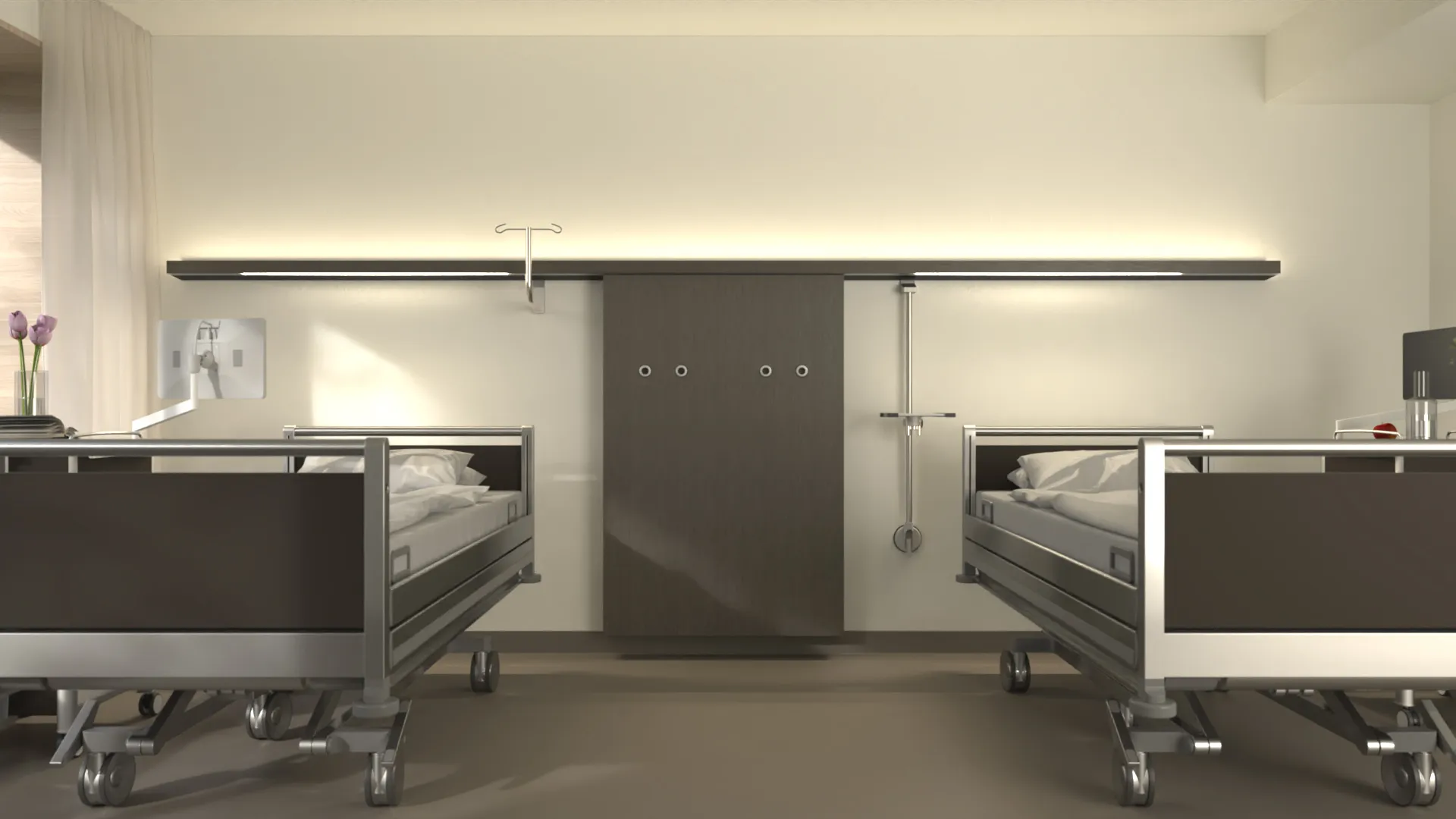

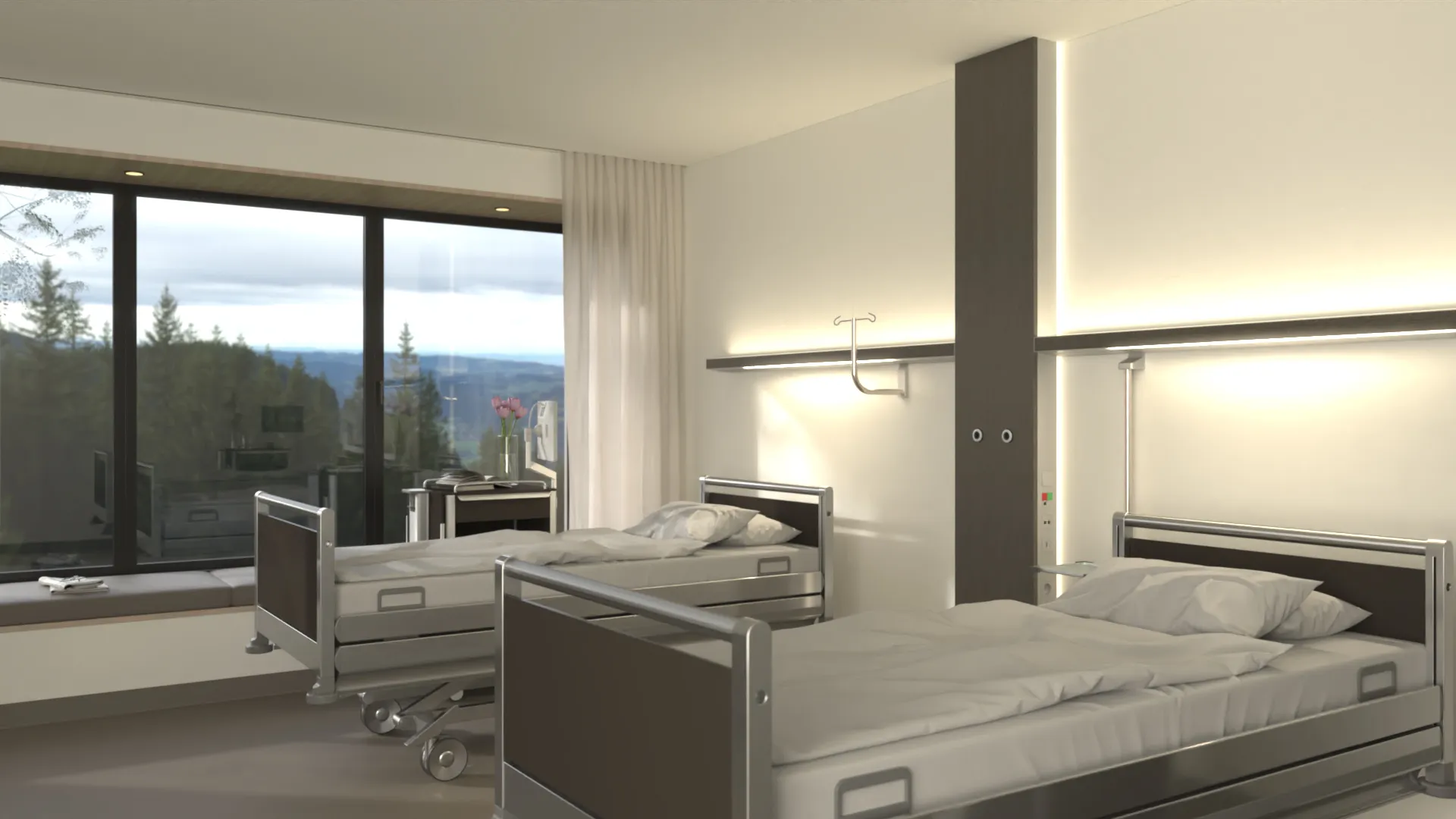

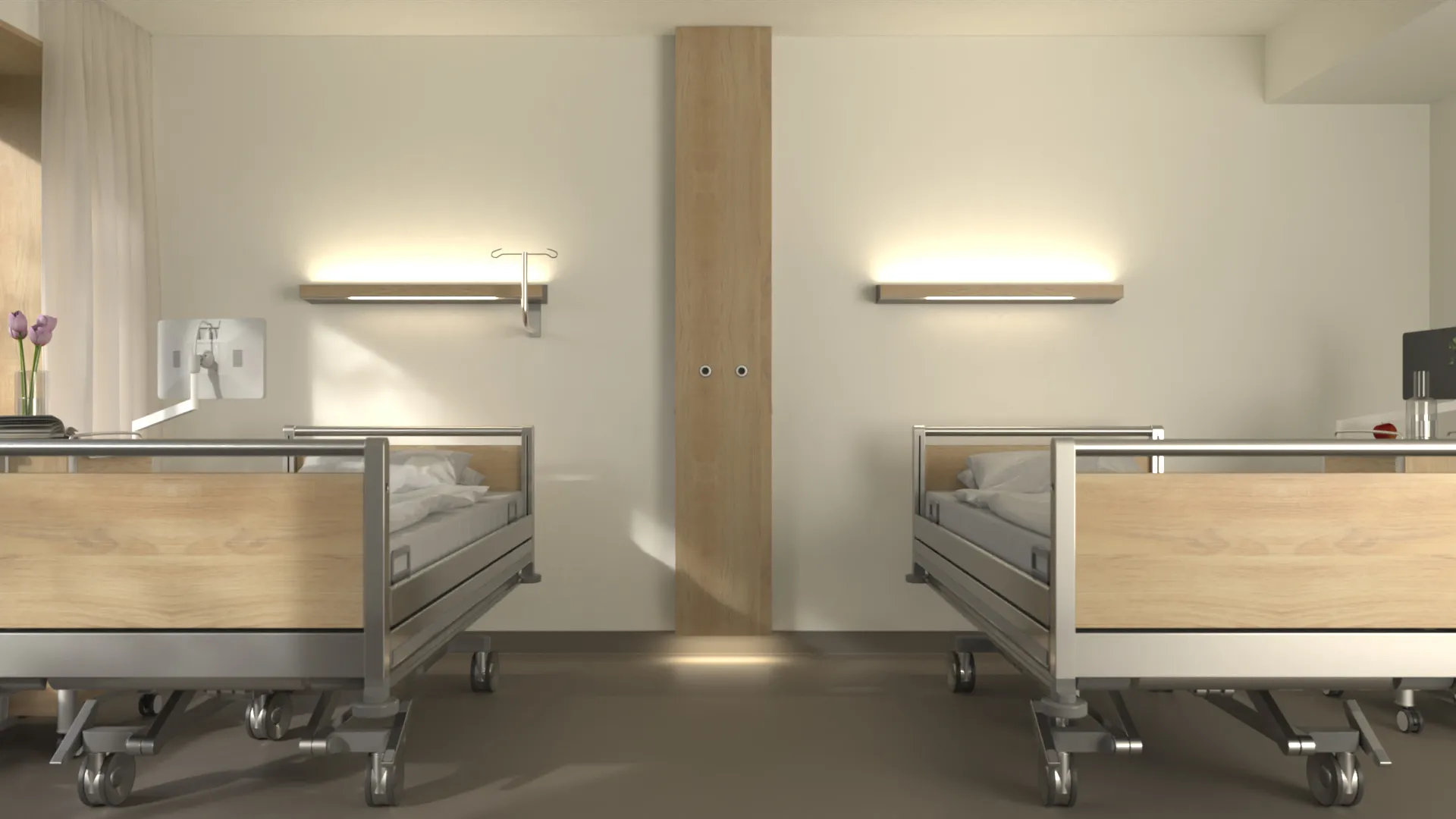

Application examples
Ergonomics in Focus
The S170 was developed with a clear focus on ergonomics and the specific needs of nursing staff, technical support and hygiene. Its well-conceived design allows intuitive handling that considerably eases the working day in care facilities and thus contributes to improved efficiency.
An outstanding feature of the S170 is the carefully considered 6° angle on the top and bottom, which makes it easy to locate built-in components such as sockets and switches. This proven design not only enhances ease of use but also makes a decisive contribution to safety and efficiency in care.
Nursing staff and patients benefit equally from the intuitive handling and the optimum light distribution. Any medical accessories required can be deployed quickly and easily.
In addition, the built-in components are integrated flush, which makes cleaning considerably easier and thus supports the highest hygiene standards. All the criteria for good hygiene in the care room were incorporated into the development.
Light with Practical Standards
With Schyns Biologic Health Light, the S170 medical wall luminaire sets new standards in dynamic lighting and offers an optimal solution for modern care facilities. With the option of fitting the LEDs in different configurations (Schyns Biologic Health Light and fixed white possible), the S170 can be flexibly adapted to the individual requirements of the room and provides an even and pleasant distribution of light.
With a width of 900 mm, the integrated glare-free reading light is particularly generously dimensioned and provides targeted and pleasant lighting for reading areas or for the examination area. The S170 can likewise be equipped with the electronically adjustable reading-light function. This function supports not only the needs of patients but also those of the care staff by creating a functional lighting environment. The reading light can additionally be fitted with atmospheric ambient lighting.
A practice-oriented feature of the S170 is its high colour rendering index (CRI) of over 90. This is especially important in medical environments, where precise colour recognition is decisive for diagnoses and treatments. The recommended COI limit (Cyanosis Observation Index) is also complied with, ensuring good visual diagnostics as well.
Technical details
Material:
Extruded aluminium profile, naturally anodised with recycled content; HPL-coated chipboard.
Anodising:
Durable, abrasion- and UV-resistant natural anodising (standard); further anodising colours possible.
Front Design:
Flush-front HPL decor (around 22,000 decors from all common manufacturers); other materials such as imitation glass are also possible.
Installations:
Available flush-mounted on the underside with a standard switch range.
Maintenance:
System is maintenance-free.
Medical Accessories:

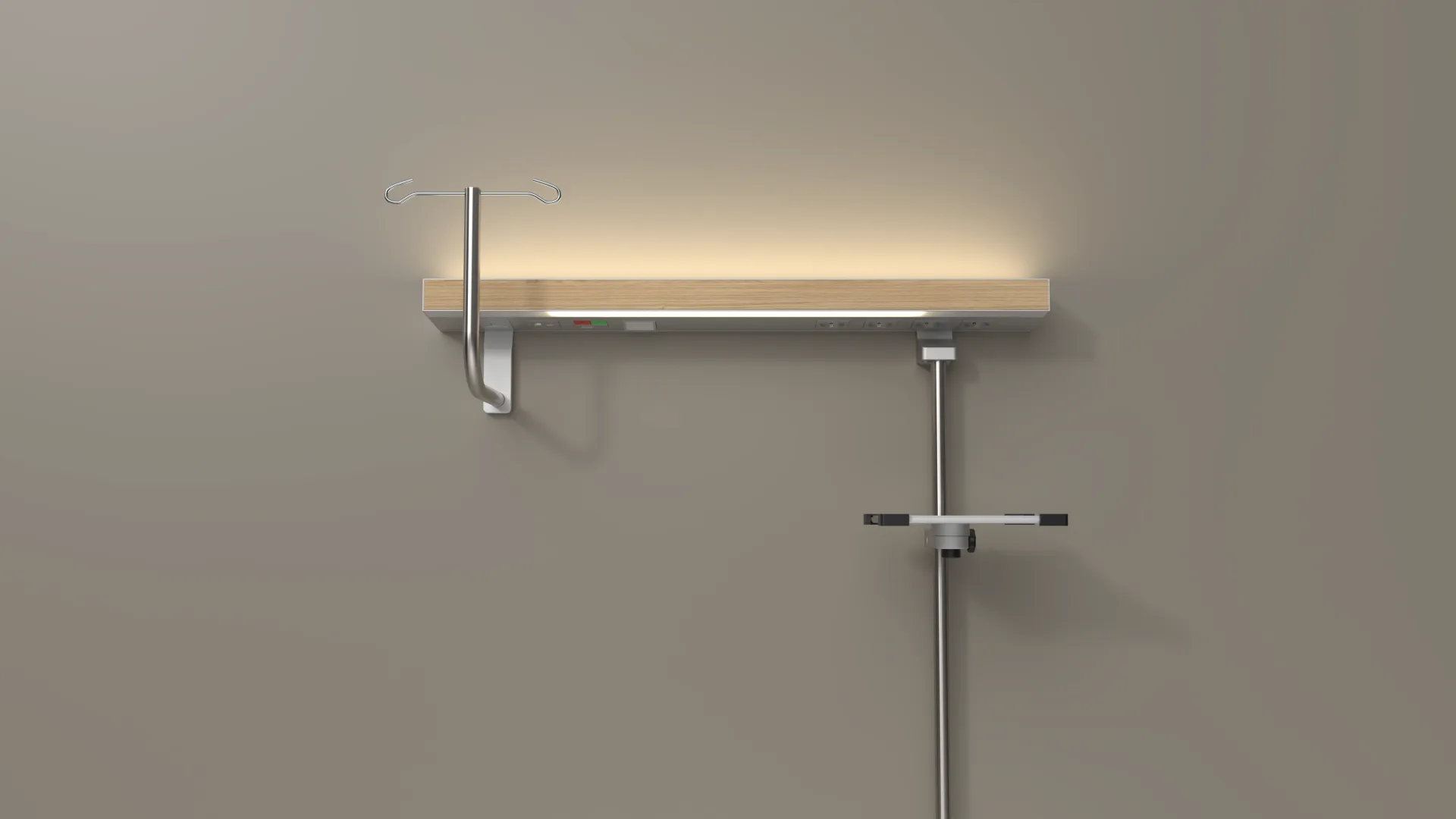

Schyns accessory groove integrated on the underside of the medical wall luminaire for the tool-free mounting of accessory elements, which can be shifted continuously and without tools.
Lighting:
General lighting 3,000 K / 4,000 K or Schyns Biologic Health Light 1,800 K to 16,000 K, sliding reading light (mechanical / electronic), colour rendering CRI > 90; COI < 3.3, flicker-free, switchable, dimmable via DALI or Casambi, examination light, extended examination light 500 lux. Ambient light option.
Efficiency:
See data sheet.
Media Entry:
At the front face or rear.
Flexibility:
Free choice of colour, different lighting intensities possible.
Hygiene:
Easy-to-clean surfaces with no surface-mounted components.
Dimensions:
See data sheet; overall length freely selectable up to 6,000 mm.
Add-Ons
Additional options for the S170
Our add-ons make every supply unit more functional, flexible, and well-thought-out. For anyone who wants to improve processes, optimize spaces, and fully utilize their potential.
Our contribution to a more humane healthcare system
healing architecture for all senses
We design spaces that provide tangible support to staff and patients.
A modern patient environment must offer more than just functionality.
As part of interior design, we are responsible for ensuring that technical equipment and architectural atmosphere form a harmonious whole. This approach has guided us for many years – as Alphonse Schyns once said: A hospital does not have to look like a hospital. This idea continues to influence our work today. Our products are developed in collaboration with our customers. This direct exchange ensures that every solution works in the everyday environment of clinics and care facilities: clear, robust, hygienic, and well thought-out exactly where it matters most.
Our work follows the principles of healing architecture. We design spaces that provide tangible support to staff and patients, promote calm, and facilitate processes. This is not a fashionable concept, but an approach that has proven itself over decades.
The multisensory approach—healing architecture for all senses—is a central component of this. Light, acoustics, materials, haptics, and intuitive orientation are specifically coordinated to reduce stress, create clarity, and generate a tangibly soothing environment. This creates an atmosphere that is both professional and relaxing.
Our supply units fit seamlessly into this overall concept as an important component: ergonomic, hygienically designed, and durable. They support staff in their daily work and provide patients with safety and orientation.
This is how we combine technical precision, many years of experience, and a clear design philosophy—and consistently think ahead to the patient rooms of the future.
Over 1,250 options for your individual solution
Brochure as PDFThe bespoke concept offers an enormous variety of design options. Combining the numerous categories and options creates over 1,250 different variations - depending on which elements you select and how they are combined. This number shows the range of individual configurations that allows you to tailor your solution exactly to your needs.
